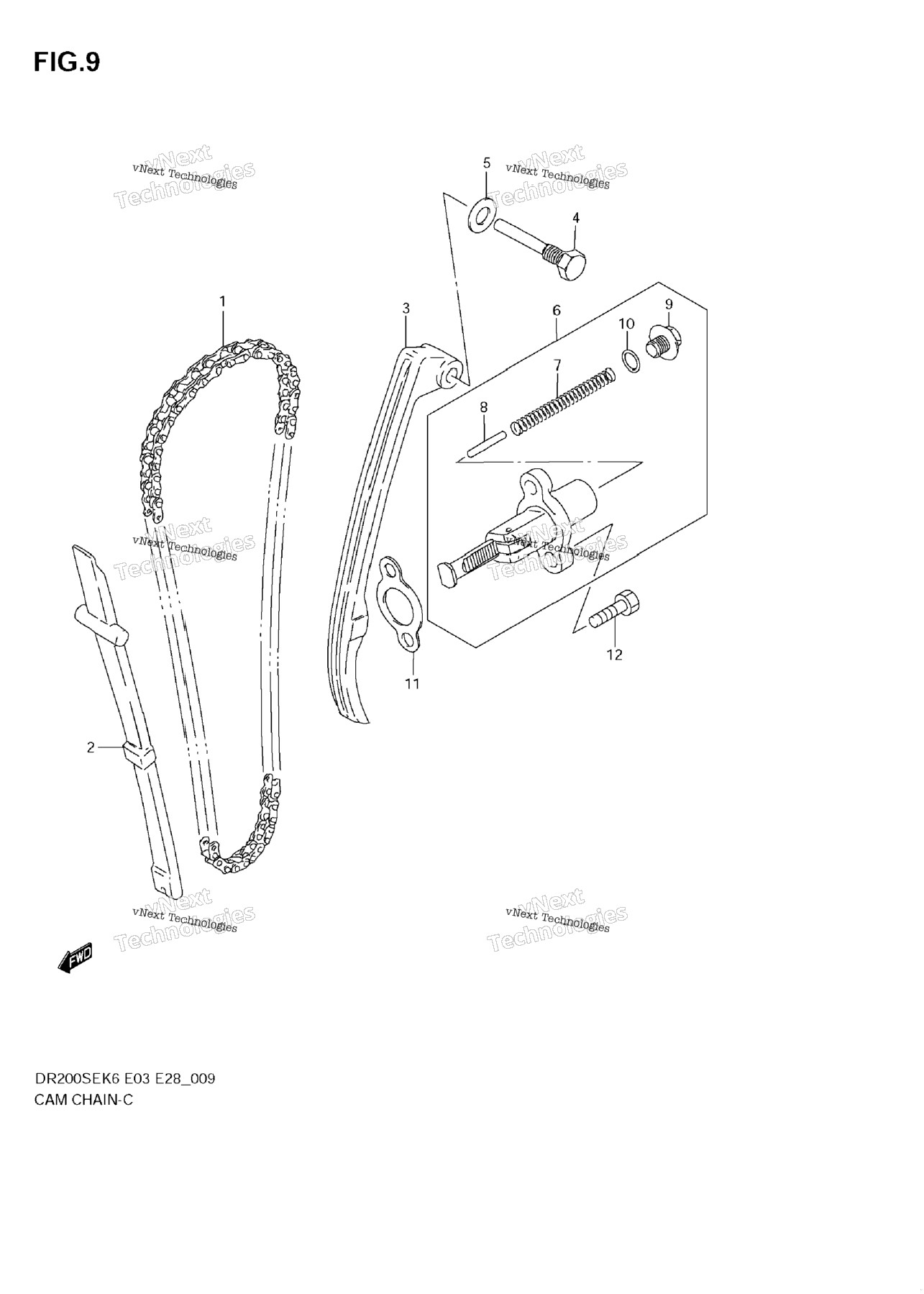

| 1 | 12760-42A00 | CHAIN, CAM SHAFT DRIVE | 1 шт. | — | |
|
| 2 | 12771-18A00 | GUIDE, CAM CHAIN | 1 шт. | — | |
|
| 3 | 12811-18A01 | TENSIONER, CAM CHAIN | 1 шт. | — | |
|
| 4 | 12812-32410 | BOLT, CAM CHAIN TENSIONER | 1 шт. | — | |
|
| 5 | 09168-08016 | GASKET (8.2X14X1) | 1 шт. | — | |
|
| 6 | 12830-19B02 | ADJUSTER ASSY,TENSIONER Includes Item(s) 7 - 10 | 1 шт. | — | |
|
| 7 | 12833-19B00 | SPRING | 1 шт. | — | |
|
| 8 | 12835-19B00 | BAR | 1 шт. | — | |
|
| 9 | 12834-19B00 | PLUG | 1 шт. | — | |
|
| 10 | 12832-02A00 | O RING | 1 шт. | — | |
|
| 11 | 12837-19B10 | .GASKET,TENSIONER ADJUSTER | 1 шт. | — | |
|
| 12 | 01500-0620B | BOLT | 2 шт. | — | |
|
