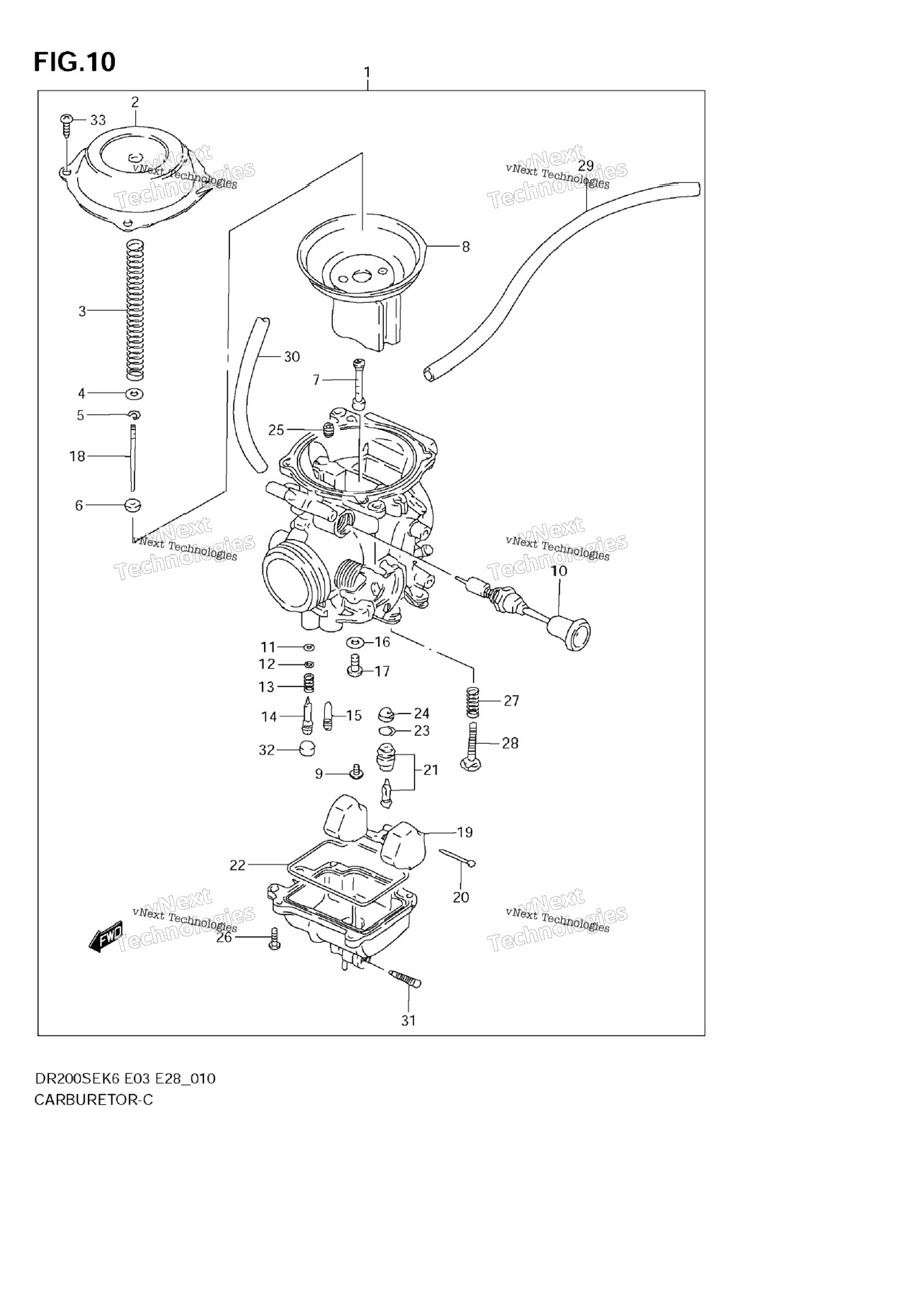

| 1 | 13200-42AE1 | CARBURETOR ASSY E33; Includes Item(s) 2 - 33 | 1 шт. | — | |
|
| 1 | 13200-42AC1 | CARBURETOR ASSY E3,E28 | 1 шт. | — | |
|
| 2 | 13502-42A00 | COVER | 1 шт. | — | |
|
| 3 | 13417-42A00 | SPRING | 1 шт. | — | |
|
| 4 | 13382-42A00 | RING | 1 шт. | — | |
|
| 5 | 13394-10010 | CLIP, NEEDLE | 1 шт. | — | |
|
| 6 | 13387-47010 | RING | 1 шт. | — | |
|
| 7 | 09494-00881 | JET, NEEDLE (P-5M) | 1 шт. | — | |
|
| 8 | 13500-42A00 | DIAPHRAGM ASSY | 1 шт. | — | |
|
| 9 | 13602-43410 | SCREW | 1 шт. | — | |
|
| 10 | 13411-42A20 | PLUNGER ASSY | 1 шт. | — | |
|
| 11 | 13295-29900 | O RING | 1 шт. | — | |
|
| 12 | 13291-29900 | WASHER | 1 шт. | — | |
|
| 13 | 13268-47070 | .SPRING | 1 шт. | — | |
|
| 14 | 13279-47070 | SCREW, PILOT (1 1/2) | 1 шт. | — | |
|
| 15 | 09492-35008 | JET, PILOT (35) | 1 шт. | — | |
|
| 16 | 13382-03110 | WASHER | 1 шт. | — | |
|
| 17 | 09491-25010 | JET, MAIN (125) | 1 шт. | — | |
|
| 18 | 13383-42AC0 | NEEDLE, JET (5D77-1) | 1 шт. | — | |
|
| 19 | 13250-42A00 | FLOAT | 1 шт. | — | |
|
| 20 | 13254-92311 | PIN, FLOAT | 1 шт. | — | |
|
| 21 | 13370-44500 | VALVE ASSY, NEEDLE | 1 шт. | — | |
|
| 22 | 13251-42A00 | O RING, FLOAT CHAMBER | 1 шт. | — | |
|
| 23 | 13374-35C00 | O RING | 1 шт. | — | |
|
| 24 | 13376-19F00 | FILTER | 1 шт. | — | |
|
| 25 | 09493-27001 | JET, AIR (135) | 1 шт. | — | |
|
| 26 | 02112-0412A | SCREW | 4 шт. | — | |
|
| 27 | 13268-37420 | .SPRING THROTTLE SCREW | 1 шт. | — | |
|
| 28 | 13267-25D00 | ADJUSTER | 1 шт. | — | |
|
| 29 | 09352-50823-600 | HOSE (5X8X600) L:600!250 | 1 шт. | — | |
|
| 30 | 09355-45855-600 | HOSE (4.5X8.5X600) L:600!180 | 1 шт. | — | |
|
| 31 | 13247-13A00 | .SCREW,DRAIN | 1 шт. | — | |
|
| 32 | 13281-05A00 | PLUG | 1 шт. | — | |
|
| 33 | 02112-0408B | SCREW | 4 шт. | — | |
|
