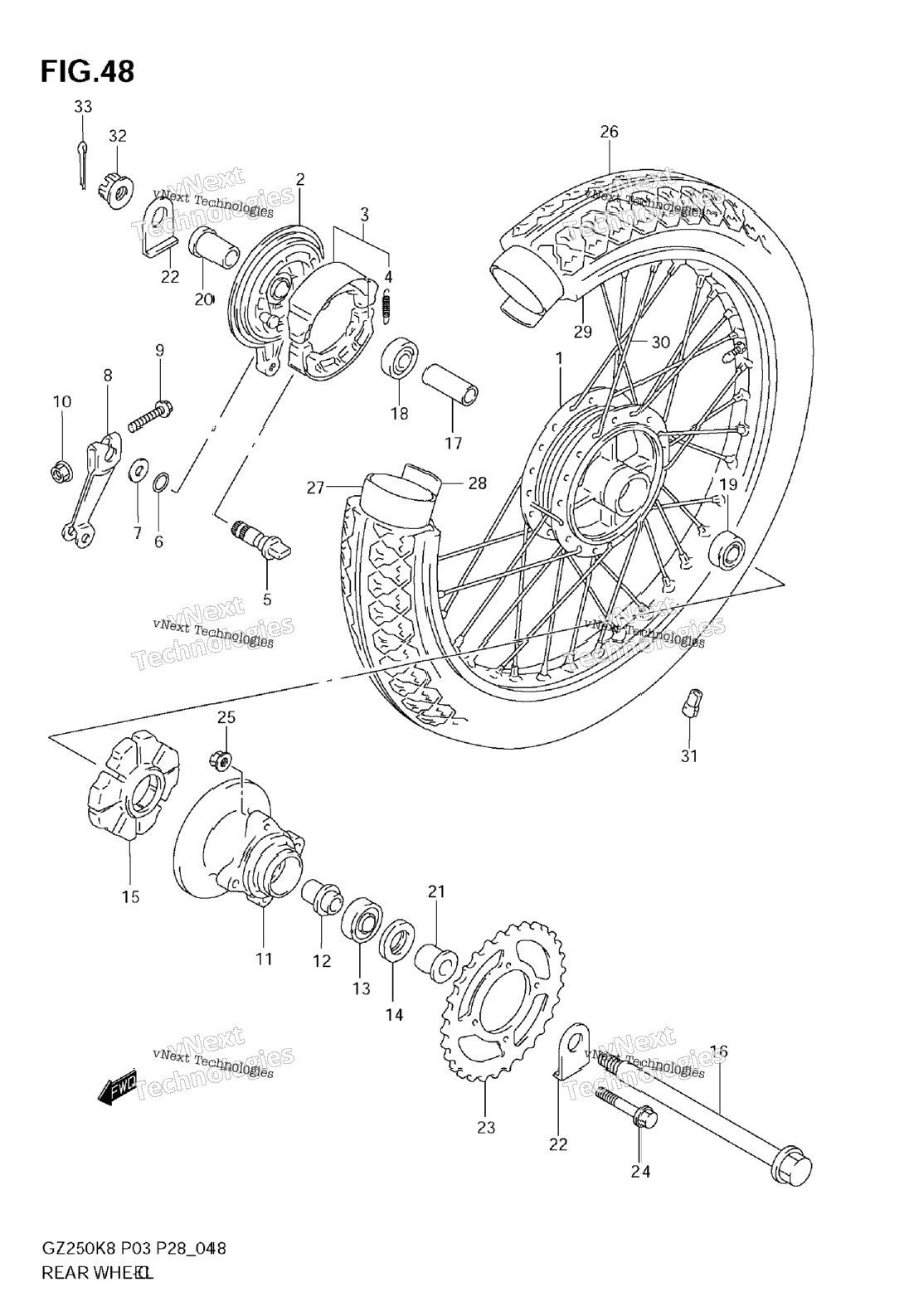

| 1 | 64110-07005 | HUB, REAR WHEEL | 0 шт. | — | |
|
| 2 | 64210-39115 | PANEL, REAR BRAKE ANCHOR | 1 шт. | — | |
|
| 3 | 54041-07E00 | SHOE SET, BRAKE Includes Item(s) 4 | 1 шт. | — | |
|
| 4 | 55421-20E00 | SPRING,REAR BRAKE SHOE | 2 шт. | — | |
|
| 5 | 54441-29305 | CAM, BRAKE | 1 шт. | — | |
|
| 6 | 09280-14003 | O RING (D:2.4,ID:13.8) | 1 шт. | — | |
|
| 7 | 09160-14055 | WASHER | 1 шт. | — | |
|
| 8 | 64451-30501 | LEVER, BRAKE CAM | 1 шт. | — | |
|
| 9 | 01550-06407 | BOLT | 1 шт. | — | |
|
| 10 | 08316-10067 | NUT | 1 шт. | — | |
|
| 11 | 64610-38300 | DRUM, SPROCKET MOUNTING | 0 шт. | — | |
|
| 12 | 64733-38300 | RETAINER, MOUNTING DRUM | 1 шт. | — | |
|
| 13 | 09262-20069 | BEARING, DRUM (20X47X14) | 1 шт. | — | |
|
| 14 | 09285-28001 | OIL SEAL (28X47X7) | 1 шт. | — | |
|
| 15 | 64651-07001 | SHOCK ABSORBER, HUB | 1 шт. | — | |
|
| 16 | 64711-12F00 | AXLE, REAR | 1 шт. | — | |
|
| 17 | 09180-15011 | SPACER, BEARING (15.3X21.7X63) | 1 шт. | — | |
|
| 18 | 08153-63027 | BEARING, WHEEL RH | 1 шт. | — | |
|
| 19 | 08143-62027 | BEARING, WHEEL LH | 1 шт. | — | |
|
| 20 | 64741C12F00J000 | SPACER, AXLE RH MODEL K8 | 1 шт. | — | |
|
| 21 | 64741C12F10J000 | SPACER, AXLE RH MODEL K9 | 0 шт. | — | |
|
| 22 | 64751C12F00J000 | SPACER, AXLE LH | 0 шт. | — | |
|
| 23 | 64712-08301 | WASHER, GUIDE | 2 шт. | — | |
|
| 24 | 64511-13FA0 | SPROCKET, REAR (NT:41) | 1 шт. | — | |
|
| 25 | 09103-10044 | BOLT (10X40) | 4 шт. | — | |
|
| 26 | 08319-3110A | NUT | 4 шт. | — | |
|
| 27 | 65100-12FA0 | TIRE, REAR (130/90-15) | 1 шт. | — | |
|
| 28 | 65200-12FA0 | TUBE ASSY, WHEEL INNER | 1 шт. | — | |
|
| 29 | 65261-12FA0 | PROTECTOR, INNER TUBE | 1 шт. | — | |
|
| 30 | 65311-12F00 | RIM, REAR WHEEL (15XMT3.00) | 1 шт. | — | |
|
| 31 | 65320-12F00 | SPOKE SET, REAR WHEEL | 1 шт. | — | |
|
| 32 | 55411-26G00 | BALANCER WHEEL (15G) | 1 шт. | — | |
|
| 33 | 55413-41F00 | BALANCER WHEEL (30G) | 1 шт. | — | |
|
| 34 | 09159-14018 | NUT MODEL K8 | 0 шт. | — | |
|
| 35 | 08319-3114A | NUT MODEL K9 | 1 шт. | — | |
|
| 36 | 04111-3025A | PIN MODEL K8 | 1 шт. | — | |
|
