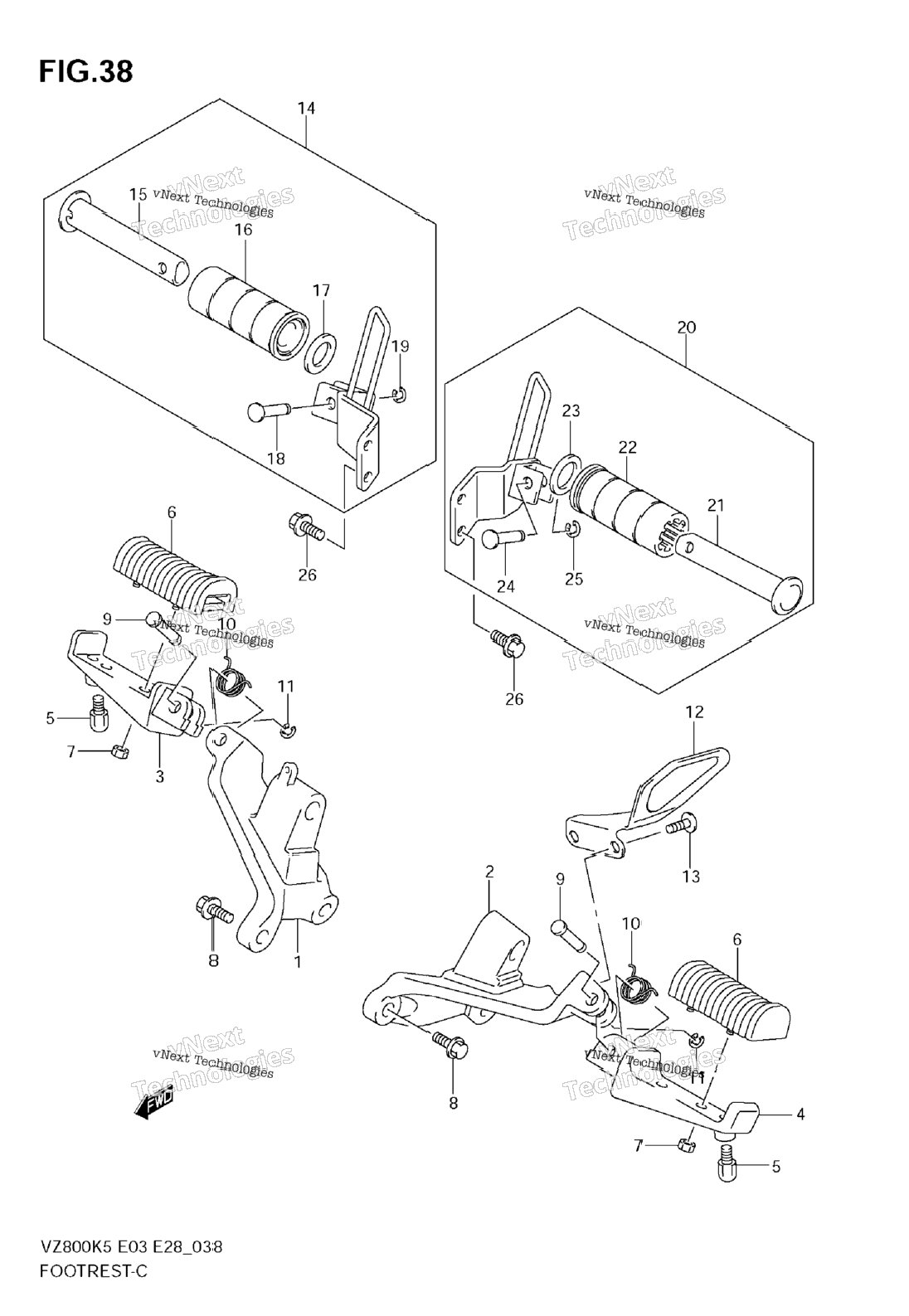

| 1 | 43511-41F00 | BRACKET, FRONT FOOTREST RH | 1 шт. | — | |
|
| 2 | 43521-41F01 | BRACKET, FRONT FOOTREST LH | 1 шт. | — | |
|
| 3 | 43531-41F00 | BAR, FRONT RH | 1 шт. | — | |
|
| 4 | 43541-41F00 | BAR, FRONT LH | 1 шт. | — | |
|
| 5 | 43576-07D01 | BOLT, BANK SENSOR | 2 шт. | — | |
|
| 6 | 43550-41F00 | RUBBER, FRONT FOOTREST | 2 шт. | — | |
|
| 7 | 08319-2106B | .NUT | 4 шт. | — | |
|
| 8 | 01580-1030B | BOLT, BRACKET | 4 шт. | — | |
|
| 9 | 09208-08010 | PIN | 2 шт. | — | |
|
| 10 | 09448-18022 | SPRING | 2 шт. | — | |
|
| 11 | 08332-1106B | E RING | 2 шт. | — | |
|
| 12 | 43571-39G00 | GUARD, FRONT FOOTREST LH | 0 шт. | — | |
|
| 13 | 09139-06108 | SCREW | 0 шт. | — | |
|
| 14 | 43600-39G00 | FOOTREST ASSY, PILLION RH MODEL K5/K6/K7/K8 | 0 шт. | — | |
|
| 14 | 43600-41F50 | FOOTREST ASSY, PILLION RH MODEL K9; Includes Item(s) 15 - 19 | 1 шт. | — | |
|
| 20 | 43700-39G00 | FOOTREST ASSY, PILLION LH MODEL K5/K6/K7/K8 | 0 шт. | — | |
|
| 20 | 43700-41F50 | FOOTREST ASSY, PILLION LH MODEL K9; Includes Item(s) 21 - 25 | 1 шт. | — | |
|
| 21 | 43610-39G00 | BAR | 1 шт. | — | |
|
| 21 | 43610-39G00 | BAR | 1 шт. | — | |
|
| 22 | 43612-39G00 | RUBBER | 1 шт. | — | |
|
| 22 | 43612-39G00 | RUBBER | 1 шт. | — | |
|
| 23 | 09160-19024 | WASHER | 1 шт. | — | |
|
| 23 | 09160-19024 | WASHER | 1 шт. | — | |
|
| 24 | 43636-25D00 | PIN | 1 шт. | — | |
|
| 24 | 43636-25D00 | PIN | 1 шт. | — | |
|
| 25 | 08332-1104B | E RING | 1 шт. | — | |
|
| 25 | 08332-1104B | E RING | 1 шт. | — | |
|
| 26 | 09103-08412 | BOLT, BRACKET | 4 шт. | — | |
|
