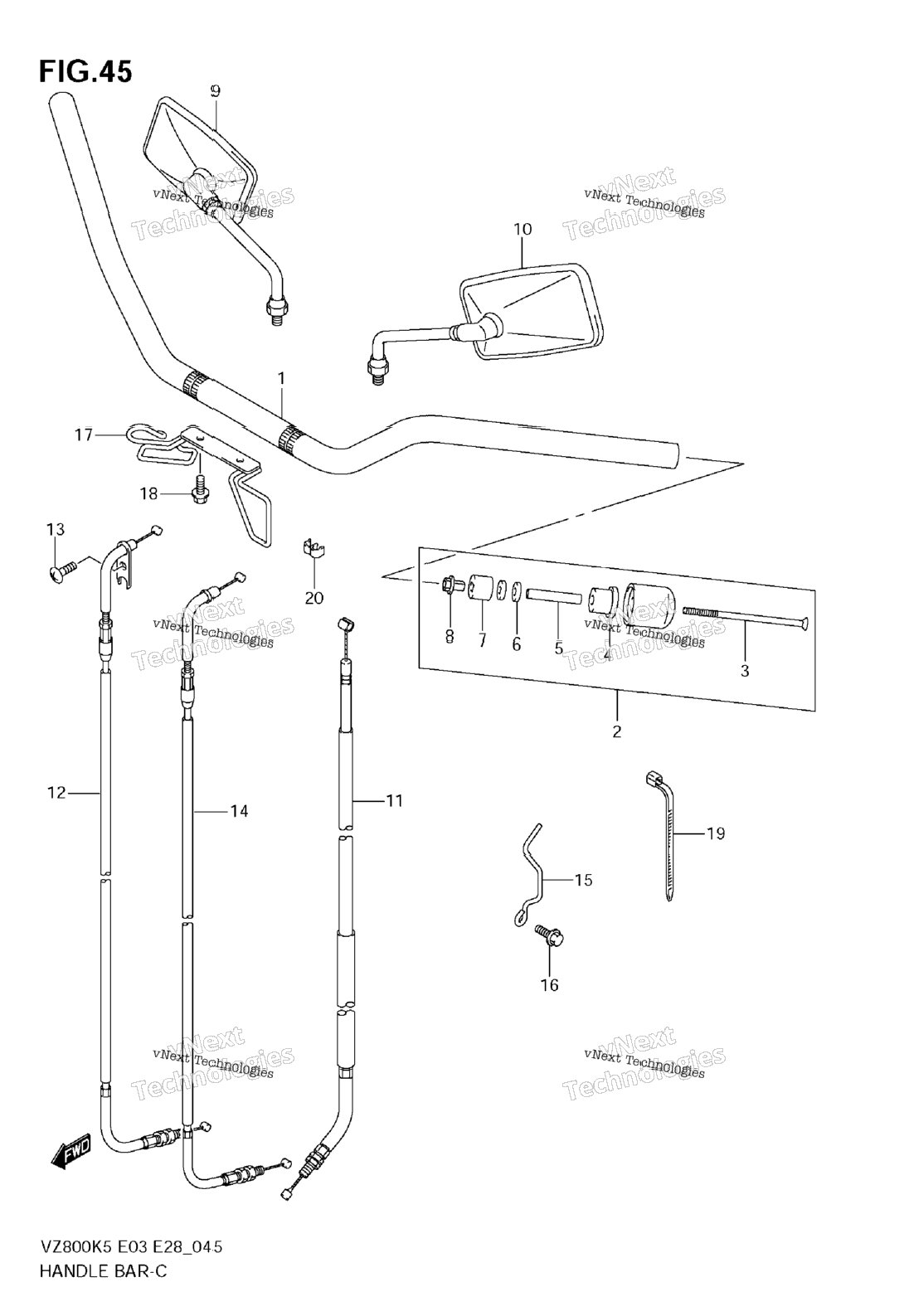

| 1 | 56111-39G00 | HANDLEBAR MODEL K5/K6 | 1 шт. | — | |
|
| 2 | 56111-39G10 | HANDLEBAR MODEL K7/K8/K9 | 1 шт. | — | |
|
| 3 | 56200-10891 | BALANCER SET, HANDLEBAR Includes Item(s) 3 - 8 | 2 шт. | — | |
|
| 4 | 09127-06017 | SCREW | 2 шт. | — | |
|
| 5 | 56272-26D01 | EXPANDER, OUTER | 2 шт. | — | |
|
| 6 | 56276-17D00 | SPACER | 2 шт. | — | |
|
| 7 | 09160-06131 | WASHER | 2 шт. | — | |
|
| 8 | 56272-10G10 | EXPANDER, INNER | 2 шт. | — | |
|
| 9 | 56273-10G10 | NUT | 2 шт. | — | |
|
| 10 | 56500-45C50 | MIRROR ASSY, REAR VIEW RH MODEL K5/K6 | 1 шт. | — | |
|
| 11 | 56500-45C51 | MIRROR ASSY, REAR VIEW RH MODEL K7/K8/K9 | 1 шт. | — | |
|
| 12 | 56600-45C50 | MIRROR ASSY, REAR VIEW LH MODEL K5/K6 | 1 шт. | — | |
|
| 13 | 56600-45C51 | MIRROR ASSY, REAR VIEW LH MODEL K7/K8/K9 | 1 шт. | — | |
|
| 14 | 58200-39G00 | CABLE ASSY, CLUTCH MODEL K5/K6 | 1 шт. | — | |
|
| 15 | 58200-39G10 | CABLE ASSY, CLUTCH MODEL K7/K8/K9 | 1 шт. | — | |
|
| 16 | 58300-39G00 | CABLE ASSY, THROTTLE MODEL K5/K6 | 0 шт. | — | |
|
| 17 | 58300-39G20 | CABLE ASSY, THROTTLE MODEL K7/K8 | 0 шт. | — | |
|
| 18 | 58300-39G40 | CABLE ASSY, THROTTLE MODEL K9 | 1 шт. | — | |
|
| 19 | 02142-05087 | SCREW, CASE | 1 шт. | — | |
|
| 20 | 58300-39G10 | CABLE ASSY, THROTTLE NO.2 MODEL K5/K6 | 0 шт. | — | |
|
| 21 | 58300-39G30 | CABLE ASSY, THROTTLE NO.2 MODEL K7/K8 | 1 шт. | — | |
|
| 22 | 58300-39G50 | CABLE ASSY, THROTTLE NO.2 MODEL K9 | 1 шт. | — | |
|
| 23 | 58626-39G00 | GUIDE, THROTTLE CABLE MODEL K5/K6 | 0 шт. | — | |
|
| 24 | 58626-39G10 | GUIDE, THROTTLE CABLE MODEL K7/K8/K9 | 0 шт. | — | |
|
| 25 | 01550-0616B | .BOLT | 1 шт. | — | |
|
| 26 | 58620-39G00 | GUIDE, CABLE | 0 шт. | — | |
|
| 27 | 01550-0616B | .BOLT | 2 шт. | — | |
|
| 28 | 09407-19401 | CLAMP (L:190) | 3 шт. | — | |
|
| 29 | 09407-25401 | CLAMP (L:235) | 1 шт. | — | |
|
| 30 | 09407-30401 | CLAMP (L:300) | 1 шт. | — | |
|
| 31 | 09408-00033 | CLIP MODEL K5/K6 | 1 шт. | — | |
|
| 32 | 09408-00244 | CLIP MODEL K7/K8/K9 | 1 шт. | — | |
|
