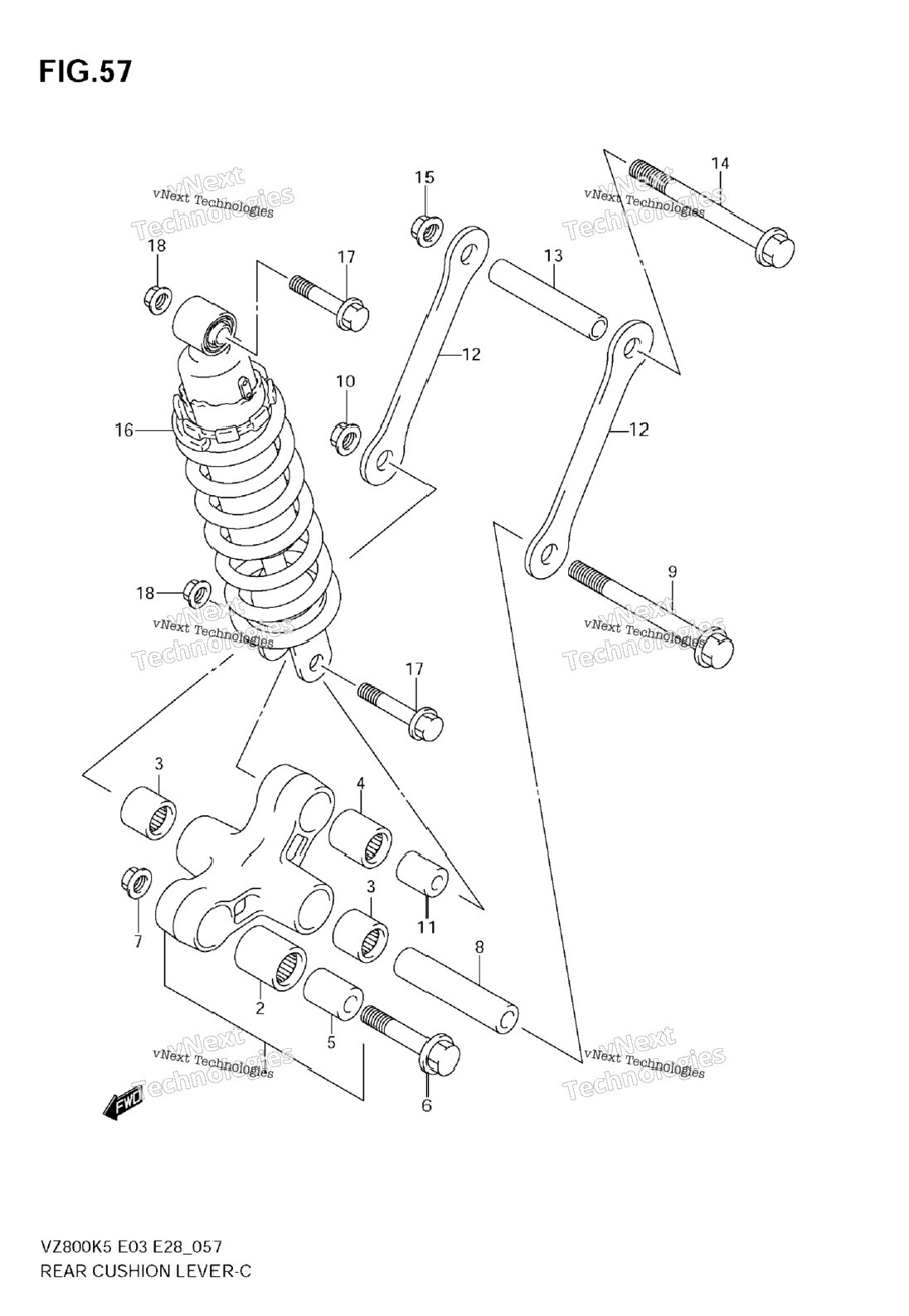

| 1 | 62600-33880 | LEVER SET, REAR CUSHION Includes Item(s) 2 - 4 | 1 шт. | — | |
|
| 2 | 09263-20073 | BEARING, FRONT (20x27x30) | 1 шт. | — | |
|
| 3 | 09263-17039 | BEARING, CENTER (17x24x20) | 2 шт. | — | |
|
| 4 | 09263-17034 | BEARING, REAR (17x24x26) | 1 шт. | — | |
|
| 5 | 62684-12C00 | SPACER, FRONT (12x20x32) | 1 шт. | — | |
|
| 6 | 62668-42A02 | BOLT (12X62) | 1 шт. | — | |
|
| 7 | 08319-31128 | NUT MODEL K5/K6 | 1 шт. | — | |
|
| 8 | 08319-3112A | NUT MODEL K7/K8/K9 | 1 шт. | — | |
|
| 9 | 62626-33D00 | SPACER,RR CUSHION LEVER CTR ( | 1 шт. | — | |
|
| 10 | 62621-33D00 | BOLT, CENTER (12x124) | 1 шт. | — | |
|
| 11 | 08319-31128 | NUT MODEL K5/K6 | 1 шт. | — | |
|
| 12 | 08319-3112A | NUT MODEL K7/K8/K9 | 1 шт. | — | |
|
| 13 | 62684-40A10 | SPACER,RR CUSHION LEVER (10X1 | 1 шт. | — | |
|
| 14 | 62641-41F00 | ROD, REAR CUSHION LEVER | 2 шт. | — | |
|
| 15 | 62626-33D00 | SPACER,RR CUSHION LEVER CTR ( | 1 шт. | — | |
|
| 16 | 62621-33D00 | BOLT, ROD (12x124) | 1 шт. | — | |
|
| 17 | 08319-31128 | NUT MODEL K5/K6 | 1 шт. | — | |
|
| 18 | 08319-3112A | NUT MODEL K7/K8/K9 | 1 шт. | — | |
|
| 19 | 62100-39G00 | ABSORBER ASSY, REAR SHOCK E28 | 0 шт. | — | |
|
| 20 | 62100-39G10 | ABSORBER ASSY, REAR SHOCK E3,E33 | 0 шт. | — | |
|
| 21 | 09103-10213 | BOLT | 2 шт. | — | |
|
| 22 | 08319-31103 | NUT MODEL K5/K6/K7 | 2 шт. | — | |
|
| 23 | 08319-3110B | NUT MODEL K8/K9 | 2 шт. | — | |
|
