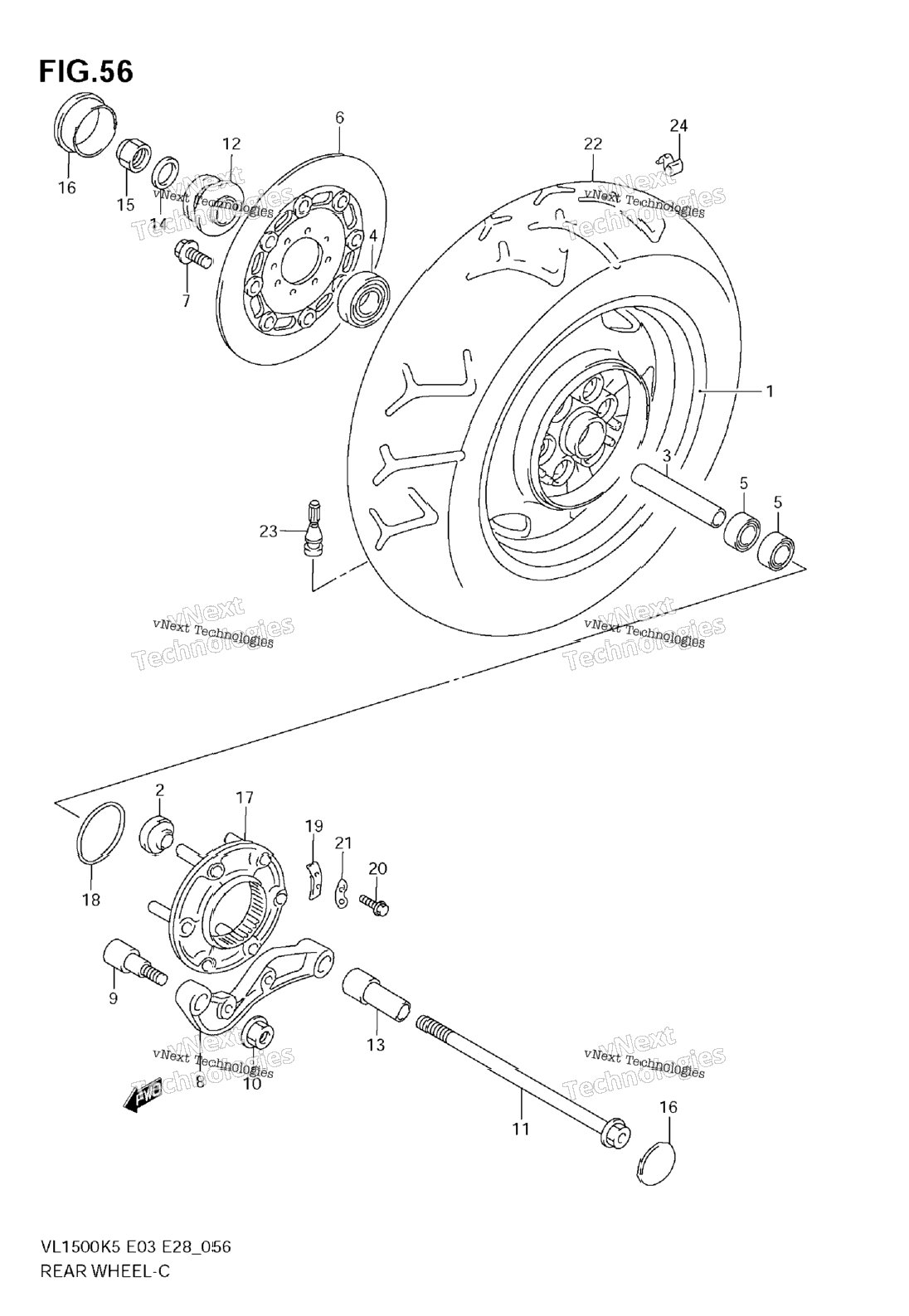

| 1 | 64100-10830-YAA | WHEEL SET, REAR (MT5.00X15) (SILVER) Includes Item(s) 2 | 0 шт. | — | |
|
| 2 | 09319-12019 | BUSHING (12X41X34) | 6 шт. | — | |
|
| 3 | 09180-20112 | SPACER (20.8X27.2X124) | 1 шт. | — | |
|
| 4 | 08133-62047 | BEARING, RH | 1 шт. | — | |
|
| 5 | 09262-20042 | BEARING, LH (20X47X14) | 2 шт. | — | |
|
| 6 | 69210-10F22 | DISC, REAR BRAKE | 1 шт. | — | |
|
| 7 | 09106-08148 | BOLT, DISC (8X33) | 6 шт. | — | |
|
| 8 | 69721-10F01 | BRACKET, REAR CALIPER | 0 шт. | — | |
|
| 9 | 64241-10F00 | PIN, BRACKET | 1 шт. | — | |
|
| 10 | 08319-3112B | NUT | 1 шт. | — | |
|
| 11 | 64711-10F00 | AXLE, REAR | 1 шт. | — | |
|
| 12 | 64740-10F00 | SPACER, AXLE RH | 1 шт. | — | |
|
| 13 | 64772-10F00 | SPACER, AXLE LH | 1 шт. | — | |
|
| 14 | 08322-01183 | WASHER MODEL K5/K6/K7 | 1 шт. | — | |
|
| 15 | 08322-0118B | WASHER MODEL K8 | 1 шт. | — | |
|
| 16 | 09159-18004 | NUT | 1 шт. | — | |
|
| 17 | 64792-38B00 | CAP, REAR AXLE | 2 шт. | — | |
|
| 18 | 64680-24A00 | JOINT ASSY, REAR HUB | 1 шт. | — | |
|
| 19 | 09280-65003 | O RING (D:2.1,ID:65.0) | 1 шт. | — | |
|
| 20 | 64677-45110 | WASHER, THRUST | 3 шт. | — | |
|
| 21 | 09119-06049 | BOLT (6X16) | 6 шт. | — | |
|
| 22 | 09169-06030 | WASHER | 3 шт. | — | |
|
| 23 | 65110-10F00 | TIRE, REAR (180/70-15M/C 76H) (BRIDGESTONE) VL1500 | 0 шт. | — | |
|
| 24 | 65110-10F10 | TIRE, REAR (180/70-15M/C 76H) (BRIDGESTONE) VL1500T | 0 шт. | — | |
|
| 25 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
|
| 26 | 43222-73H10 | BALANCER, WHEEL NO.1 | 1 шт. | — | |
|
| 27 | 43224-73H10 | BALANCER, WHEEL NO.2 | 1 шт. | — | |
|
| 28 | 43226-73H10 | BALANCER, WHEEL NO.3 | 1 шт. | — | |
|
