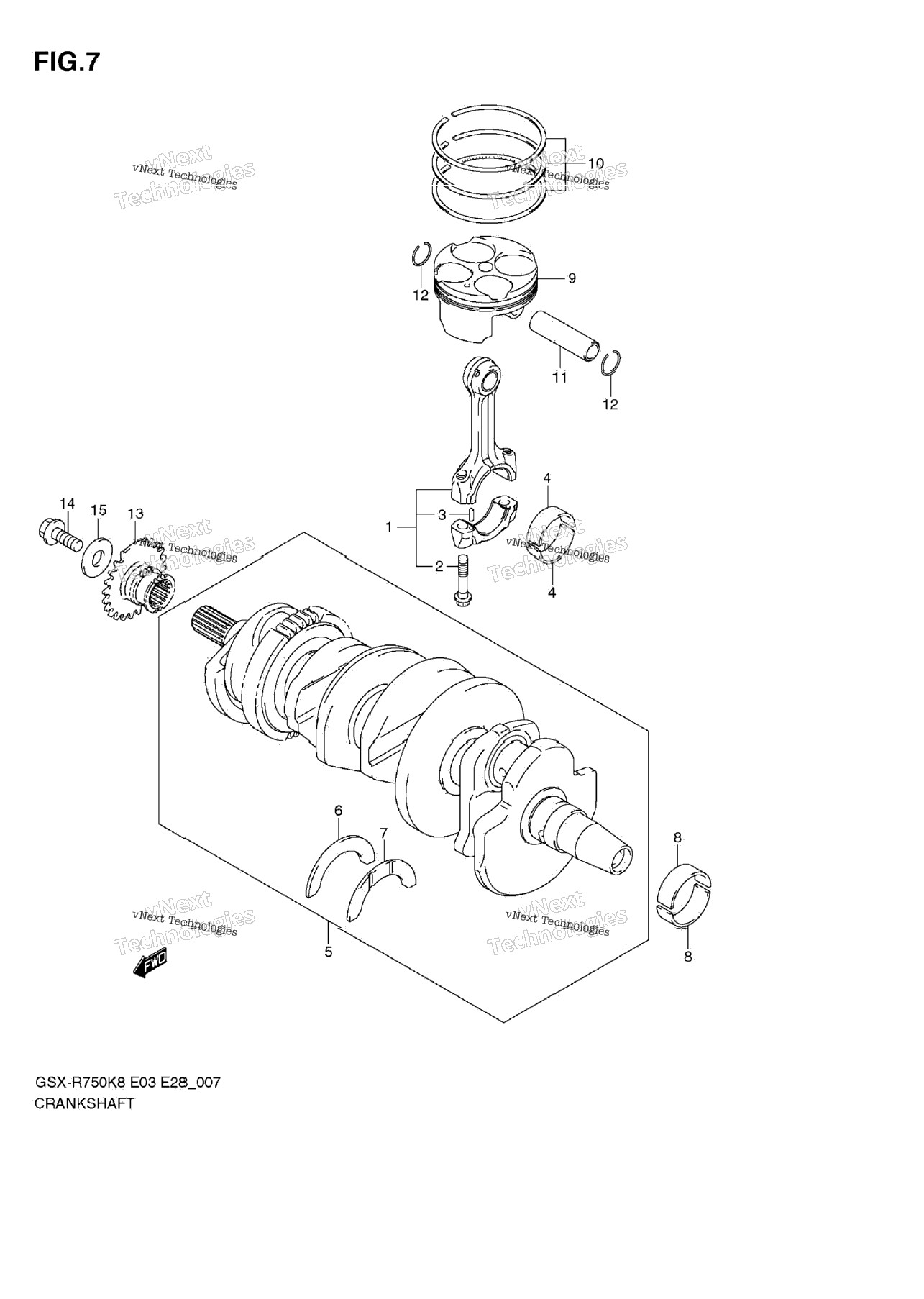

| 1 | 12160-02H10 | ROD ASSY, CONNECTING | 4 шт. | — | |
|
| 2 | 12163-35F00 | BOLT | 8 шт. | — | |
|
| 3 | 04221-04089 | .PIN | 8 шт. | — | |
|
| 4 | 12164-30G00-0A0 | BEARING,CRANK PIN | 8 шт. | — | |
|
| 4 | 12164-30G00-0D0 | BEARING,CRANK PIN | 8 шт. | — | |
|
| 4 | 12164-30G00-0C0 | BEARING,CRANK PIN | 8 шт. | — | |
|
| 4 | 12164-30G00-0B0 | BEARING,CRANK PIN | 8 шт. | — | |
|
| 5 | 12000-02840 | CRANKSHAFT SET | 1 шт. | — | |
|
| 7 | 12228-17E00-0B0 | BEARING, THRUST LH (BLACK) | 1 шт. | — | |
|
| 7 | 12228-17E00-0C0 | BEARING, THRUST LH (BLUE) | 1 шт. | — | |
|
| 7 | 12228-17E00-0D0 | BEARING, THRUST LH (GREEN) | 1 шт. | — | |
|
| 7 | 12228-17E00-0A0 | BEARING, THRUST LH (RED) | 1 шт. | — | |
|
| 7 | 12228-17E00-0F0 | BEARING, THRUST LH (WHITE) | 1 шт. | — | |
|
| 7 | 12228-17E00-0E0 | BEARING, THRUST LH (YELLOW) | 1 шт. | — | |
|
| 7 | 12228-17E00-0D0 | BEARING, THRUST RH (GREEN) | 1 шт. | — | |
|
| 8 | 12229-02H00-0B0 | BEARING,CRANKSHAFT | 10 шт. | — | |
|
| 8 | 12229-02H00-0E0 | BEARING,CRANKSHAFT | 10 шт. | — | |
|
| 8 | 12229-02H00-0A0 | BEARING,CRANKSHAFT | 10 шт. | — | |
|
| 8 | 12229-02H00-0D0 | BEARING,CRANKSHAFT | 10 шт. | — | |
|
| 8 | 12229-02H00-0C0 | BEARING,CRANKSHAFT | 10 шт. | — | |
|
| 9 | 12111-02H10-0F0 | PISTON | 4 шт. | — | |
|
| 10 | 12140-02H00 | RING SET,PISTON | 4 шт. | — | |
|
| 11 | 12151-41G00 | PIN,PISTON | 4 шт. | — | |
|
| 12 | 09381-15001 | CIRCLIP | 8 шт. | — | |
|
| 13 | 12731-01H00 | SPROCKET, CAM CHAIN | 1 шт. | — | |
|
| 14 | 09103-10189 | BOLT | 1 шт. | — | |
|
| 15 | 08211-10285 | WASHER | 1 шт. | — | |
|
