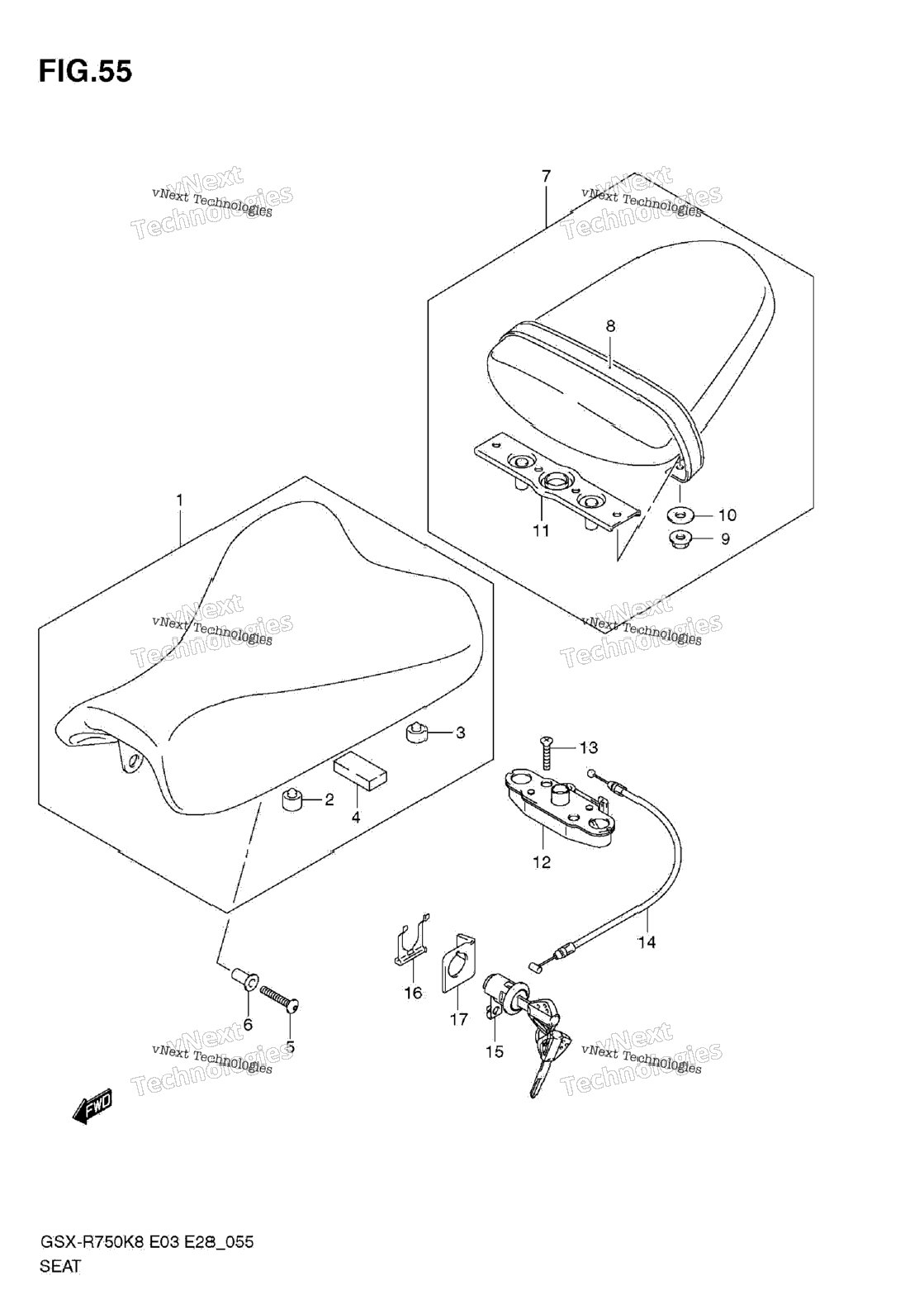

| 1 | 45100-37H00-6BY | SEAT ASSY (BLACK) | 1 шт. | — | |
|
| 2 | 09321-10039 | CUSHION, FRONT | 2 шт. | — | |
|
| 3 | 09321-10011 | CUSHION | 4 шт. | — | |
|
| 4 | 45149-37H00 | CUSHION | 1 шт. | — | |
|
| 5 | 09139-06065-XC0 | BOLT, SEAT | 2 шт. | — | |
|
| 6 | 09180-06320 | WASHER, SEAT | 2 шт. | — | |
|
| 7 | 45300-37H00-6BY | SEAT ASSY, PILLION (BLACK) | 1 шт. | — | |
|
| 8 | 45180-37H00-6BY | BAND ASSY, SEAT | 1 шт. | — | |
|
| 9 | 08319-3106A | NUT | 2 шт. | — | |
|
| 10 | 09160-06088 | WASHER | 2 шт. | — | |
|
| 11 | 45290-18G00 | STRIKER | 1 шт. | — | |
|
| 12 | 45220-20A01 | BRACKET, SEAT SUPPORT | 1 шт. | — | |
|
| 13 | 02122-0630A | SCREW, REAR | 2 шт. | — | |
|
| 14 | 45280-13A01 | CABLE, SEAT LOCK | 1 шт. | — | |
|
| 15 | 95700-14810 | LOCK SET,SEAT | 1 шт. | — | |
|
| 16 | 45289-11F00 | PLATE,SEAT LOCK ASSY | 1 шт. | — | |
|
| 17 | 45288-14F00 | GUIDE,SEAT LOCK CABLE | 1 шт. | — | |
|
