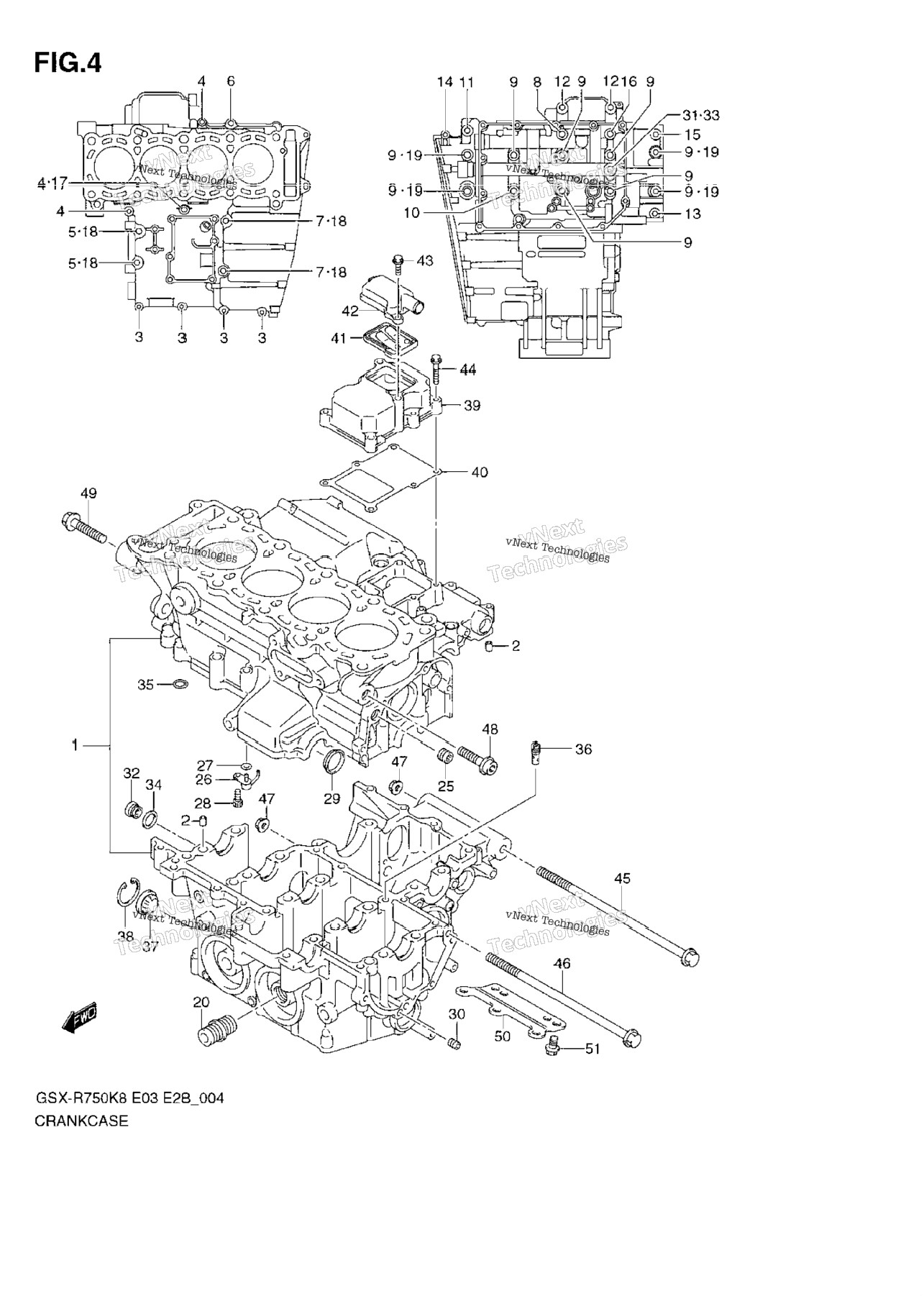

| 1 | 11301-38860 | CRANKCASE SET Includes Item(s) 2 - 24 | 0 шт. | — | |
|
| 2 | 11319-33E50 | PIN | 3 шт. | — | |
|
| 3 | 01547-0635A | BOLT | 4 шт. | — | |
|
| 4 | 01547-0665A | BOLT | 3 шт. | — | |
|
| 5 | 01550-0850A | BOLT | 2 шт. | — | |
|
| 6 | 01550-0860A | BOLT | 1 шт. | — | |
|
| 7 | 01550-0875A | BOLT | 2 шт. | — | |
|
| 8 | 09103-08097 | BOLT (8X105) | 1 шт. | — | |
|
| 9 | 09103-09012 | BOLT (9X95) | 9 шт. | — | |
|
| 10 | 09103-09014 | BOLT (9X80) | 1 шт. | — | |
|
| 11 | 09106-08184 | BOLT (8X55) | 1 шт. | — | |
|
| 12 | 09103-08170 | BOLT (8X55) | 2 шт. | — | |
|
| 14 | 01547-0645A | BOLT | 1 шт. | — | |
|
| 15 | 01550-0865A | BOLT | 1 шт. | — | |
|
| 16 | 01550-0885A | BOLT | 1 шт. | — | |
|
| 17 | 09168-06023 | GASKET (5.8X13X1.2) | 1 шт. | — | |
|
| 18 | 09168-08016 | GASKET (8.2X14X1) | 4 шт. | — | |
|
| 19 | 09168-10031 | GASKET (10.2X20X2.3) | 4 шт. | — | |
|
| 20 | 16591-06B01 | UNION, OIL FILTER STAND | 1 шт. | — | |
|
| 21 | 09280-00043 | O RING, DRIVE SHAFT BEARING COVER (D:1.9,ID:99.5) NOT SHOWN | 1 шт. | — | |
|
| 22 | 09139-06151 | BOLT, DRIVE SHAFT BEARING COVER (6X20) NOT SHOWN | 6 шт. | — | |
|
| 24 | 12228-17E00-0B0 | BEARING, THRUST LH (BLACK) | 1 шт. | — | |
|
| 24 | 12228-17E00-0C0 | BEARING, THRUST LH (BLUE) | 1 шт. | — | |
|
| 24 | 12228-17E00-0D0 | BEARING, THRUST LH (GREEN) | 1 шт. | — | |
|
| 24 | 12228-17E00-0A0 | BEARING, THRUST LH (RED) SEE ILLUS FIG.7 | 1 шт. | — | |
|
| 24 | 12228-17E00-0F0 | BEARING, THRUST LH (WHITE) | 1 шт. | — | |
|
| 24 | 12228-17E00-0E0 | BEARING, THRUST LH (YELLOW) | 1 шт. | — | |
|
| 24 | 12228-17E00-0D0 | BEARING, THRUST RH (GREEN) SEE ILLUS FIG.7 | 1 шт. | — | |
|
| 25 | 11329-02F00 | JET, OIL GALLERY | 1 шт. | — | |
|
| 26 | 11390-35F00 | JET,PISTON COOLING | 4 шт. | — | |
|
| 27 | 09280-04004 | O RING (D:1.2,ID:4) | 4 шт. | — | |
|
| 28 | 09106-06075 | BOLT, PISTON COOLING | 4 шт. | — | |
|
| 29 | 09241-26004 | PLUG, BALANCER SHAFT HOLE | 1 шт. | — | |
|
| 30 | 09246-05006 | PLUG, OIL GALLERY | 1 шт. | — | |
|
| 31 | 09248-12004 | PLUG, OIL GALLERY | 1 шт. | — | |
|
| 32 | 09248-16013 | PLUG, OIL GALLERY | 2 шт. | — | |
|
| 33 | 09168-12002 | GASKET, OIL GALLERY | 1 шт. | — | |
|
| 34 | 09168-16002 | GASKET, OIL GALLERY | 1 шт. | — | |
|
| 35 | 09280-08012 | O RING (D:1.9,ID:7.8) | 1 шт. | — | |
|
| 36 | 09493-28012 | JET | 1 шт. | — | |
|
| 37 | 11971-33210 | .LENS,OIL LEVEL CHECK | 1 шт. | — | |
|
| 38 | 08331-4130A | CIRCLIP | 1 шт. | — | |
|
| 39 | 11371-01H00 | COVER,BREATHER | 0 шт. | — | |
|
| 40 | 11484-01H00 | GASKET, BREATHER COVER | 1 шт. | — | |
|
| 41 | 13150-01H00 | VALVE ASSY, BREATHER REED | 1 шт. | — | |
|
| 42 | 11372-01H00 | COVER, VALVE | 1 шт. | — | |
|
| 43 | 01547-0616A | BOLT | 2 шт. | — | |
|
| 44 | 01547-0630A | BOLT | 6 шт. | — | |
|
| 44 | 01547-0630A | BOLT | 1 шт. | — | |
|
| 45 | 09103-10041 | BOLT (10X215) | 1 шт. | — | |
|
| 46 | 09103-10145 | BOLT (10X205) | 1 шт. | — | |
|
| 47 | 09159-10115 | NUT | 2 шт. | — | |
|
| 48 | 09106-10069 | BOLT, ENG MTG (10X45) | 1 шт. | — | |
|
| 49 | 09106-10070 | BOLT, ENG MTG (10X55) | 1 шт. | — | |
|
| 50 | 11322-01H00 | PLATE,CRANKCASE LOWER | 1 шт. | — | |
|
| 51 | 09103-06188 | BOLT | 4 шт. | — | |
|
