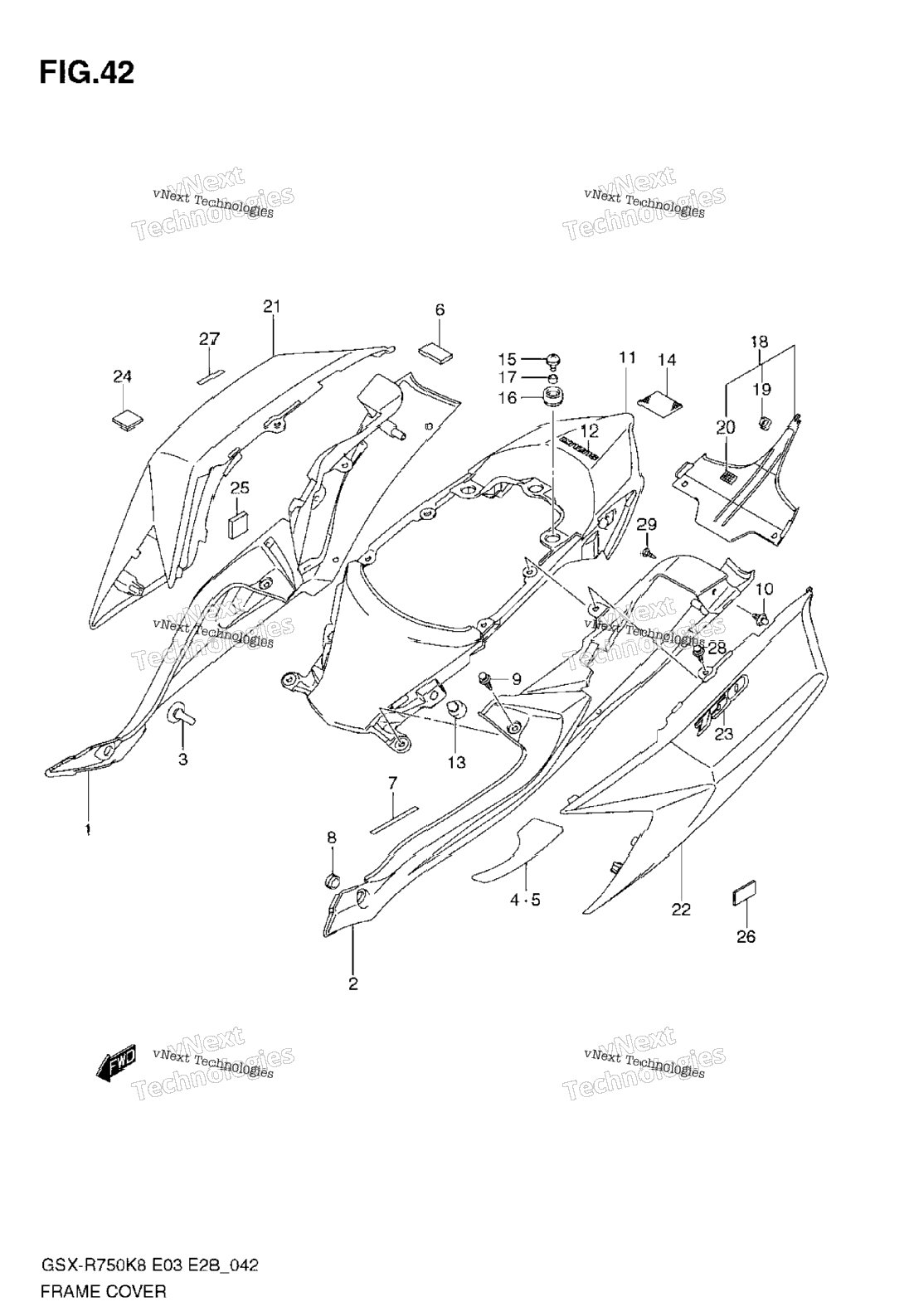

| 1 | 47110-37H00-019 | COVER, FRAME RH (BLACK) FOR CRU | 1 шт. | — | |
|
| 1 | 47110-37H00-YBD | COVER, FRAME RH (BLUE) FOR CWH | 1 шт. | — | |
|
| 1 | 47110-37H00-YLF | COVER, FRAME RH (GRAY) FOR ECE | 0 шт. | — | |
|
| 2 | 47210-37H00-019 | COVER, FRAME LH (BLACK) FOR CRU | 1 шт. | — | |
|
| 2 | 47210-37H00-YBD | COVER, FRAME LH (BLUE) FOR CWH | 0 шт. | — | |
|
| 2 | 47210-37H00-YLF | COVER, FRAME LH (GRAY) FOR ECE; Includes Item(s) 3 - 7 | 0 шт. | — | |
|
| 3 | 09321-06026 | CUSHION | 4 шт. | — | |
|
| 4 | 47112-37H00 | TAPE, RH | 1 шт. | — | |
|
| 5 | 47212-37H00 | TAPE, LH | 1 шт. | — | |
|
| 6 | 47114-37H00 | CUSHION | 2 шт. | — | |
|
| 7 | 47115-37H00 | CUSHION | 2 шт. | — | |
|
| 8 | 47113-37H00 | CUSHION, FRONT | 2 шт. | — | |
|
| 10 | 09409-06314-5PK | CLIP, REAR | 6 шт. | — | |
|
| 11 | 47310-37H00-019 | COVER, FRAME CENTER (BLACK) FOR CRU | 1 шт. | — | |
|
| 11 | 47310-37H00-1PX | COVER, FRAME CENTER (BLACK) FOR ECE; Includes Item(s) 12 - 14 | 1 шт. | — | |
|
| 11 | 47310-37H00-YKY | COVER, FRAME CENTER (BLUE) FOR CWH | 0 шт. | — | |
|
| 12 | 68131-21H00-YU8 | EMBLEM (GRAY) FOR 019 | 2 шт. | — | |
|
| 12 | 68131-21H00-YD8 | EMBLEM (SILVER) FOR 1PX | 2 шт. | — | |
|
| 12 | 68131-21H00-YBD | EMBLEM (WHITE) FOR YKY | 2 шт. | — | |
|
| 13 | 09321-10002 | CUSHION | 2 шт. | — | |
|
| 14 | 44572-13G10 | FASTENER | 1 шт. | — | |
|
| 15 | 09136-06056 | BOLT, CENTER | 3 шт. | — | |
|
| 16 | 47312-37H00 | CUSHION | 3 шт. | — | |
|
| 17 | 09180-06283 | SPACER | 3 шт. | — | |
|
| 18 | 47910-37H00-019 | COVER, FRAME REAR (BLACK) FOR CRU,ECE | 1 шт. | — | |
|
| 18 | 47910-37H00-YKY | COVER, FRAME REAR (BLUE) FOR CWH; Includes Item(s) 19 - 20 | 1 шт. | — | |
|
| 19 | 47913-37H00 | CUSHION | 1 шт. | — | |
|
| 20 | 47912-37H00 | FASTENER | 3 шт. | — | |
|
| 21 | 47710-38H00-YKV | COVER, FRAME REAR RH (BLACK) FOR CRU | 0 шт. | — | |
|
| 21 | 47710-38H00-YKY | COVER, FRAME REAR RH (BLUE) FOR CWH | 0 шт. | — | |
|
| 21 | 47710-38H00-YME | COVER, FRAME REAR RH (ORANGE) FOR ECE | 0 шт. | — | |
|
| 22 | 47810-38H00-YKV | COVER, FRAME REAR LH (BLACK) FOR CRU | 0 шт. | — | |
|
| 22 | 47810-38H00-YKY | COVER, FRAME REAR LH (BLUE) FOR CWH | 0 шт. | — | |
|
| 22 | 47810-38H00-YME | COVER, FRAME REAR LH (ORANGE) FOR ECE; Includes Item(s) 23 - 27 | 1 шт. | — | |
|
| 23 | 68131-38H00-J7A | EMBLEM, "750" FOR YKV | 0 шт. | — | |
|
| 23 | 68131-38H00-FND | EMBLEM, "750" FOR YKY | 2 шт. | — | |
|
| 23 | 68131-38H00-CTY | EMBLEM, "750" FOR YME | 2 шт. | — | |
|
| 24 | 47712-37H00 | CUSHION, COVER UPPER | 2 шт. | — | |
|
| 25 | 47713-37H00 | CUSHION, SIDE | 2 шт. | — | |
|
| 26 | 45516-01H00 | CUSHION, REAR | 2 шт. | — | |
|
| 27 | 45517-16G00 | TAPE | 2 шт. | — | |
|
| 28 | 09409-06328 | CLIP | 2 шт. | — | |
|
| 28 | 09409-06328 | CLIP, FRONT | 4 шт. | — | |
|
| 29 | 03541-0512A | SCREW | 6 шт. | — | |
|
