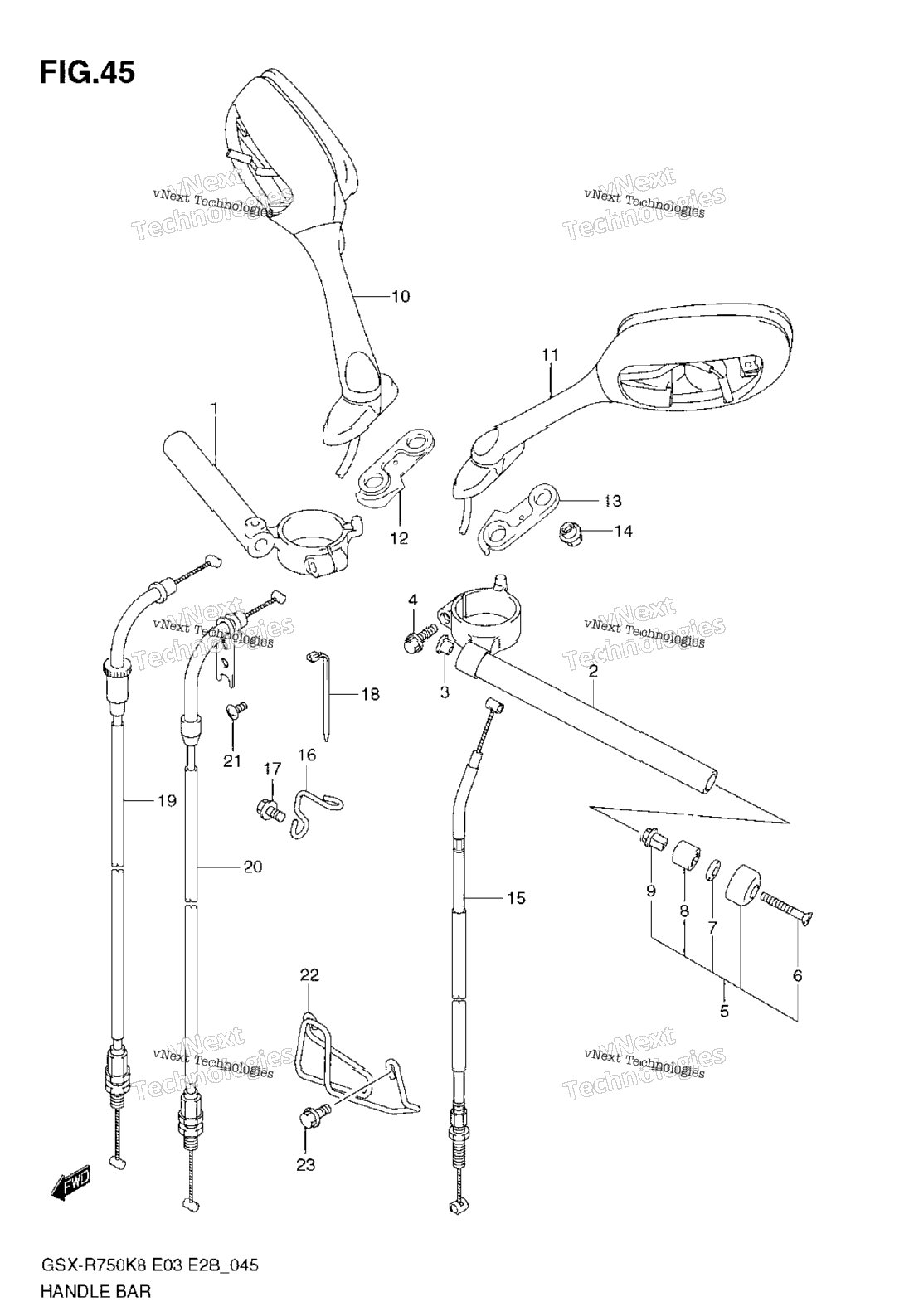

| 1 | 56111-01H10 | HANDLEBAR, RH | 1 шт. | — | |
|
| 2 | 56151-01H10 | HANDLEBAR, LH | 1 шт. | — | |
|
| 3 | 56131-29G00 | CAP,HANDLEBAR | 2 шт. | — | |
|
| 4 | 09106-08185 | BOLT | 2 шт. | — | |
|
| 5 | 56200-41822 | BALANCER SET, HANDLEBAR Includes Item(s) 6 - 9 | 2 шт. | — | |
|
| 6 | 02122-0640B | SCREW | 2 шт. | — | |
|
| 7 | 09160-06131 | WASHER | 2 шт. | — | |
|
| 8 | 56272-10G00 | EXPANDER | 2 шт. | — | |
|
| 9 | 56273-10G10 | NUT | 2 шт. | — | |
|
| 10 | 56500-41G21 | MIRROR ASSY, REAR VIEW RH | 1 шт. | — | |
|
| 11 | 56600-41G21 | MIRROR ASSY, REAR VIEW LH | 1 шт. | — | |
|
| 12 | 94575-37H00 | CUSHION, RH | 1 шт. | — | |
|
| 13 | 94576-37H00 | CUSHION, LH | 1 шт. | — | |
|
| 14 | 56619-41G01 | NUT,RR VIEW MIRROR | 4 шт. | — | |
|
| 15 | 58200-37H00 | CABLE ASSY, CLUTCH | 1 шт. | — | |
|
| 16 | 58621-37H00 | GUIDE, CLUTCH CABLE | 0 шт. | — | |
|
| 17 | 01547-0612A | BOLT, CLUTCH GUIDE | 1 шт. | — | |
|
| 18 | 09407-17403 | CLAMP | 1 шт. | — | |
|
| 19 | 58300-37H00 | CABLE ASSY, THROTTLE NO.1 | 1 шт. | — | |
|
| 20 | 58300-37H10 | CABLE ASSY, THROTTLE NO.2 | 1 шт. | — | |
|
| 21 | 02142-0510B | SCREW, CASE | 1 шт. | — | |
|
| 22 | 58622-37H00 | GUIDE, THROTTLE | 1 шт. | — | |
|
| 23 | 01550-0520A | BOLT | 2 шт. | — | |
|
