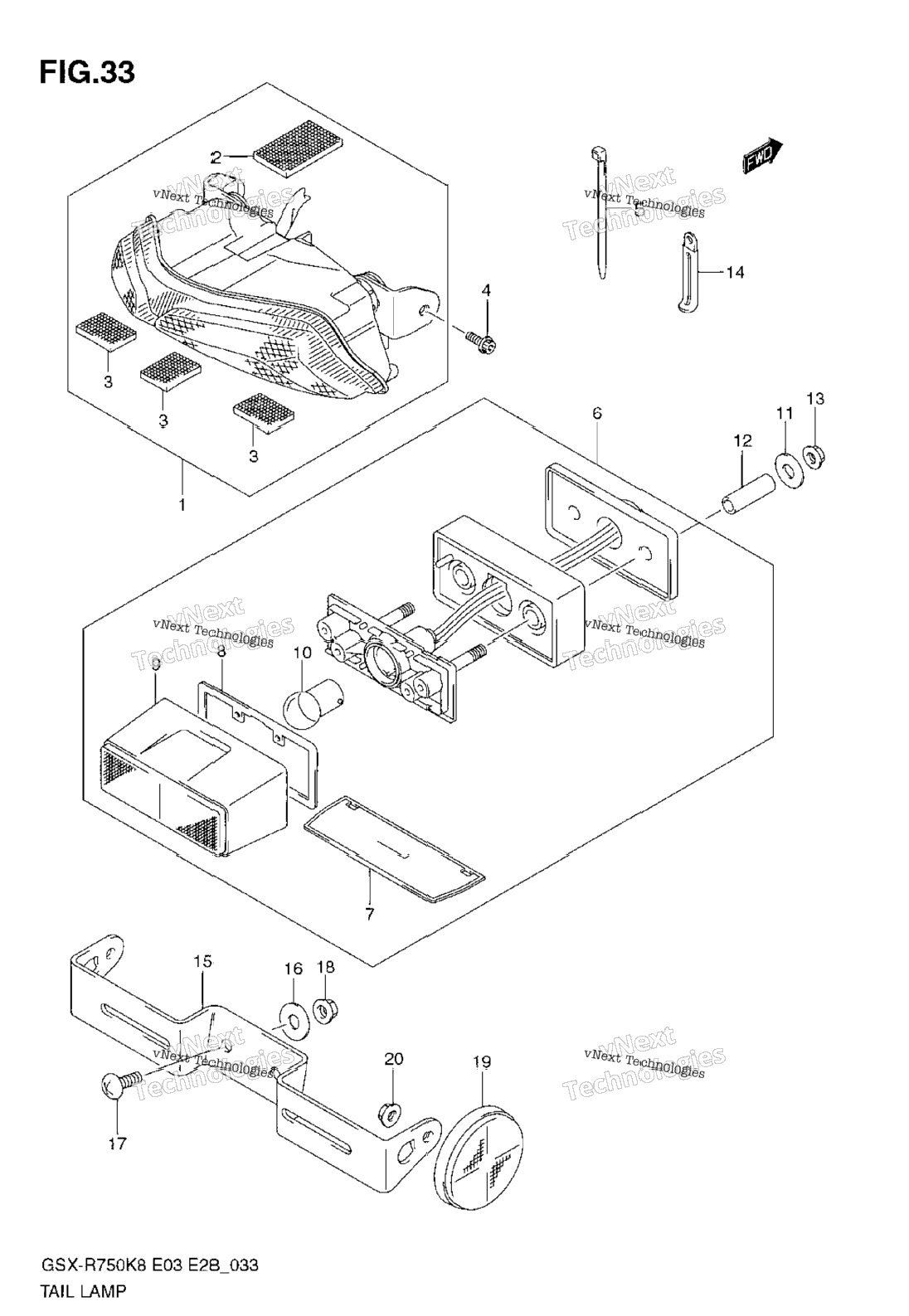

| 1 | 35710-37H30 | LAMP ASSY, REAR COMBINATION Includes Item(s) 2 - 3 | 1 шт. | — | |
|
| 2 | 44572-13G10 | FASTENER, REAR COMBINATION | 1 шт. | — | |
|
| 3 | 47912-37H00 | FASTENER, REAR COMBINATION | 3 шт. | — | |
|
| 4 | 09106-05031 | SCREW (5X12) | 2 шт. | — | |
|
| 5 | 09407-14407 | CLAMP (L:145) | 2 шт. | — | |
|
| 6 | 35910-41G30 | LAMP ASSY, LICENSE Includes Item(s) 7 - 10 | 1 шт. | — | |
|
| 7 | 35912-41G00 | LENS | 1 шт. | — | |
|
| 8 | 35913-41G00 | GASKET | 1 шт. | — | |
|
| 9 | 35917-41G00 | COVER | 1 шт. | — | |
|
| 10 | 09471-12140 | BULB (12V5W,BF150-40160A) | 1 шт. | — | |
|
| 11 | 09160-06077 | WASHER (6.5X20X1.2) | 2 шт. | — | |
|
| 12 | 09180-06278 | SPACER (6.5X9X33.3) | 2 шт. | — | |
|
| 13 | 08316-1006A | NUT | 2 шт. | — | |
|
| 14 | 09404-06429 | CLAMP (L:45) | 1 шт. | — | |
|
| 15 | 35927-41G30 | BRACKET, LICENSE PLATE | 1 шт. | — | |
|
| 16 | 09160-06077 | WASHER (6.5X20X1.2) | 1 шт. | — | |
|
| 17 | 02142-0616A | .SCREW | 2 шт. | — | |
|
| 18 | 08316-1006A | NUT, BRK | 2 шт. | — | |
|
| 19 | 35970-14A20 | REFLECTOR ASSY,REAR SIDE | 2 шт. | — | |
|
| 20 | 08316-1005A | NUT, REAR SIDE RR | 2 шт. | — | |
|
