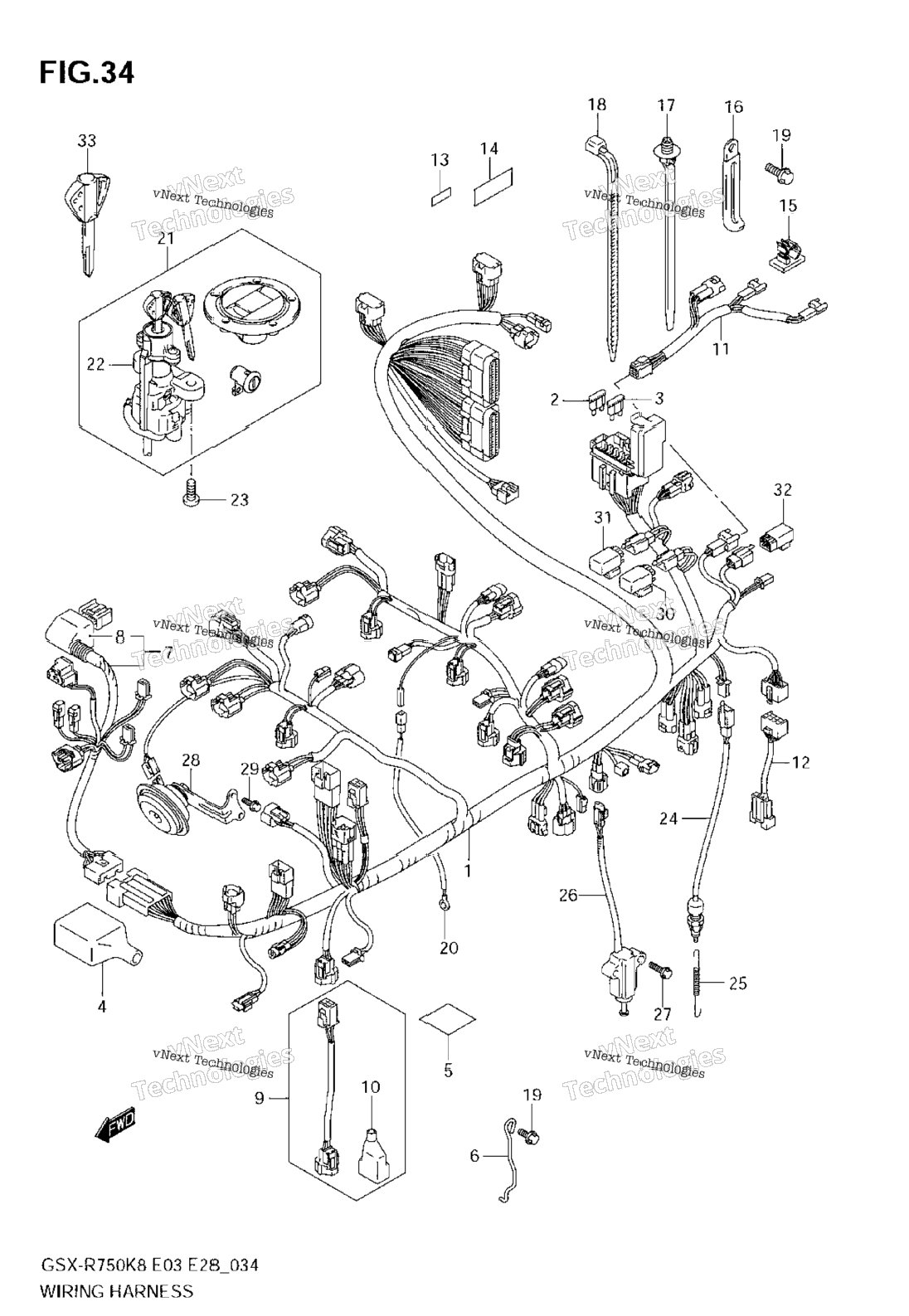

| 1 | 36610-37H30 | HARNESS, WIRING NO.1 Includes Item(s) 2 - 4 | 1 шт. | — | |
|
| 2 | 09481-10501 | FUSE (10A) | 3 шт. | — | |
|
| 3 | 09481-15501 | FUSE (15A) | 3 шт. | — | |
|
| 4 | 36618-18G00 | BOOT | 0 шт. | — | |
|
| 5 | 33652-29F00 | PROTECTOR, HARNESS (30X80X1) CUT AS REQUIRED (30X30) | 1 шт. | — | |
|
| 6 | 36619-37H00 | GUIDE, WIRING HARNESS | 0 шт. | — | |
|
| 7 | 36620-37H00 | HARNESS, WIRING NO.2 Includes Item(s) 8 | 1 шт. | — | |
|
| 8 | 36618-41G00 | COVER, SPEEDOMETER | 0 шт. | — | |
|
| 9 | 36854-37H00 | WIRE, ACTUATOR LEAD Includes Item(s) 10 | 0 шт. | — | |
|
| 10 | 13311-01H10 | BOOT | 1 шт. | — | |
|
| 11 | 36855-37H00 | WIRE, REAR COMB | 1 шт. | — | |
|
| 12 | 36857-37H00 | WIRE, RELAY LEAD | 1 шт. | — | |
|
| 13 | 36920-37H00 | PROTECTOR,WIRING HARNESS (10X | 0 шт. | — | |
|
| 14 | 36920-45G00 | PROTECTOR (20X50X2.0) | 1 шт. | — | |
|
| 15 | 09403-06310 | CLAMP | 0 шт. | — | |
|
| 16 | 09404-06429 | CLAMP (L:45) | 4 шт. | — | |
|
| 17 | 09407-17403 | CLAMP (L:170) | 2 шт. | — | |
|
| 18 | 09407-14403 | CLAMP (L:125) | 3 шт. | — | |
|
| 19 | 01550-0612A | BOLT | 2 шт. | — | |
|
| 20 | 36851-01H00 | WIRE, OIL PRESSURE LEAD | 1 шт. | — | |
|
| 21 | 37101-40820 | LOCK SET | 1 шт. | — | |
|
| 22 | 37101-40840 | LOCK SET E33; Includes Item(s) 22 | 1 шт. | — | |
|
| 23 | 37100-41G10 | LOCK ASSY, STEERING | 1 шт. | — | |
|
| 24 | 09139-08016 | SCREW, STEERING LOCK | 2 шт. | — | |
|
| 25 | 37740-45D00 | SWITCH ASSY, STOP LAMP | 1 шт. | — | |
|
| 26 | 09443-06087 | SPRING | 1 шт. | — | |
|
| 27 | 37840-35F10 | SWITCH ASSY, SIDE STAND | 1 шт. | — | |
|
| 28 | 01550-0616A | BOLT | 2 шт. | — | |
|
| 29 | 38500-37H00 | HORN ASSY | 1 шт. | — | |
|
| 30 | 01550-0616A | BOLT | 2 шт. | — | |
|
| 31 | 38740-24X50 | RELAY ASSY, FAN MOTOR | 1 шт. | — | |
|
| 32 | 38740-24X50 | RELAY ASSY, FUEL PUMP | 1 шт. | — | |
|
| 33 | 38740-39G00 | RELAY ASSY, HEAD LAMP | 1 шт. | — | |
|
| 34 | 37146-41G00 | KEY,BLANK (IMMOBI) OPT | 1 шт. | — | |
|
