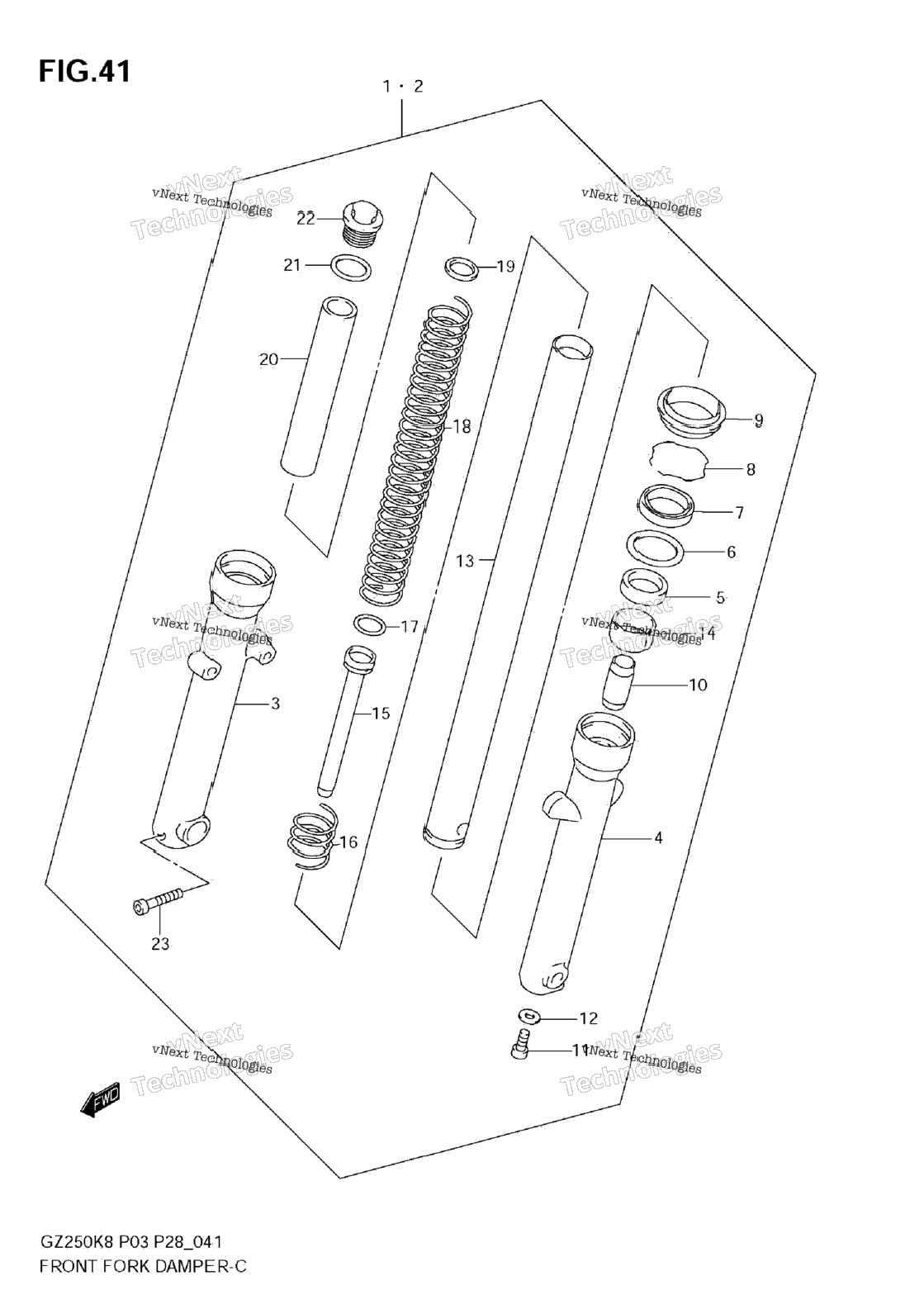

| 1 | 51103-12FA0 | DAMPER ASSY, FRONT FORK RH | 0 шт. | — | |
|
| 2 | 51104-12FA0 | DAMPER ASSY, FRONT FORK LH | 0 шт. | — | |
|
| 3 | 51130-12FA0 | TUBE, OUTER RH | 0 шт. | — | |
|
| 4 | 51140-12FA0 | TUBE, OUTER LH | 0 шт. | — | |
|
| 5 | 51152C12F00J000 | BUSH, GUIDE | 0 шт. | — | |
|
| 6 | 51168-12FA0 | SPACER, SEAL | 2 шт. | — | |
|
| 7 | 51153C25D00J000 | SEAL, OIL | 2 шт. | — | |
|
| 8 | 51556-12FA0 | RING, STOPPER | 2 шт. | — | |
|
| 9 | 51173C25D00J000 | SEAL, DUST | 2 шт. | — | |
|
| 10 | 51195C25D00J000 | PIECE, OIL LOCK | 2 шт. | — | |
|
| 11 | 51147C42AA0J000 | BOLT | 0 шт. | — | |
|
| 12 | 51148C31030J000 | GASKET | 0 шт. | — | |
|
| 13 | 51110-12FA0 | TUBE, INNER | 2 шт. | — | |
|
| 14 | 51121-12FA0 | BUSH, SLIDE | 2 шт. | — | |
|
| 15 | 51146-12FA0 | PIPE, SEAT | 0 шт. | — | |
|
| 16 | 51177-12FA0 | SPRING, REBOUND | 0 шт. | — | |
|
| 17 | 51196-12FA0 | RING, PISTON | 2 шт. | — | |
|
| 18 | 51171-12FA0 | SPRING, FRONT | 2 шт. | — | |
|
| 19 | 51192-12FA0 | JOINT, SPRING | 0 шт. | — | |
|
| 20 | 51176C25D00J000 | COLLAR, SPRING | 2 шт. | — | |
|
| 21 | 51117C25D00J000 | O RING | 2 шт. | — | |
|
| 22 | 51189-12FA0 | BOLT, FORK | 2 шт. | — | |
|
| 23 | 51166-12FA0 | BOLT, RH (8X35) | 1 шт. | — | |
|
