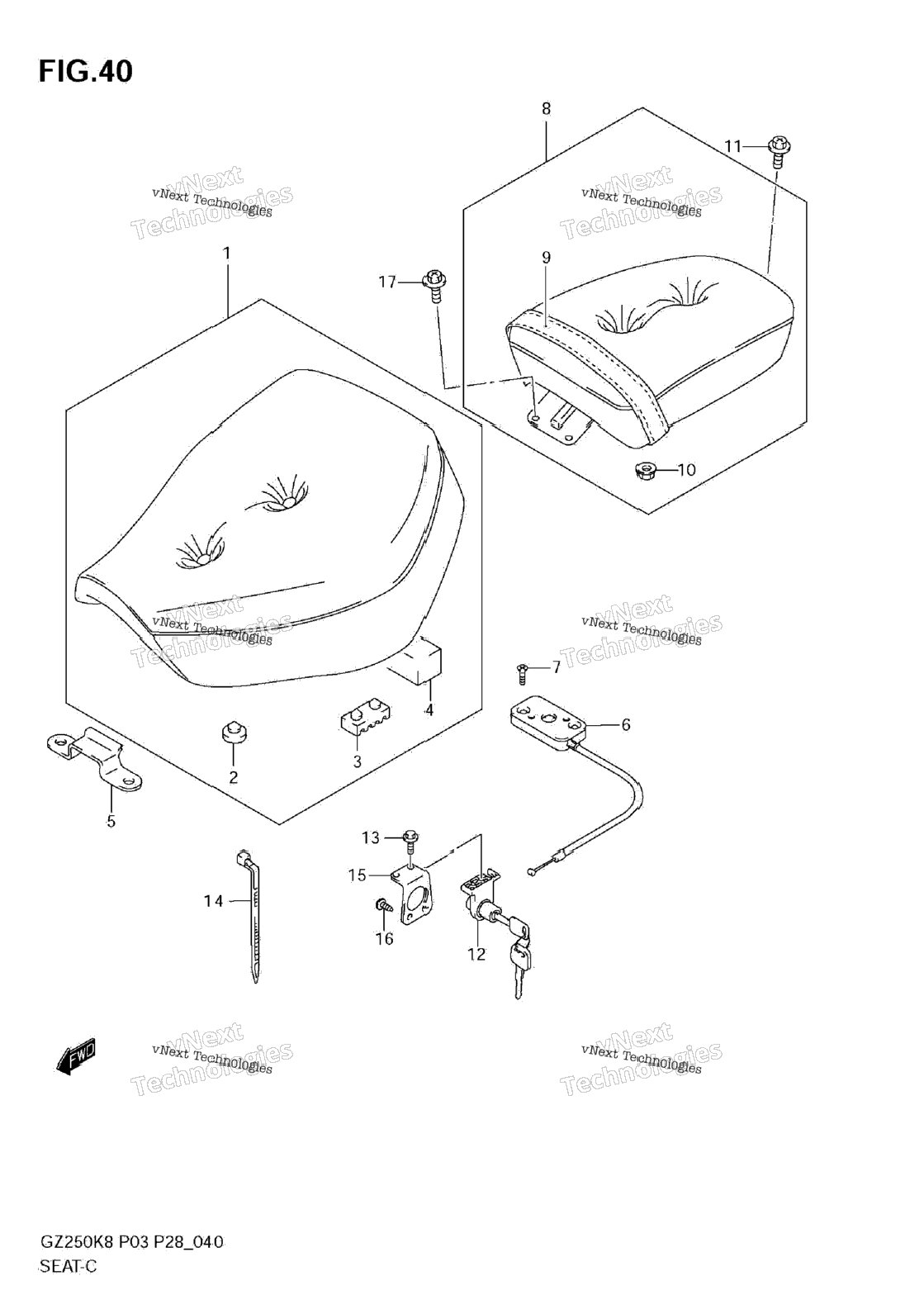

| 1 | 45100-12FA0-K9C | SEAT ASSY | 0 шт. | — | |
|
| 2 | 45148-12FA0 | CUSHION, FRONT | 2 шт. | — | |
|
| 3 | 45147-12FA0 | CUSHION, REAR | 2 шт. | — | |
|
| 4 | 45149-12FA0 | CUSHION, TOOL | 0 шт. | — | |
|
| 5 | 45119-12F00 | PLATE, FRONT SEAT HOOK | 1 шт. | — | |
|
| 6 | 45220-12F00 | BRACKET, FRONT SEAT | 1 шт. | — | |
|
| 7 | 02122-0625B | SCREW | 2 шт. | — | |
|
| 8 | 45300-12FA0-K9C | SEAT ASSY, PILLION | 1 шт. | — | |
|
| 9 | 45180-12FA0-T65 | BAND, SEAT | 0 шт. | — | |
|
| 10 | D8316-1006A | NUT | 0 шт. | — | |
|
| 11 | 09106-08140 | BOLT, REAR (8X16) | 1 шт. | — | |
|
| 12 | 95700-31841 | LOCK SET, SEAT MODEL K8 | 1 шт. | — | |
|
| 13 | 95700-31C00 | LOCK SET, SEAT MODEL K9/L0 | 0 шт. | — | |
|
| 14 | 01547-0510B | BOLT | 2 шт. | — | |
|
| 15 | 09407-22403 | CLAMP | 0 шт. | — | |
|
| 16 | 45289-03F00 | BRACKET, SEAT LOCK | 0 шт. | — | |
|
| 17 | D3111-0413B | SCREW | 0 шт. | — | |
|
| 18 | 09106-06061 | BOLT, FRONT (6X12) | 2 шт. | — | |
|
