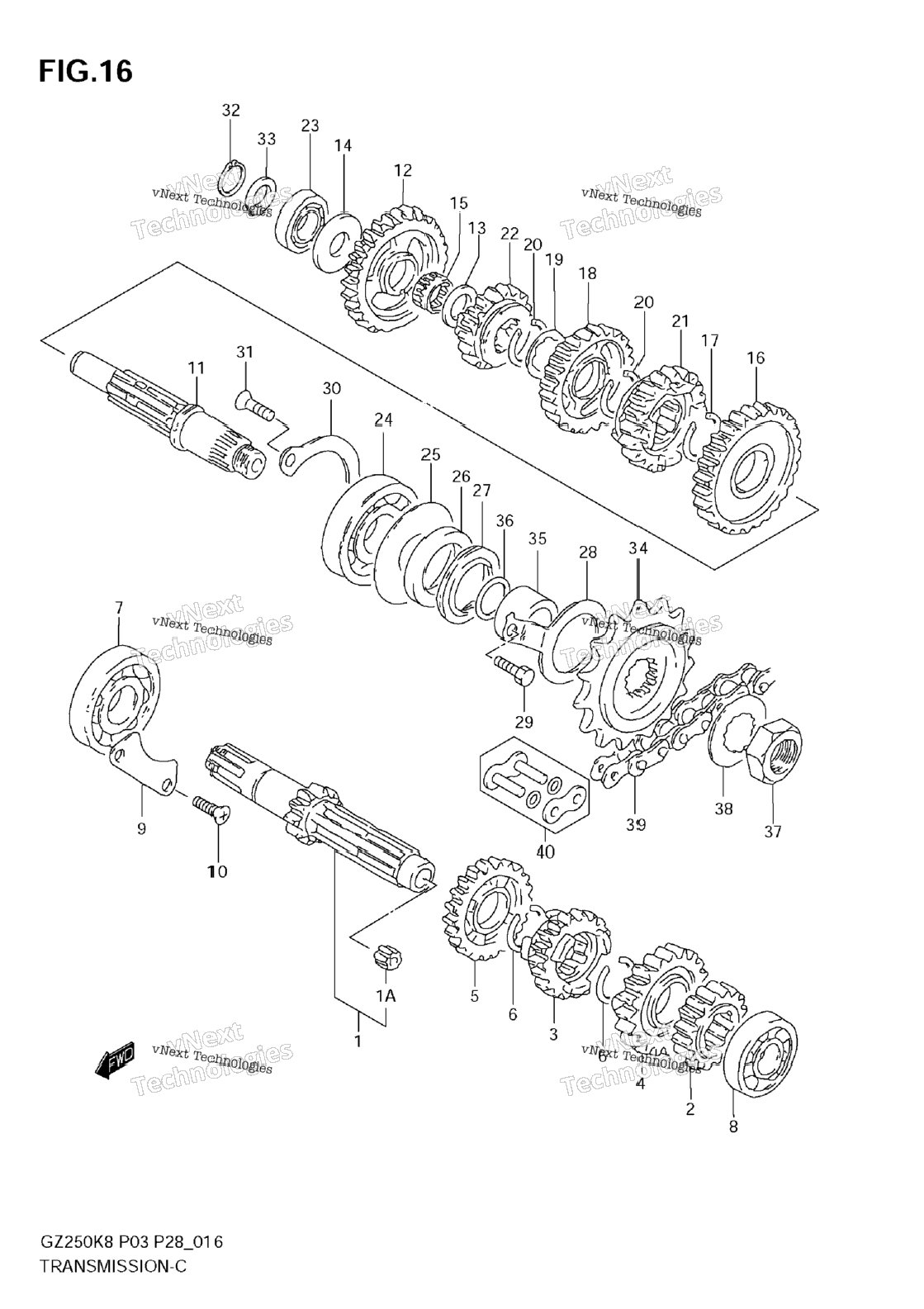

| 1 | 24120-38203 | SHAFT, COUNTER (NT:11) | 1 шт. | — | |
|
| 2 | 24125-38201 | BUSH | 1 шт. | — | |
|
| 3 | 24221-32412 | GEAR, 2ND DRIVE (NT:16) | 1 шт. | — | |
|
| 4 | 24231-38201 | GEAR, 3RD DRIVE (NT:19) | 1 шт. | — | |
|
| 5 | 24241-32401 | GEAR, 4TH DRIVE (NT:20) | 1 шт. | — | |
|
| 6 | 24251-32420 | GEAR, 5TH DRIVE (NT:22) | 1 шт. | — | |
|
| 7 | 09380-22006 | CIRCLIP | 2 шт. | — | |
|
| 8 | 09262-22028 | BEARING, RH (22X56X16) | 1 шт. | — | |
|
| 9 | 09262-17046 | BEARING, LH (17X40X12) | 1 шт. | — | |
|
| 10 | 24741-38200 | RETAINER, BEARING | 0 шт. | — | |
|
| 11 | 09125-06110 | SCREW (6X12) | 2 шт. | — | |
|
| 12 | 24130-38301 | SHAFT, DRIVE | 0 шт. | — | |
|
| 13 | 24311-32401 | GEAR, 1ST DRIVEN (NT:29) | 0 шт. | — | |
|
| 14 | 09181-17195 | WASHER (17X28X1.0) | 1 шт. | — | |
|
| 15 | 08211-17363 | THRUST WASHER | 0 шт. | — | |
|
| 16 | 09263-17004 | BEARING (17X21X9.8) | 1 шт. | — | |
|
| 17 | 24320-32411 | GEAR, 2ND DRIVEN (NT:27) | 1 шт. | — | |
|
| 18 | 09380-22006 | CIRCLIP | 1 шт. | — | |
|
| 19 | 24330-38202 | GEAR, 3RD DRIVEN (NT:24) | 1 шт. | — | |
|
| 20 | 09167-22011 | LOCK WASHER | 1 шт. | — | |
|
| 21 | 09380-22006 | CIRCLIP | 2 шт. | — | |
|
| 22 | 24341-38201 | GEAR, 4TH DRIVEN (NT:20) | 1 шт. | — | |
|
| 23 | 24351-38201 | GEAR, 5TH DRIVEN (NT:18) | 1 шт. | — | |
|
| 24 | 09264-17001 | BEARING (17X36X12) | 1 шт. | — | |
|
| 25 | 09262-22013 | BEARING (22X56X16) | 1 шт. | — | |
|
| 26 | 09160-35007 | WASHER (35X55X1) | 1 шт. | — | |
|
| 27 | 09282-30004 | OIL SEAL (30X43X5) | 1 шт. | — | |
|
| 28 | 09283-30041 | OIL SEAL (30X43X7) | 1 шт. | — | |
|
| 29 | 24751-38210 | RETAINER, OIL SEAL | 1 шт. | — | |
|
| 30 | 01500-0612B | BOLT | 2 шт. | — | |
|
| 31 | 24752-32400 | RETAINER, BEARING | 0 шт. | — | |
|
| 32 | 02122-06011 | SCREW | 0 шт. | — | |
|
| 33 | 08331-3117A | CIRCLIP | 1 шт. | — | |
|
| 34 | 09181-17139 | WASHER (17X24X1.0) | 1 шт. | — | |
|
| 35 | 27510C25D00J000 | SPROCKET, ENGINE (NT:15) | 1 шт. | — | |
|
| 36 | 27531-38300 | SPACER | 1 шт. | — | |
|
| 37 | 09280-21008 | O RING (D:2.5, ID:21) | 1 шт. | — | |
|
| 38 | 09140-18008 | NUT | 1 шт. | — | |
|
| 39 | 09167-22012 | WASHER LOCK (22.5X40.3X0.8) | 1 шт. | — | |
|
| 40 | 27600C14A10J110 | CHAIN ASSY (DID520VC5, 110LE) | 1 шт. | — | |
|
| 41 | 27620C14A10J000 | JOINT SET OPT | 0 шт. | — | |
|
