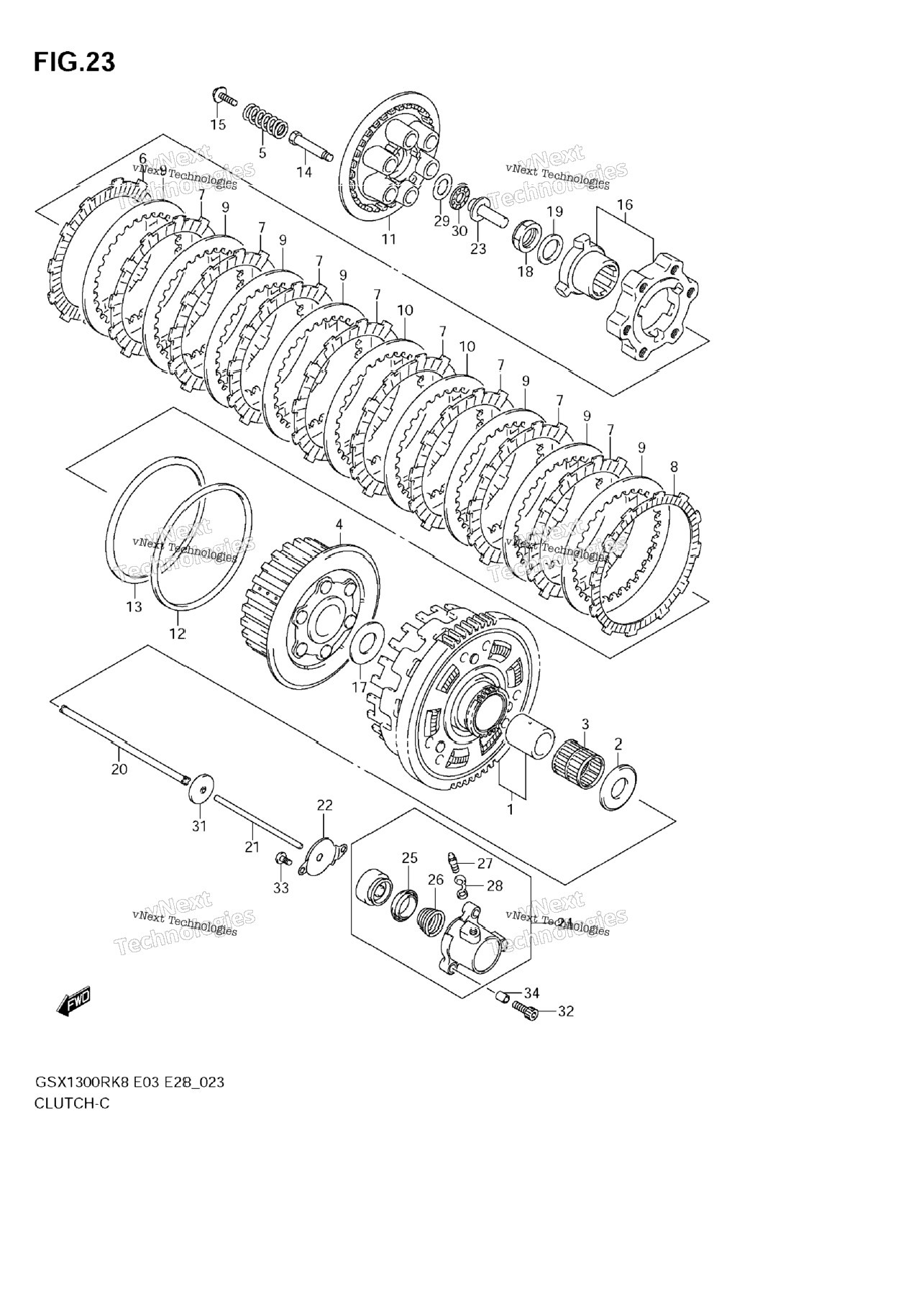

| 1 | 21200-24810 | GEAR ASSY,PRI DRIVEN (NT:83) NT:83 | 1 шт. | — | |
|
| 2 | 09160-25073 | WASHER, PRI DRIVEN GEAR 25X54X2.4 | 1 шт. | — | |
|
| 3 | 09263-35013 | BEARING, PRIMARY DRIVEN 35X40X39.8 | 1 шт. | — | |
|
| 4 | 21410-24F00 | HUB, CLUTCH SLEEVE | 1 шт. | — | |
|
| 5 | 21413-24F30 | SPRING, CLUTCH | 6 шт. | — | |
|
| 6 | 21441-24F10 | PLATE, CLUTCH DRIVE NO.2 T:3.8 | 1 шт. | — | |
|
| 7 | 21441-24F30 | PLATE, CLUTCH DRIVE NO.1 T:3.0 | 8 шт. | — | |
|
| 8 | 21442-24F00 | PLATE, CLUTCH DRIVE NO.3 T:3.8 | 1 шт. | — | |
|
| 9 | 21451-24F00 | PLATE,CLUTCH DRIVEN NO.1 (T:2 T:2.0 | 7 шт. | — | |
|
| 10 | 21451-24F10 | PLATE, CLUTCH DRIVEN NO.2 T:2.3 | 2 шт. | — | |
|
| 11 | 21462-24F00 | DISC, CLUTCH PRESSURE | 1 шт. | — | |
|
| 12 | 21471-24F00 | SEAT, WAVE WASHER | 1 шт. | — | |
|
| 13 | 21472-06G00 | WASHER,CLUTCH PLATE WAVE | 1 шт. | — | |
|
| 14 | 21481-24F30 | BOLT, CLUTCH SPRING SUPPORT | 6 шт. | — | |
|
| 15 | 21482-24F30 | BOLT, CLUTCH SPRING | 6 шт. | — | |
|
| 16 | 21610-02F12 | CAM SET, CLUTCH | 1 шт. | — | |
|
| 17 | 09160-25056 | WASHER, CLUTCH SLEEVE HUB 25X50X2.5 | 1 шт. | — | |
|
| 18 | 09159-24010 | NUT, CLUTCH SLEEVE HUB | 1 шт. | — | |
|
| 19 | 09164-24006 | WASHER, CLUTCH SLEEVE HUB | 1 шт. | — | |
|
| 20 | 23110-24F00 | ROD, CLUTCH (L:195.5) | 1 шт. | — | |
|
| 21 | 23111-26D00 | ROD, CLUTCH PUSH (L:132.5) | 1 шт. | — | |
|
| 22 | 23117-46E00 | COVER, CLUTCH RLSE CYL | 1 шт. | — | |
|
| 23 | 23121-31E00 | PIECE, CLUTCH PUSH | 1 шт. | — | |
|
| 24 | 23160-15H00 | CYLINDER, CLUTCH RELEASE Includes Item(s) 25 - 28 | 1 шт. | — | |
|
| 25 | 23163-10F00 | CUP | 1 шт. | — | |
|
| 26 | 23164-10F00 | SPRING | 1 шт. | — | |
|
| 27 | 59121-01A00 | BLEEDER | 1 шт. | — | |
|
| 28 | 59122-01A00 | CAP, BLEEDER | 1 шт. | — | |
|
| 29 | 09160-15045 | WASHER, CLUTCH PUSH PIECE 15.5X28X1.0 | 1 шт. | — | |
|
| 30 | 09263-15003 | BEARING, CLUTCH PUSH PIECE 15X28X2.0 | 1 шт. | — | |
|
| 31 | 09285-06015 | SEAL, CLUTCH PUSH ROD OIL 6X34X5.5 | 1 шт. | — | |
|
| 32 | 07130-0625A | BOLT, CLUTCH RELEASE CYLINDER | 2 шт. | — | |
|
| 33 | 02112-0610A | SCREW, CYL COVER | 2 шт. | — | |
|
| 34 | 04211-09129 | PIN, CLUTCH | 2 шт. | — | |
|
