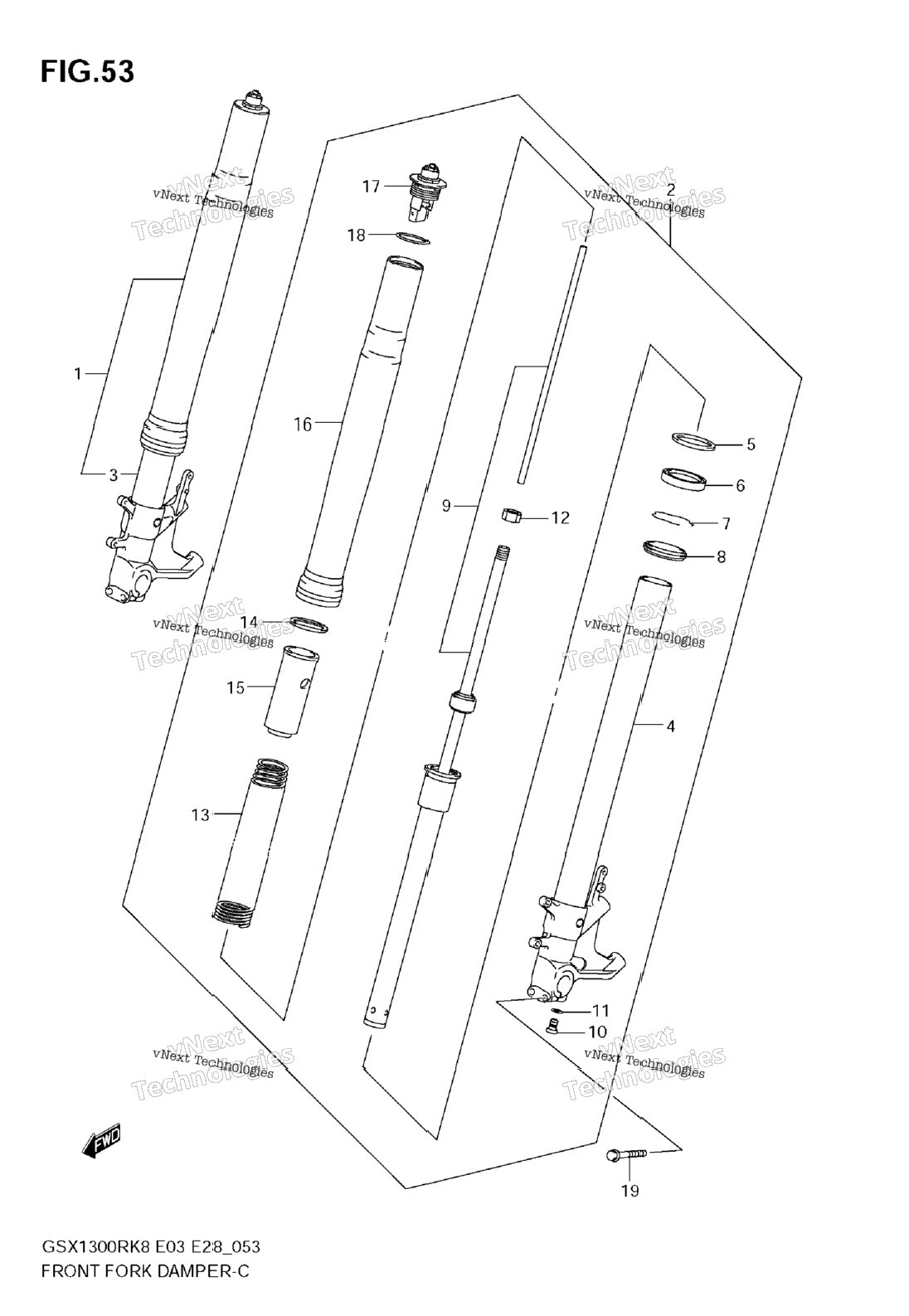

| 1 | 51103-24F50 | DAMPER ASSY, FRONT FORK RH | 1 шт. | — | |
|
| 2 | 51104-24F50 | DAMPER ASSY, FRONT FORK LH Includes Item(s) 3 - 18 | 0 шт. | — | |
|
| 3 | 51110-24F50 | TUBE, INNER RH | 1 шт. | — | |
|
| 4 | 51120-24F50 | TUBE, INNER LH | 1 шт. | — | |
|
| 5 | 51158-14200 | WASHER | 2 шт. | — | |
|
| 6 | 51153-41G00 | SEAL, OIL | 2 шт. | — | |
|
| 7 | 51156-14200 | RING, STOPPER | 2 шт. | — | |
|
| 8 | 51173-41G00 | SEAL, DUST | 2 шт. | — | |
|
| 9 | 51146-24F50 | CYLINDER | 0 шт. | — | |
|
| 10 | 51147-24F50 | BOLT | 2 шт. | — | |
|
| 11 | 51148-41310 | GASKET | 2 шт. | — | |
|
| 12 | 51352-13A60 | NUT | 2 шт. | — | |
|
| 13 | 51171-24F50 | SPRING, FRONT | 2 шт. | — | |
|
| 14 | 51158-40F30 | GUIDE, SPRING | 2 шт. | — | |
|
| 15 | 51176-40F30 | .SPACER, SPRING | 2 шт. | — | |
|
| 16 | 51130-24F50 | TUBE, OUTER (BRONZE) | 2 шт. | — | |
|
| 17 | 51351-24F50 | CAP, FRONT FORK | 0 шт. | — | |
|
| 18 | 62278-14100 | ..O RING | 2 шт. | — | |
|
| 19 | 51166-24F50 | BOLT | 4 шт. | — | |
|
