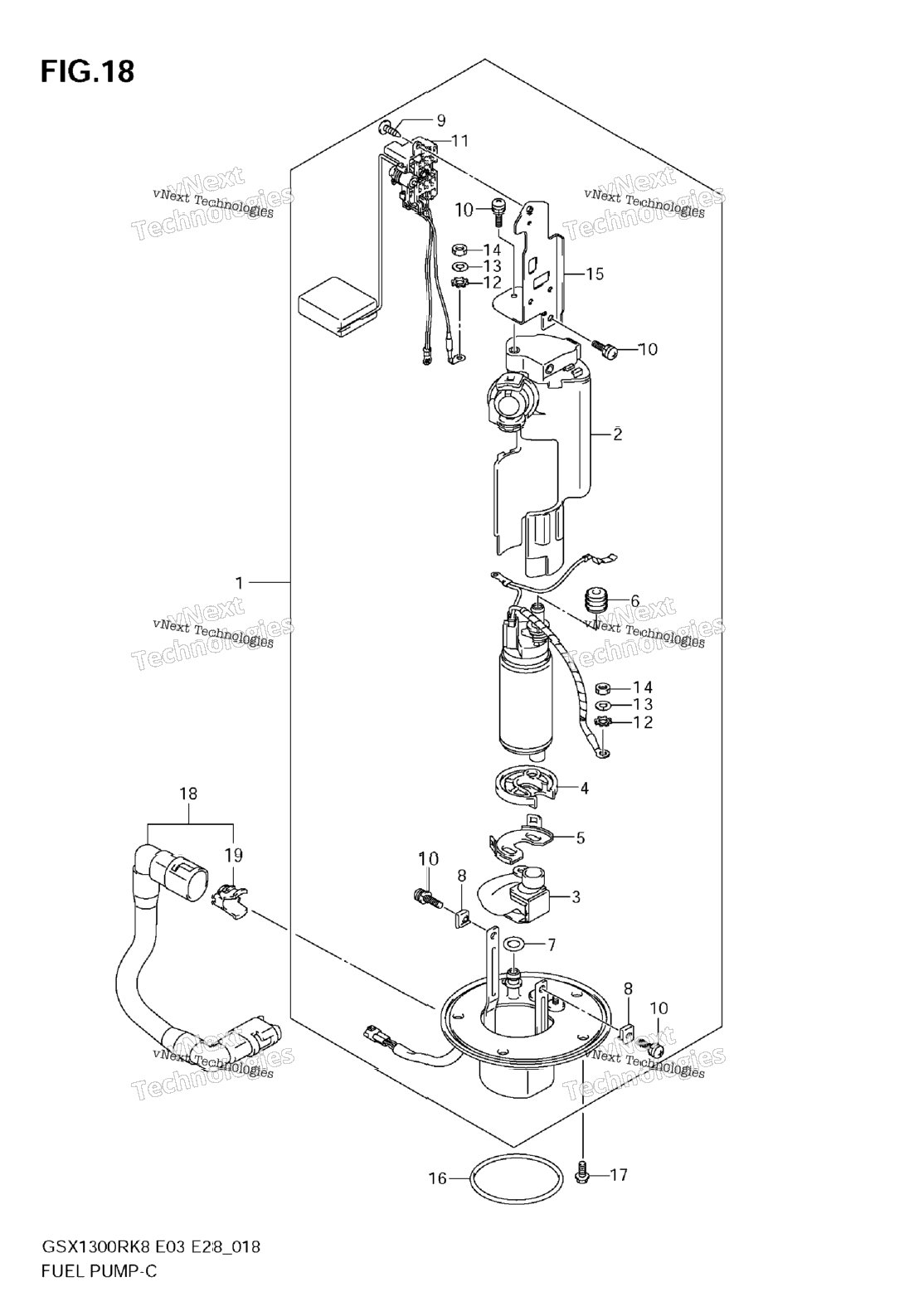

| 1 | 15100-15H00 | PUMP ASSY, FUEL Includes Item(s) 2 - 15 | 1 шт. | — | |
|
| 2 | 15410-41G00 | FILTER ASSY, FUEL | 1 шт. | — | |
|
| 3 | 15420-44G00 | STRAINER, FUEL PUMP | 1 шт. | — | |
|
| 4 | 15111-35F00 | CUSHION, FUEL PUMP | 1 шт. | — | |
|
| 5 | 15112-42F00 | HOLDER, FUEL PUMP | 1 шт. | — | |
|
| 6 | 15114-35F00 | BUSH, FUEL PUMP | 1 шт. | — | |
|
| 7 | 15113-35F00 | .O-RING | 1 шт. | — | |
|
| 8 | 15115-35F00 | NUT | 2 шт. | — | |
|
| 9 | 15116-06G10 | SCREW | 1 шт. | — | |
|
| 10 | 15116-35F10 | SCREW | 4 шт. | — | |
|
| 11 | 34810-15H00 | GAUGE ASSY, FUEL LEVEL | 1 шт. | — | |
|
| 12 | 15171-35F00 | WASHER | 2 шт. | — | |
|
| 13 | 15172-35F00 | SPRING WASHER | 2 шт. | — | |
|
| 14 | 15173-35F00 | NUT | 0 шт. | — | |
|
| 15 | 15181-15H00 | BRACKET, FUEL GAUGE | 0 шт. | — | |
|
| 16 | 15201-35F00 | O RING,FUEL PUMP | 1 шт. | — | |
|
| 17 | 07120-0612A | BOLT | 5 шт. | — | |
|
| 18 | 15810-15H00 | HOSE, FUEL Includes Item(s) 19 | 1 шт. | — | |
|
| 19 | 15815-35F00 | RETAINER | 2 шт. | — | |
|
