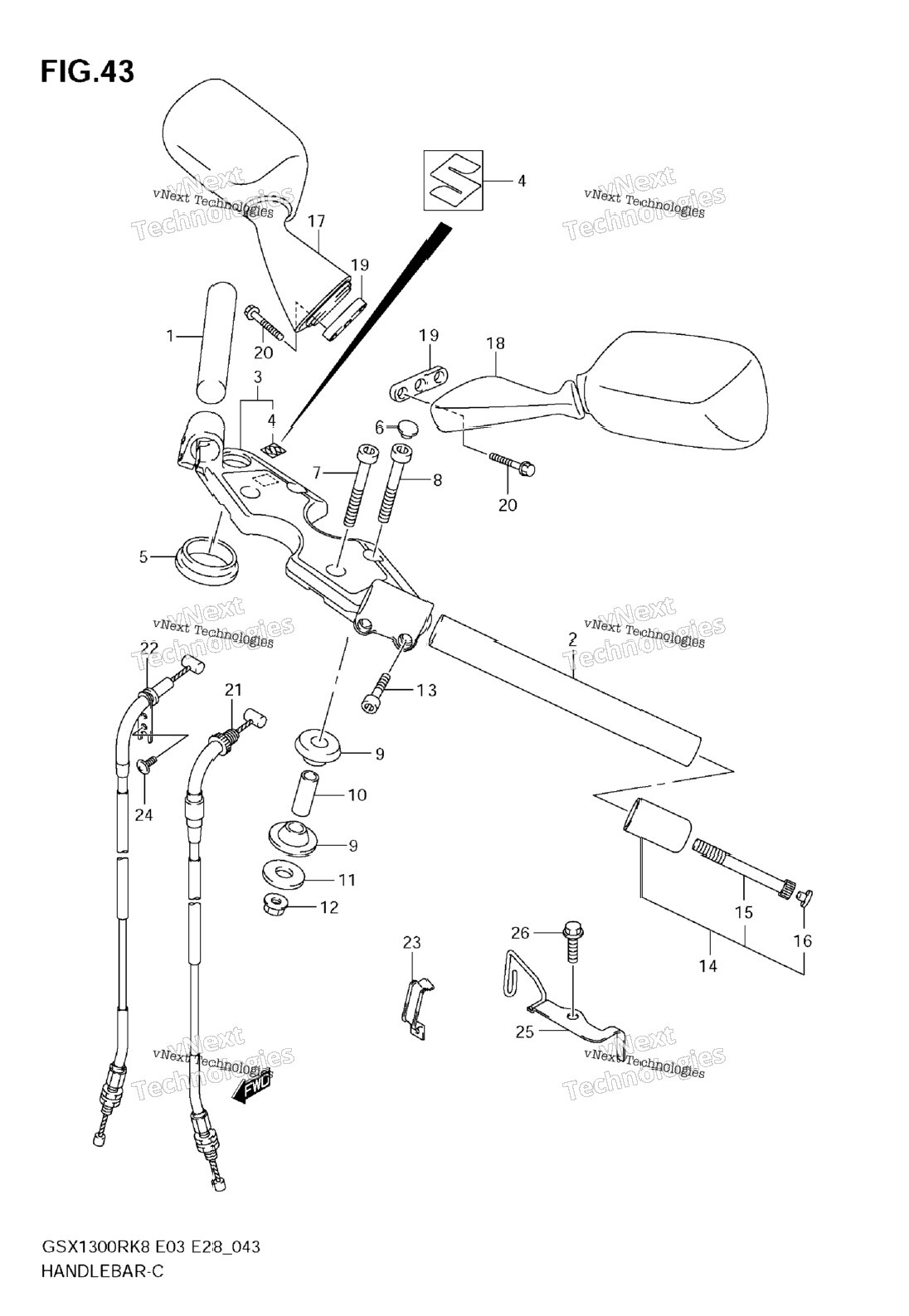

| 1 | 56111-15H00 | HANDLEBAR, RH | 1 шт. | — | |
|
| 2 | 56151-15H00 | HANDLEBAR, LH | 1 шт. | — | |
|
| 3 | 56210-15H00 | HOLDER, HANDLE Includes Item(s) 4 | 1 шт. | — | |
|
| 4 | 68281-35F00 | EMBLEM | 1 шт. | — | |
|
| 5 | 56247-24F00 | CUSHION,HANDLE HOLDER | 2 шт. | — | |
|
| 6 | 56246-24F00 | CAP, BOLT | 4 шт. | — | |
|
| 7 | 07130-1065B | BOLT, FRONT | 2 шт. | — | |
|
| 8 | 07130-1060A | BOLT | 2 шт. | — | |
|
| 9 | 56240-01D00 | CUSHION | 8 шт. | — | |
|
| 10 | 56243-01D00 | SPACER | 4 шт. | — | |
|
| 11 | 09160-10094 | WASHER | 4 шт. | — | |
|
| 12 | 08319-3110A | NUT | 4 шт. | — | |
|
| 13 | 09106-06090 | BOLT, CLAMP | 4 шт. | — | |
|
| 14 | 56200-15830 | BALANCER SET, HANDLEBAR Includes Item(s) 15 - 16 | 2 шт. | — | |
|
| 15 | 07130-0660B | BOLT | 2 шт. | — | |
|
| 16 | 09250-05009 | CAP | 2 шт. | — | |
|
| 17 | 56500-24F00 | MIRROR ASSY, REAR VIEW RH | 1 шт. | — | |
|
| 18 | 56600-24F00 | MIRROR ASSY, REAR VIEW LH | 1 шт. | — | |
|
| 19 | 94576-24F00 | CUSHION | 2 шт. | — | |
|
| 20 | 01547-0630B | BOLT | 4 шт. | — | |
|
| 21 | 58300-15H00 | CABLE ASSY, THROTTLE NO.1 | 1 шт. | — | |
|
| 22 | 58300-15H10 | CABLE ASSY, THROTTLE NO.2 | 1 шт. | — | |
|
| 23 | 58623-24F10 | GUIDE,CABLE | 1 шт. | — | |
|
| 24 | 09125-05042 | SCREW, CASE | 1 шт. | — | |
|
| 25 | 58620-15H00 | GUIDE, CABLE | 1 шт. | — | |
|
| 26 | 01547-0612B | BOLT | 1 шт. | — | |
|
