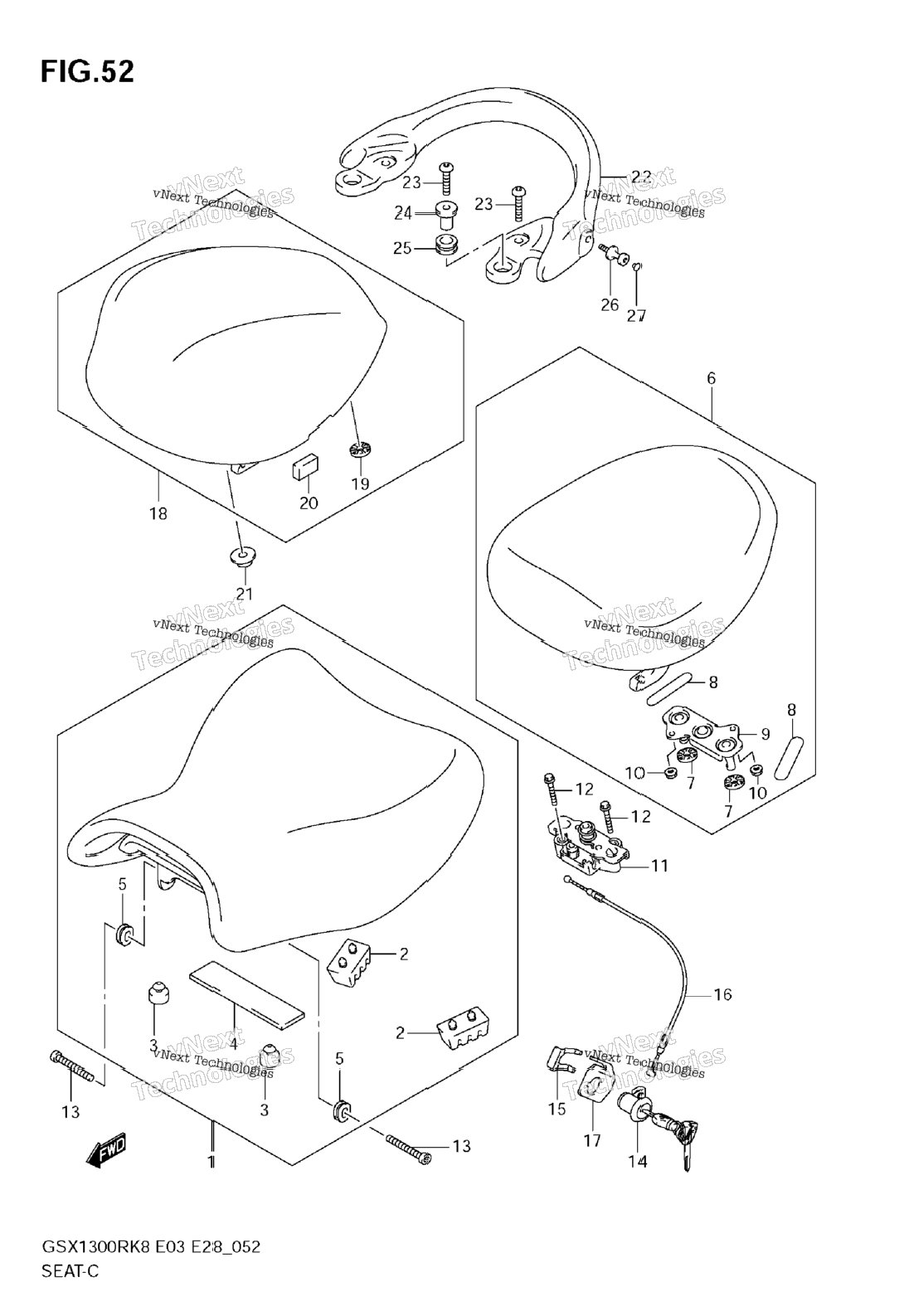

| 1 | 45100-15H00-EJY | SEAT ASSY Includes Item(s) 2 - 5 | 1 шт. | — | |
|
| 2 | 45149-45330 | CUSHION | 2 шт. | — | |
|
| 3 | 09321-10011 | CUSHION | 2 шт. | — | |
|
| 4 | 45117-15H00 | CUSHION | 1 шт. | — | |
|
| 5 | 45118-15H00 | .CUSHION | 2 шт. | — | |
|
| 6 | 45300-15H00-U6H | SEAT ASSY, PILLION (BLACK) Includes Item(s) 7 - 10 | 1 шт. | — | |
|
| 7 | 45213-42F00 | CUSHION | 2 шт. | — | |
|
| 8 | 45149-15H00 | CUSHION | 2 шт. | — | |
|
| 9 | 45290-15H00 | STRIKER, SEAT LOCK | 1 шт. | — | |
|
| 10 | 08319-3106A | NUT | 2 шт. | — | |
|
| 11 | 45220-15H00 | BRACKET, SEAT SUPPORT | 1 шт. | — | |
|
| 12 | 01547-0630A | SCREW | 2 шт. | — | |
|
| 13 | 45191-15H00 | BOLT,SEAT FR | 2 шт. | — | |
|
| 14 | 95700-14810 | LOCK SET,SEAT | 1 шт. | — | |
|
| 15 | 45289-11F00 | PLATE,SEAT LOCK ASSY | 1 шт. | — | |
|
| 16 | 45280-18G00 | CABLE, SEAT LOCK | 1 шт. | — | |
|
| 17 | 45288-14F20 | GUIDE, CABLE | 1 шт. | — | |
|
| 18 | 45550-15H00-YAY | BOX, SEAT TAIL (BLACK) FOR EAJ | 1 шт. | — | |
|
| 19 | 45550-15H00-YHF | BOX, SEAT TAIL (GRAY) FOR CZY | 1 шт. | — | |
|
| 20 | 45550-15H00-YKZ | BOX, SEAT TAIL (BLUE) FOR EAK | 1 шт. | — | |
|
| 21 | 45550-15H00-YPA | BOX, SEAT TAIL (WHITE) FOR EAH; Includes Item(s) 19 - 20 | 1 шт. | — | |
|
| 22 | 45213-42F00 | CUSHION | 2 шт. | — | |
|
| 23 | 45553-15H00 | CUSHION | 2 шт. | — | |
|
| 24 | 47190-24F01 | .WASHER,FRAME COVER | 2 шт. | — | |
|
| 25 | 46211-15H00-YAY | HANDLE, PILLION RIDER (BLACK) FOR EAJ | 1 шт. | — | |
|
| 26 | 46211-15H00-YHF | HANDLE, PILLION RIDER (GRAY) FOR CZY | 0 шт. | — | |
|
| 27 | 46211-15H00-YKZ | HANDLE, PILLION RIDER (BLUE) FOR EAK | 0 шт. | — | |
|
| 28 | 46211-15H00-YPA | HANDLE, PILLION RIDER (WHITE) FOR EAH | 0 шт. | — | |
|
| 29 | 09106-08137 | BOLT | 4 шт. | — | |
|
| 30 | 47190-24F11 | WASHER, PILLION RIDER HDL FR | 2 шт. | — | |
|
| 31 | 46217-24F00 | CUSHION,PILLION RIDER HANDLE | 2 шт. | — | |
|
| 32 | 46212-24F11 | HOOK, HANDLE | 2 шт. | — | |
|
| 33 | 09250-05009 | CAP | 2 шт. | — | |
|
