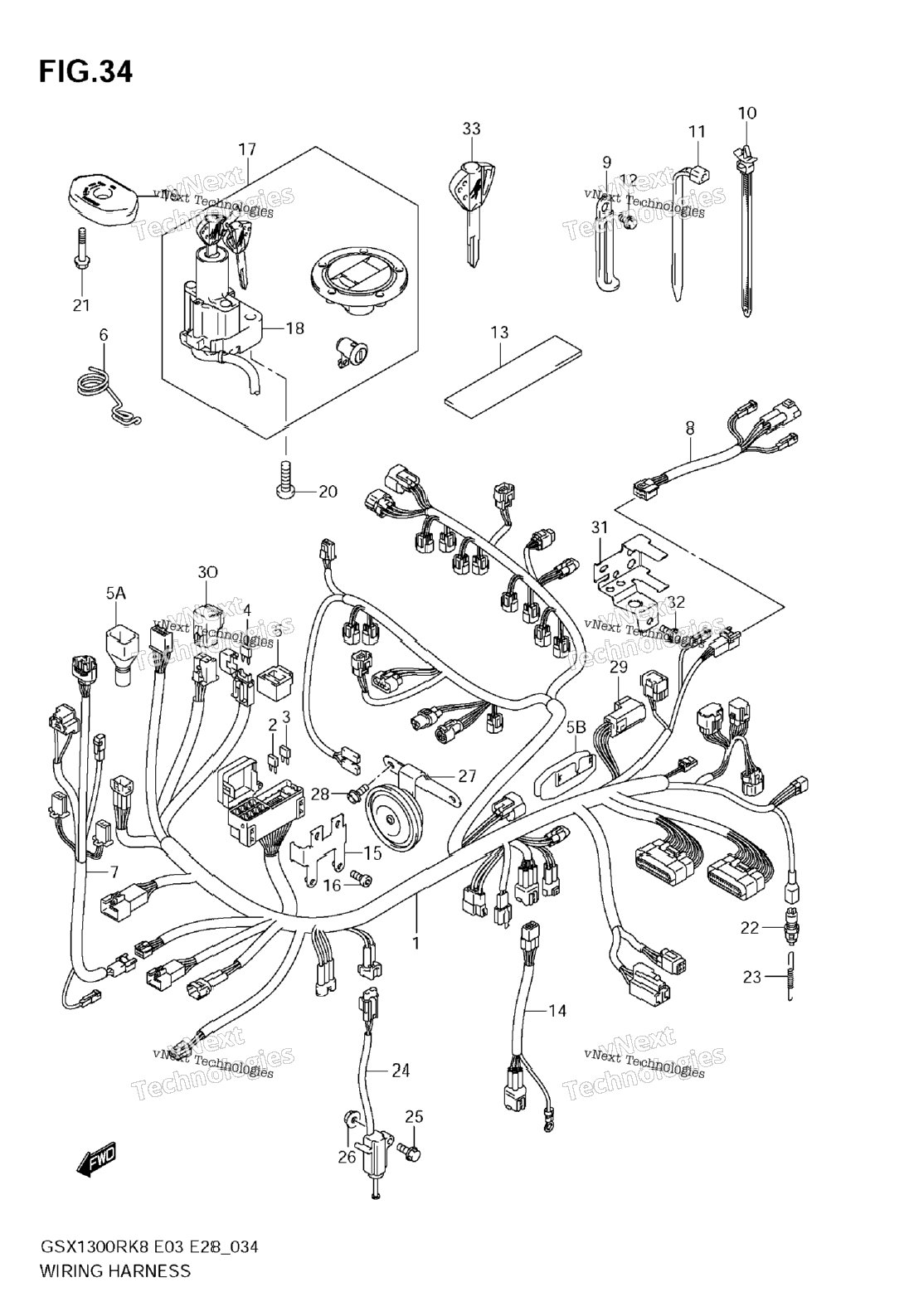

| 1 | 36610-15H30 | HARNESS, WIRING | 1 шт. | — | |
|
| 2 | 36610-15H40 | HARNESS, WIRING E33; Includes Item(s) 2 - 5B | 0 шт. | — | |
|
| 3 | 09481-10501 | FUSE (10A) | 4 шт. | — | |
|
| 4 | 09481-15501 | FUSE (15A) | 2 шт. | — | |
|
| 5 | 09481-15101 | FUSE (15A) | 2 шт. | — | |
|
| 6 | 36742-39D00 | HOLDER | 1 шт. | — | |
|
| 7 | 36618-33E00 | .COVER,SPEEDOMETER COUPLER | 1 шт. | — | |
|
| 8 | 36611-24F00 | PROTECTOR | 0 шт. | — | |
|
| 9 | 36619-15H00 | GUIDE, WIRING HARNESS | 0 шт. | — | |
|
| 10 | 36620-15H00 | HARNESS, WIRING NO.2 | 1 шт. | — | |
|
| 11 | 36857-15H00 | WIRE, REAR COMB | 1 шт. | — | |
|
| 12 | 09404-06429 | CLAMP (L:45) | 4 шт. | — | |
|
| 13 | 09404-06435 | CLAMP (L:135) | 1 шт. | — | |
|
| 14 | 09407-14408 | CLAMP (L:120) | 1 шт. | — | |
|
| 15 | 09407-14403 | CLAMP (L:125) | 7 шт. | — | |
|
| 16 | 09407-18402 | CLAMP (L:165) | 3 шт. | — | |
|
| 17 | 01550-0610A | BOLT, WIRING HARNESS | 1 шт. | — | |
|
| 18 | 36920-45G00 | PROTECTOR, WIRING HARNESS 20X50X2.0 | 1 шт. | — | |
|
| 19 | 36855-15H00 | WIRE, O2 SENSOR | 1 шт. | — | |
|
| 20 | 36744-24F00 | BRACKET, FUSE BOX | 1 шт. | — | |
|
| 21 | 07120-0510B | BOLT, FUSE BOX | 2 шт. | — | |
|
| 22 | 37000-15880 | LOCK SET | 0 шт. | — | |
|
| 23 | 37000-15890 | LOCK SET E33; Includes Item(s) 18 | 1 шт. | — | |
|
| 24 | 37100-15H30 | LOCK ASSY, STEERING | 0 шт. | — | |
|
| 25 | 37180-15H00 | COVER, STEERING LOCK | 1 шт. | — | |
|
| 26 | 09139-08016 | SCREW, STEERING LOCK (8X20) | 2 шт. | — | |
|
| 27 | 01547-0530A | BOLT, IMMOBILIZER | 2 шт. | — | |
|
| 28 | 37740-19F00 | SWITCH ASSY, STOP LAMP | 1 шт. | — | |
|
| 29 | 09443-06012 | SPRING | 1 шт. | — | |
|
| 30 | 37840-24F00 | SWITCH ASSY, SIDE STAND | 1 шт. | — | |
|
| 31 | 09103-08357 | .BOLT (8X35) | 1 шт. | — | |
|
| 32 | 08316-1008B | .NUT | 1 шт. | — | |
|
| 33 | 38500-24F00 | HORN ASSY | 1 шт. | — | |
|
| 34 | 01550-0612B | BOLT, HORN | 2 шт. | — | |
|
| 35 | 38740-26E00 | RELAY ASSY, FUEL PUMP | 1 шт. | — | |
|
| 36 | 38740-26E00 | RELAY ASSY, FAN MOTOR | 1 шт. | — | |
|
| 37 | 38741-24F00 | BRACKET, FUEL PUMP RLY | 1 шт. | — | |
|
| 38 | 01550-0612B | BOLT, FUEL PUMP RLY | 1 шт. | — | |
|
| 39 | 37146-15H00 | KEY, BLANK OPT | 1 шт. | — | |
|
