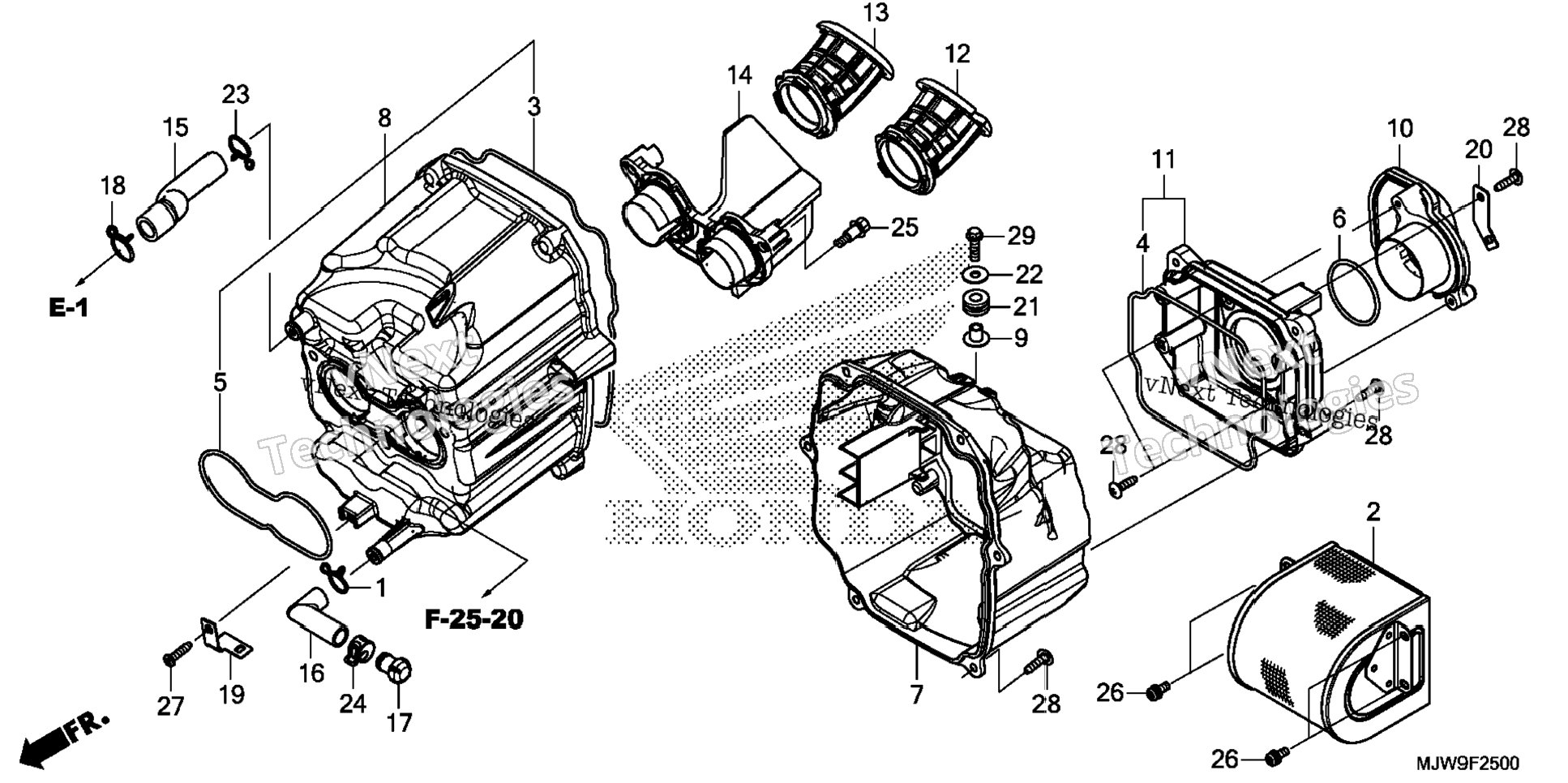

| 1 | 15771-KV6-000 | CLIP, OIL DRAIN TUBE | 1 шт. | — | |
|
| 2 | 17211-MJW-J00 | ELEMENT, AIR CLEANER | 1 шт. | — | |
|
| 3 | 17213-MGZ-D00 | SEAL, AIR CLEANER | 1 шт. | — | |
|
| 4 | 17214-MGZ-D00 | SEAL, AIR CLEANER LID | 1 шт. | — | |
|
| 5 | 17215-MGZ-D00 | SEAL, THROTTLE BODY | 1 шт. | — | |
|
| 6 | 17216-MGZ-D00 | SEAL, AIR CLEANER DUCT | 1 шт. | — | |
|
| 7 | 17220-MGZ-D00 | COVER, AIR CLEANER | 1 шт. | — | |
|
| 8 | 17225-MGZ-D00 | CASE SUB-ASSY., AIR CLEANER | 1 шт. | — | |
|
| 9 | 17232-KYJ-900 | COLLAR, AIR CLEANER MOUNTING | 1 шт. | — | |
|
| 10 | 17240-MJW-J00 | DUCT, AIR CLEANER | 1 шт. | — | |
|
| 11 | 17245-MGZ-D01 | LID SUB-ASSY., AIR CLEANER | 1 шт. | — | |
|
| 12 | 17251-MGZ-A00 | FUNNEL, L. AIR | 1 шт. | — | |
|
| 13 | 17252-MGZ-A00 | FUNNEL, R. AIR | 1 шт. | — | |
|
| 14 | 17253-MGZ-D00 | FUNNEL, AIR | 1 шт. | — | |
|
| 15 | 17265-MGZ-D00 | TUBE, BREATHER | 1 шт. | — | |
|
| 16 | 17366-428-670 | TUBE A, DRAIN | 1 шт. | — | |
|
| 17 | 17370-382-870 | PLUG, BREATHER TUBE | 1 шт. | — | |
|
| 18 | 17724-102-700 | CLIP, SUB-TANK HOSE | 1 шт. | — | |
|
| 19 | 32150-MGZ-J00 | STAY, ENGINE SUB-HARNESS | 1 шт. | — | |
|
| 20 | 32207-MGZ-J00 | STAY, HARNESS | 1 шт. | — | |
|
| 21 | 83545-KCJ-690 | RUBBER, SIDE COVER | 1 шт. | — | |
|
| 22 | 90538-KSH-900 | WASHER, SPECIAL (6MM) | 1 шт. | — | |
|
| 23 | 90646-657-000 | CLIP, AIR HOSE (16MM) | 1 шт. | — | |
|
| 24 | 91406-MS8-000 | CLAMP, TUBE (D14.5) | 1 шт. | — | |
|
| 25 | 91508-MGP-D00 | SCREW, PAN (5MM) | 3 шт. | — | |
|
| 26 | 93893-05012-08 | SCREW-WASHER (5X12) | 4 шт. | — | |
|
| 27 | 93901-25320 | SCREW, TAPPING (5X16) | 1 шт. | — | |
|
| 28 | 93903-25480 | SCREW, TAPPING (5X20) | 13 шт. | — | |
|
| 29 | 96001-06020-04 | BOLT, FLANGE (6X20) | 1 шт. | — | |
|
