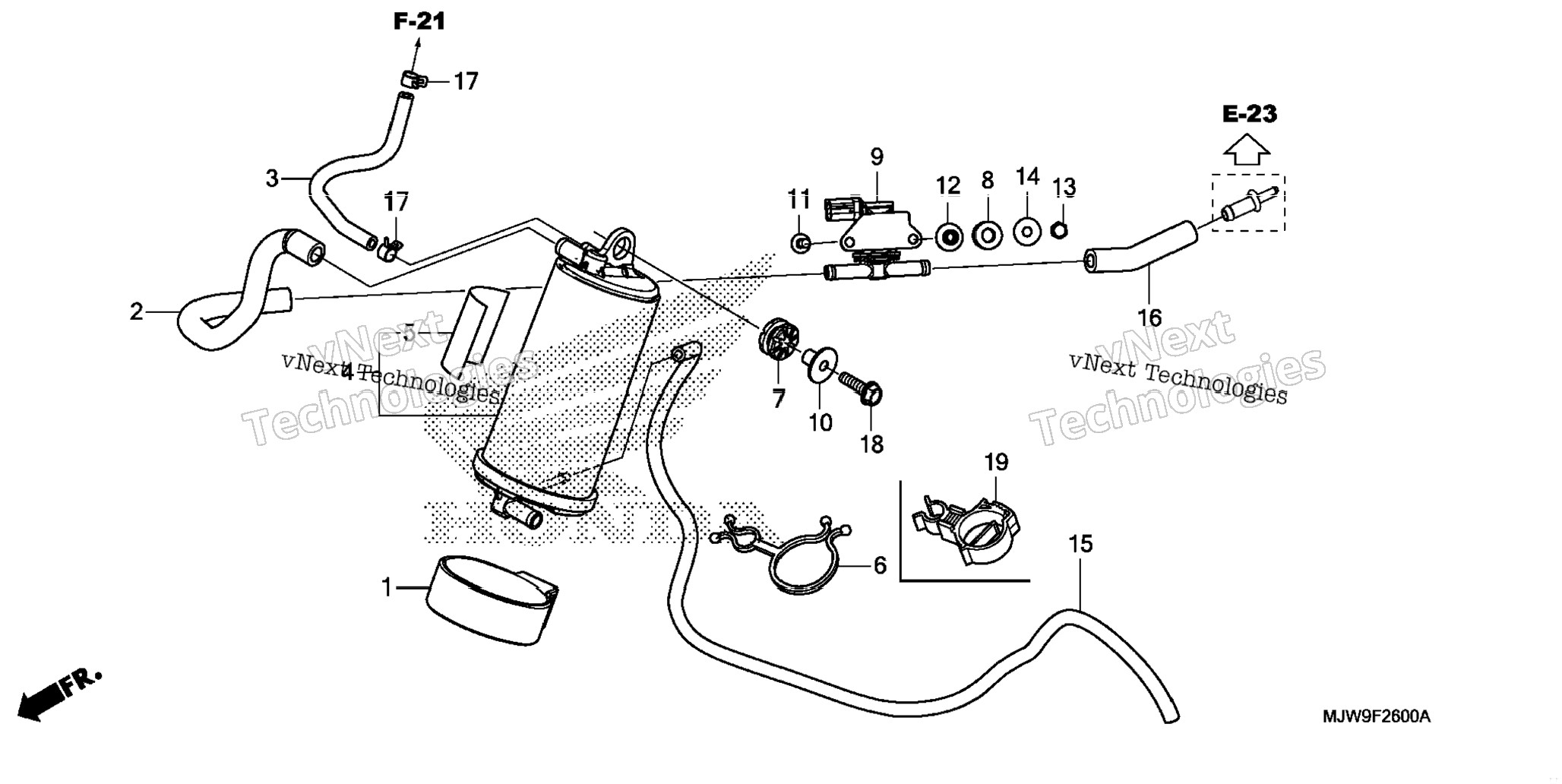

| 1 | 17411-MGZ-A00 | RUBBER, CANISTER MOUNT | 1 шт. | — | |
|
| 2 | 17414-MGZ-A00 | TUBE (PCV-CANISTER) | 1 шт. | — | |
|
| 3 | 17418-MGZ-A00 | TUBE, CANISTER | 1 шт. | — | |
|
| 4 | 17420-MJW-J01 | CANISTER | 1 шт. | — | |
|
| 5 | 17528-KCZ-930 | TAPE B, TANK GUARD | 1 шт. | — | |
|
| 7 | 33115-KVK-900 | RUBBER, HEADLIGHT | 1 шт. | — | |
|
| 8 | 36037-MGZ-A00 | RUBBER, PURGE CONTROL SOLENOID | 2 шт. | — | |
|
| 9 | 36162-MKA-D81 | VALVE, PURGE CONTROL SOLENOID | 1 шт. | — | |
|
| 10 | 61104-428-730 | COLLAR, FR. FENDER (BLACK) (FOR RR.) | 1 шт. | — | |
|
| 10 | 61104-428-010 | COLLAR, FR. FENDER (WHITE) (FOR RR.) | 1 шт. | — | |
|
| 11 | 90002-KWB-600 | BOLT, FLANGE (5X12) | 2 шт. | — | |
|
| 12 | 90505-MGZ-A00 | COLLAR | 2 шт. | — | |
|
| 13 | 94021-05000-0S | NUT, CAP (5MM) | 2 шт. | — | |
|
| 14 | 94103-05800 | WASHER, PLAIN (5MM) | 2 шт. | — | |
|
| 15 | 95001-45003-60M | BULK HOSE, FUEL (4.5X3000) (95001-4500(95001-45001-60M) | 1 шт. | — | |
|
| 16 | 95001-75008-60M | BULK HOSE, FUEL (7.5X8000) (7.3X350) (BULK HOSE: 95001-75008-40M) | 1 шт. | — | |
|
| 17 | 95002-40800-08 | CLAMP, TUBE (D8) | 2 шт. | — | |
|
| 18 | 95701-06022-08 | BOLT, FLANGE (6X22) | 1 шт. | — | |
|
| 19 | 91558-MJW-DB1 | CLIP, WATER HOSE | 1 шт. | — | |
|
