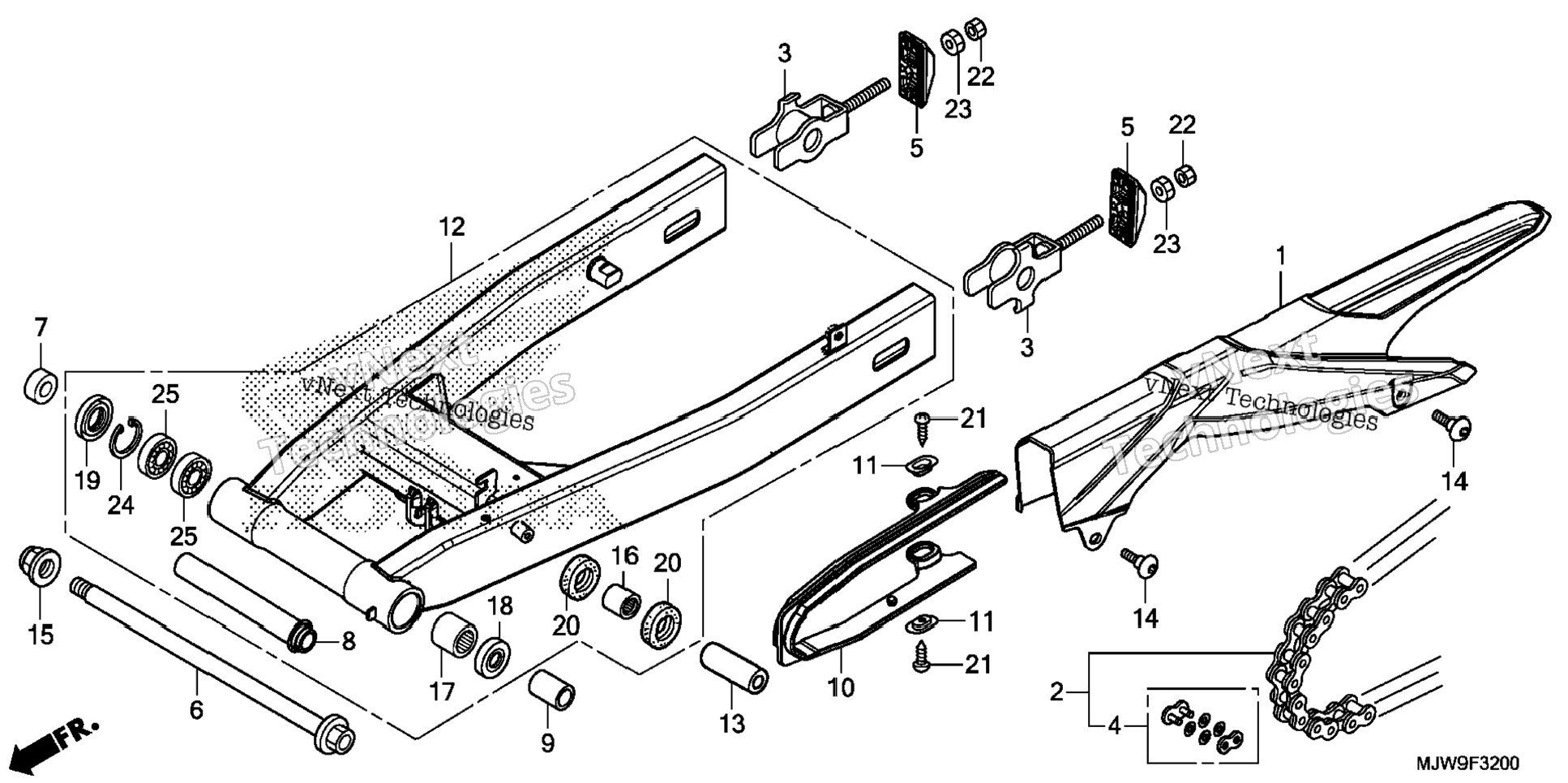

| 1 | 40510-MJW-J00 | CASE, DRIVE CHAIN | 1 шт. | — | |
|
| 2 | 40540-MGS-D31 | CHAIN, DRIVE (DID520V0-120ZB) (DAIDO) (STANDARD LINK 112L) (STANDARD LINK 114L) | 1 шт. | — | |
|
| 3 | 40543-MJW-J00 | ADJUSTER, CHAIN | 2 шт. | — | |
|
| 4 | 40545-MGS-D31 | MASTER LINK (DAIDO) | 1 шт. | — | |
|
| 5 | 40546-MGZ-J00 | CAP, SWINGARM END | 2 шт. | — | |
|
| 6 | 52101-MGZ-J00 | BOLT, SWINGARM PIVOT | 1 шт. | — | |
|
| 7 | 52105-MJ0-000 | COLLAR B, RR. SWINGARM PIVOT | 1 шт. | — | |
|
| 8 | 52141-MGZ-J00 | COLLAR, CENTER PIVOT DISTANCE | 1 шт. | — | |
|
| 9 | 52143-MGZ-J00 | COLLAR, L. PIVOT DISTANCE | 1 шт. | — | |
|
| 10 | 52170-MGZ-J00 | SLIDER, CHAIN | 1 шт. | — | |
|
| 11 | 52171-KR6-000 | WASHER, CHAIN SLIDER | 2 шт. | — | |
|
| 12 | 52200-MGZ-J00 | SWINGARM SUB-ASSY., RR. | 1 шт. | — | |
|
| 13 | 52463-MGZ-J00 | COLLAR, CUSHION CONNECTING ROD | 1 шт. | — | |
|
| 14 | 90115-MGZ-J00 | SCREW, SPECIAL (6X14) | 2 шт. | — | |
|
| 15 | 90305-KCJ-951 | NUT, U (14MM) (FUJI SEIMITSU) | 1 шт. | — | |
|
| 16 | 91071-KV3-005 | BEARING, NEEDLE (KOYO) | 1 шт. | — | |
|
| 17 | 91071-MT7-003 | BEARING, NEEDLE (NTN) | 1 шт. | — | |
|
| 18 | 91202-MAL-601 | DUST SEAL (25X33X4) | 1 шт. | — | |
|
| 19 | 91213-MB2-003 | DUST SEAL (22X35X7) (ARAI) | 1 шт. | — | |
|
| 20 | 91213-MB2-006 | DUST SEAL (22X35X7) (NOK) | 1 шт. | — | |
|
| 21 | 91262-KV3-831 | DUST SEAL (17X24X5) (ARAI) | 2 шт. | — | |
|
| 22 | 93901-25280 | SCREW, TAPPING (5X12) | 2 шт. | — | |
|
| 23 | 94002-080000S | NUT,HEX 8MM | 2 шт. | — | |
|
| 24 | 94030-08000 | NUT, HEX. (8MM) | 2 шт. | — | |
|
| 25 | 94520-35000 | CIRCLIP (INNER) (35MM) | 1 шт. | — | |
|
| 26 | 96100-62020-10 | BEARING, RADIAL BALL (6202) | 2 шт. | — | |
|
