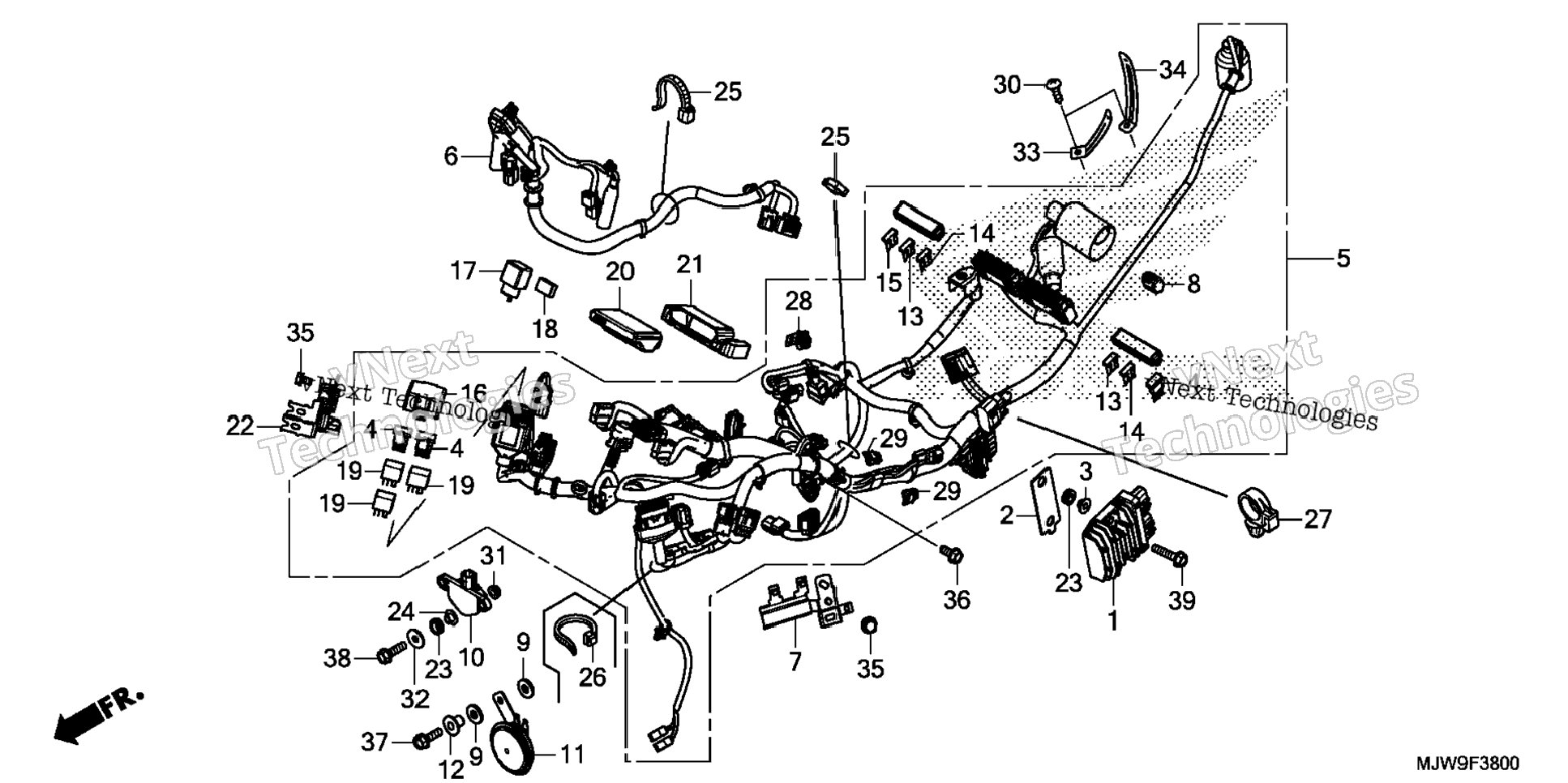

| 1 | 31600-MGZ-J01 | RECTIFIER ASSY., REGULATOR | 1 шт. | — | |
|
| 2 | 31605-MJW-J00 | PLATE, REGULATE RECTIFIER | 1 шт. | — | |
|
| 3 | 31607-MJW-J00 | COLLAR, REGULATOR RECTIFIER | 2 шт. | — | |
|
| 4 | 31730-MAS-601 | DIODE ASSY., THREE WAY (SUMITOMO) | 3 шт. | — | |
|
| 5 | 32100-MJW-A50 | WIRE HARNESS | 1 шт. | — | |
|
| 6 | 32103-MJW-J40 | SUB-HARNESS, FR. | 1 шт. | — | |
|
| 7 | 32206-MGZ-J00 | STAY, CONNECTOR | 1 шт. | — | |
|
| 8 | 32606-GEV-761 | CAP, DUMMY (4P) (RED) (Honda Code 7679160) | 1 шт. | — | |
|
| 9 | 33714-KL3-620 | RUBBER, TAILLIGHT BRACKET | 2 шт. | — | |
|
| 10 | 35160-MGS-D31 | SENSOR ASSY., BANK ANGLE | 1 шт. | — | |
|
| 11 | 38110-KPP-T01 | HORN (HIGH) | 1 шт. | — | |
|
| 12 | 38117-KFE-701 | COLLAR, HORN SETTING | 1 шт. | — | |
|
| 13 | 38221-SNA-A31 | FUSE, BLADE (7.5A) | 7 шт. | — | |
|
| 14 | 38221-SNA-A51 | FUSE, BLADE (15A) | 3 шт. | — | |
|
| 15 | 38221-SNA-A81 | FUSE, BLADE (30A) | 2 шт. | — | |
|
| 16 | 38281-MGZ-J01 | COVER, RELAY BOX | 1 шт. | — | |
|
| 17 | 38301-MJE-D01 | RELAY, TURN SIGNAL (MITSUBA) | 1 шт. | — | |
|
| 18 | 38301-MJE-D02 | RELAY, TURN SIGNAL (MITSUBA) | 1 шт. | — | |
|
| 19 | 38306-MGZ-K00 | SUSPENSION, TURN SIGNAL RELAY | 1 шт. | — | |
|
| 20 | 38501-MEL-003 | RELAY ASSY., POWER (MICRO ISO 4P) | 3 шт. | — | |
|
| 21 | 38770-MJW-A41 | PGM-FI UNIT | 1 шт. | — | |
|
| 22 | 38774-MGZ-J00 | CUSHION, PGM-FI UNIT | 1 шт. | — | |
|
| 23 | 50194-MJW-J00 | STAY, RELAY BOX | 1 шт. | — | |
|
| 24 | 64535-MFJ-D00 | RUBBER, SIDE COVER | 4 шт. | — | |
|
| 25 | 90129-MGZ-J00 | COLLAR, BANK ANGLE SENSOR | 2 шт. | — | |
|
| 26 | 90650-KV6-003 | BAND, WIRE (Honda Code 2687788) | 2 шт. | — | |
|
| 27 | 90652-HC4-003 | CLAMP, HARNESS | 1 шт. | — | |
|
| 28 | 91535-TA0-003 | CLIP, CONNECTOR (DARK BROWN) | 1 шт. | — | |
|
| 29 | 91565-SEL-003 | CLIP, CONNECTOR (BLACK) (Honda Code 7386865) | 2 шт. | — | |
|
| 30 | 93903-24380 | SCREW, TAPPING (4X12) | 2 шт. | — | |
|
| 31 | 94050-06080 | NUT, FLANGE (6MM) | 2 шт. | — | |
|
| 32 | 94103-06800 | WASHER, PLAIN (6MM) | 2 шт. | — | |
|
| 33 | 94591-46000 | CLIP, CABLE (4X60) | 1 шт. | — | |
|
| 34 | 94591-49000 | CLIP (4X90) | 1 шт. | — | |
|
| 35 | 95701-06010-00 | BOLT, FLANGE (6X10) BOLT, FLANGE (6X12) | 2 шт. | — | |
|
| 36 | 95701-06014-08 | BOLT, FLANGE (6X14) | 1 шт. | — | |
|
| 37 | 95701-06020-07 | BOLT, FLANGE (6X20) | 1 шт. | — | |
|
| 38 | 95701-06022-08 | BOLT, FLANGE (6X22) | 2 шт. | — | |
|
| 39 | 95701-06028-08 | BOLT, FLANGE (6X28) | 2 шт. | — | |
|
