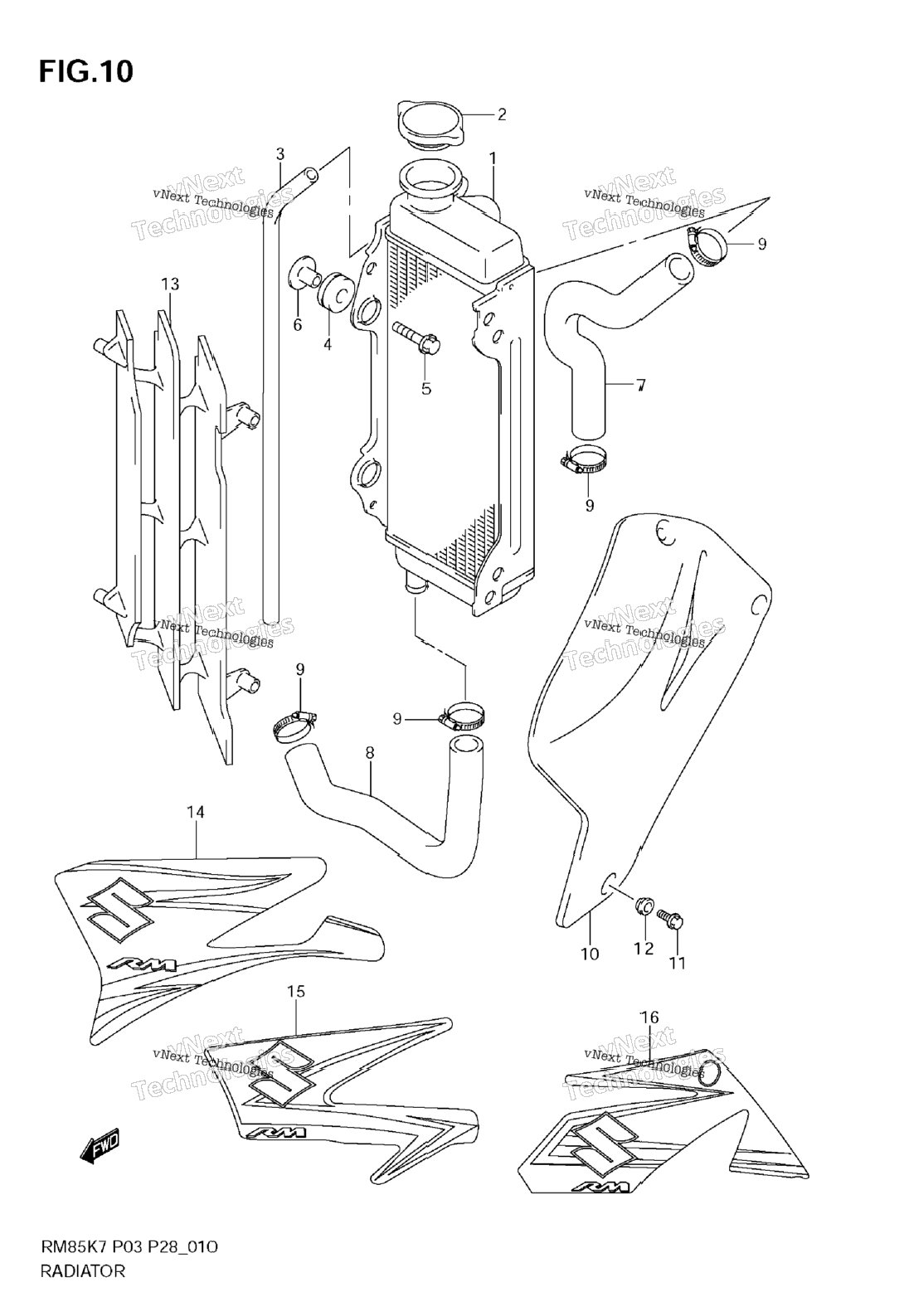

| 1 | 17710-03B00 | RADIATOR, WATER | 1 шт. | — | |
|
| 2 | 17730-12C20 | CAP, RADIATOR | 1 шт. | — | |
|
| 3 | 09351-50803-00A | HOSE, OVER FLOW (5X9X1000) L:1000!480 | 1 шт. | — | |
|
| 4 | 17787-19A00 | CUSHION RADIATOR LWR | 2 шт. | — | |
|
| 5 | 09116-06186 | BOLT, RADIATOR SPRT | 2 шт. | — | |
|
| 6 | 09180-06243 | SPACER, RADIATOR SPRT | 2 шт. | — | |
|
| 7 | 17851-03B00 | HOSE, INLET | 1 шт. | — | |
|
| 8 | 17852-03B00 | HOSE, OUTLET | 1 шт. | — | |
|
| 9 | 09402-28513 | CLAMP | 4 шт. | — | |
|
| 10 | 17762-37F10-YU1 | COVER, RADIATOR (YELLOW) | 1 шт. | — | |
|
| 11 | 09103-06233 | BOLT | 3 шт. | — | |
|
| 12 | 09169-06053 | WASHER | 3 шт. | — | |
|
| 13 | 17831-36E00 | LOUVER, RADIATOR | 1 шт. | — | |
|
| 14 | 68670-03BG0-DRA | TAPE, RADIATOR COVER LH MODEL K7 | 0 шт. | — | |
|
| 15 | 68670-03BH0-EMA | TAPE, RADIATOR COVER LH MODEL K8 | 0 шт. | — | |
|
| 16 | 68670-03BJ0-FYF | TAPE, RADIATOR COVER LH MODEL K9 | 0 шт. | — | |
|
