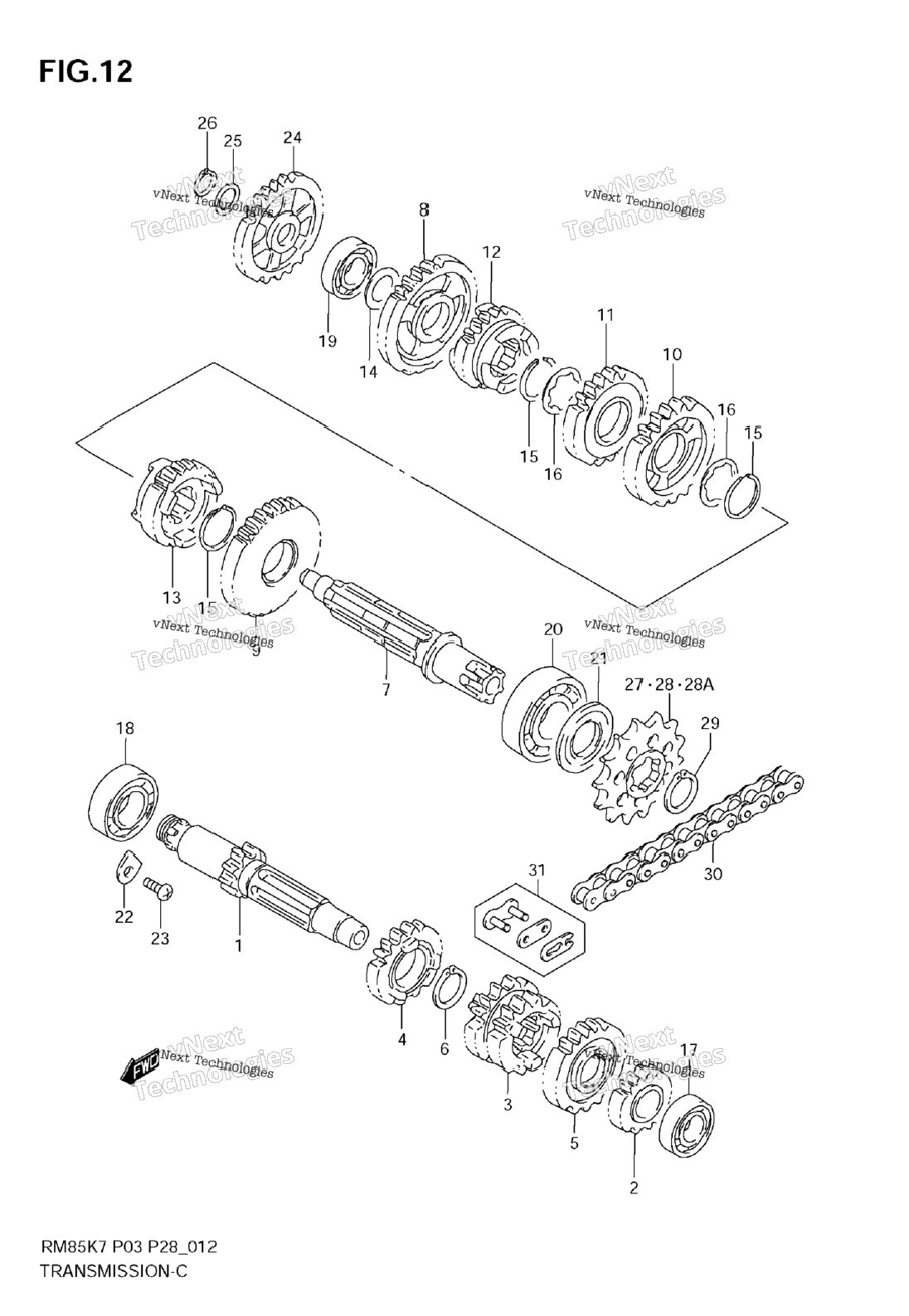

| 1 | 24121-02B42 | SHAFT,CNTR (NT:11) | 1 шт. | — | |
|
| 2 | 24221-02B02 | GEAR, 2ND DRIVE (NT:15) | 1 шт. | — | |
|
| 3 | 24231-02B03 | GEAR, 3/4 DRIVE (NT:14/15) | 1 шт. | — | |
|
| 4 | 24251-02B02 | GEAR, 5TH DRIVE (NT:18) | 1 шт. | — | |
|
| 5 | 24260-02B01 | GEAR, 6TH DRIVE (NT:22) | 1 шт. | — | |
|
| 6 | 09380-20009 | CIRCLIP | 1 шт. | — | |
|
| 7 | 24131-02B01 | DRIVE SHAFT | 1 шт. | — | |
|
| 8 | 24311-02B02 | GEAR, 1ST DRIVEN (NT:28) | 1 шт. | — | |
|
| 9 | 24321-02B02 | GEAR, 2ND DRIVEN (NT:29) | 1 шт. | — | |
|
| 10 | 24331-03B02 | GEAR, 3RD DRIVEN (NT:22) | 1 шт. | — | |
|
| 11 | 24341-03B02 | GEAR, 4TH DRIVEN (NT:20) | 1 шт. | — | |
|
| 12 | 24351-02B02 | GEAR, 5TH DRIVEN (NT:21) | 1 шт. | — | |
|
| 13 | 24361-02B03 | GEAR, 6TH DRIVEN (NT:23) | 1 шт. | — | |
|
| 14 | 09181-15195 | WASHER (15X26X1.0) | 1 шт. | — | |
|
| 15 | 09380-22006 | CIRCLIP | 3 шт. | — | |
|
| 16 | 09167-22011 | WASHER (22.1X27X0.5) | 2 шт. | — | |
|
| 17 | 08113-62027 | BEARING, CNTR SHAFT, LH | 1 шт. | — | |
|
| 18 | 09262-20106 | BEARING, CNTR SHAFT, RH 20X42X12 | 1 шт. | — | |
|
| 19 | 08113-62027 | BEARING, DRIVE SHAFT, RH | 1 шт. | — | |
|
| 20 | 09262-20069 | BEARING, DRIVE SHAFT, LH 20X47X14 | 1 шт. | — | |
|
| 21 | 09283-20057 | OIL SEAL (20X35X5) | 1 шт. | — | |
|
| 22 | 24741-21A00 | RETAINER, BEARING | 1 шт. | — | |
|
| 23 | 02112-0612B | SCREW | 1 шт. | — | |
|
| 24 | 26260-02B40 | GEAR, KICK IDLE (NT:24) | 1 шт. | — | |
|
| 25 | 09181-12158 | WASHER (12X20X0.5) | 1 шт. | — | |
|
| 26 | 08331-3112A | CIRCLIP | 1 шт. | — | |
|
| 27 | 27511-20421 | SPROCKET, ENGINE (NT:14) RM85K7/K8/K9 | 1 шт. | — | |
|
| 28 | 27511-20401 | SPROCKET, ENGINE (NT:13) RM85LK7/LK8/LK9 OPT,RM85 | 1 шт. | — | |
|
| 29 | 27511-20411 | SPROCKET, ENGINE (NT:12) OPT,RM85L | 1 шт. | — | |
|
| 30 | 09380-20009 | CIRCLIP | 1 шт. | — | |
|
| 31 | 27600-05350 | CHAIN, DRIVE (DID428DS,118L) RM85K7/K8/K9 | 1 шт. | — | |
|
| 32 | 27600-36611 | CHAIN, DRIVE (DID428DS,122L) RM85LK7/LK8/LK9 | 0 шт. | — | |
|
| 33 | 27620-03B00 | JOINT SET, CHAIN OPT | 1 шт. | — | |
|
