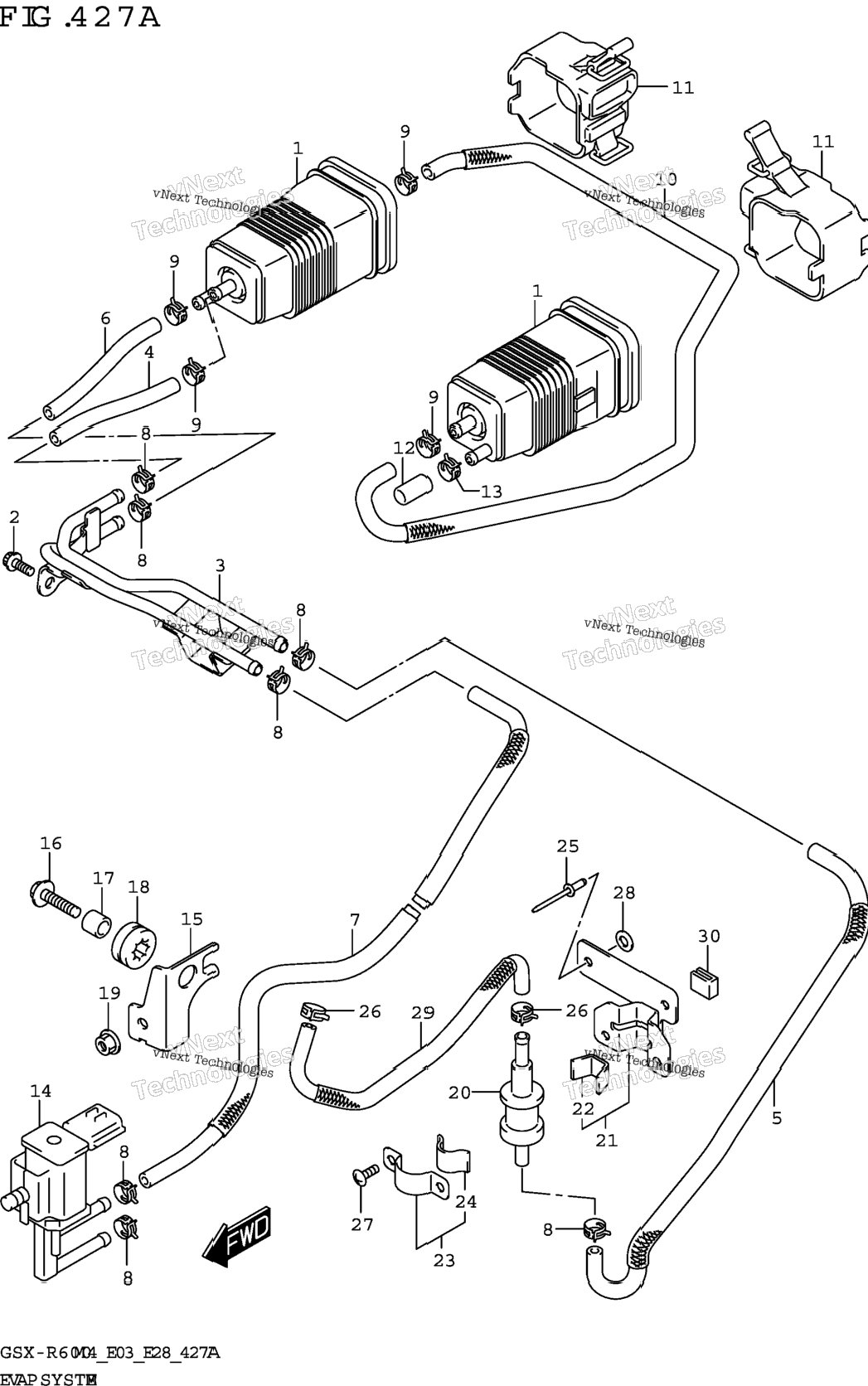

| 1 | 18560-14J00 | CANISTER ASSY,CHARCOAL | 2 шт. | — | |
|
| 2 | 07120-0612A | BOLT | 2 шт. | — | |
|
| 3 | 18340-14J00 | PIPE,EVAP | 1 шт. | — | |
|
| 4 | 18561-14J00 | HOSE,SURGE NO.1 | 1 шт. | — | |
|
| 5 | 18562-14J00 | HOSE,SURGE NO.2 | 1 шт. | — | |
|
| 6 | 18563-14J00 | HOSE,PURGE NO.1 | 1 шт. | — | |
|
| 7 | 18564-14J00 | HOSE,PURGE NO.2 | 1 шт. | — | |
|
| 8 | 09401-10409 | CLIP (ID:10.5,H:8) | 7 шт. | — | |
|
| 9 | 09401-12404 | CLIP (ID:12) | 4 шт. | — | |
|
| 10 | 18565-14J00 | HOSE,CANISTER JOINT | 1 шт. | — | |
|
| 11 | 18572-14J00 | CUSHION,CANISTER | 2 шт. | — | |
|
| 12 | 09251-07003 | CAP (OD:11.5) | 1 шт. | — | |
|
| 13 | 09401-11413 | CLIP (ID:11,H:8) | 1 шт. | — | |
|
| 14 | 18117-52G00 | VALVE ASSY,DUTY FOR PURGE | 1 шт. | — | |
|
| 15 | 18571-14J00 | BRACKET,PURGE VALVE | 1 шт. | — | |
|
| 16 | 09116-06203 | BOLT (6X30) | 1 шт. | — | |
|
| 17 | 09180-06319 | SPACER (6.5X10X11.6) | 1 шт. | — | |
|
| 18 | 09320-10055 | CUSHION | 1 шт. | — | |
|
| 19 | 08316-1006A | NUT (6X12) | 1 шт. | — | |
|
| 20 | 44240-38A00 | VALVE,FUEL TANK BREATHER | 1 шт. | — | |
|
| 21 | 44890-47H00 | PLATE,BRTHR VALVE | 1 шт. | — | |
|
| 22 | 44894-24A00 | CUSHION (10X30X2) | 1 шт. | — | |
|
| 23 | 44892-24A00 | PLATE FUEL TANK BREATHER NO.2 | 1 шт. | — | |
|
| 24 | 44894-24A00 | CUSHION (10X30X2) | 1 шт. | — | |
|
| 25 | 09229-04017 | RIVET | 2 шт. | — | |
|
| 26 | 09401-11413 | CLIP (ID:11,H:8) | 2 шт. | — | |
|
| 27 | 02142-0408A | SCREW | 2 шт. | — | |
|
| 28 | 08322-0104A | WASHER | 2 шт. | — | |
|
| 29 | 44434-37H10 | HOSE,TANK & BRTHR VALVE | 0 шт. | — | |
|
| 30 | 44894-24A00 | CUSHION (10X30X2) | 1 шт. | — | |
|
