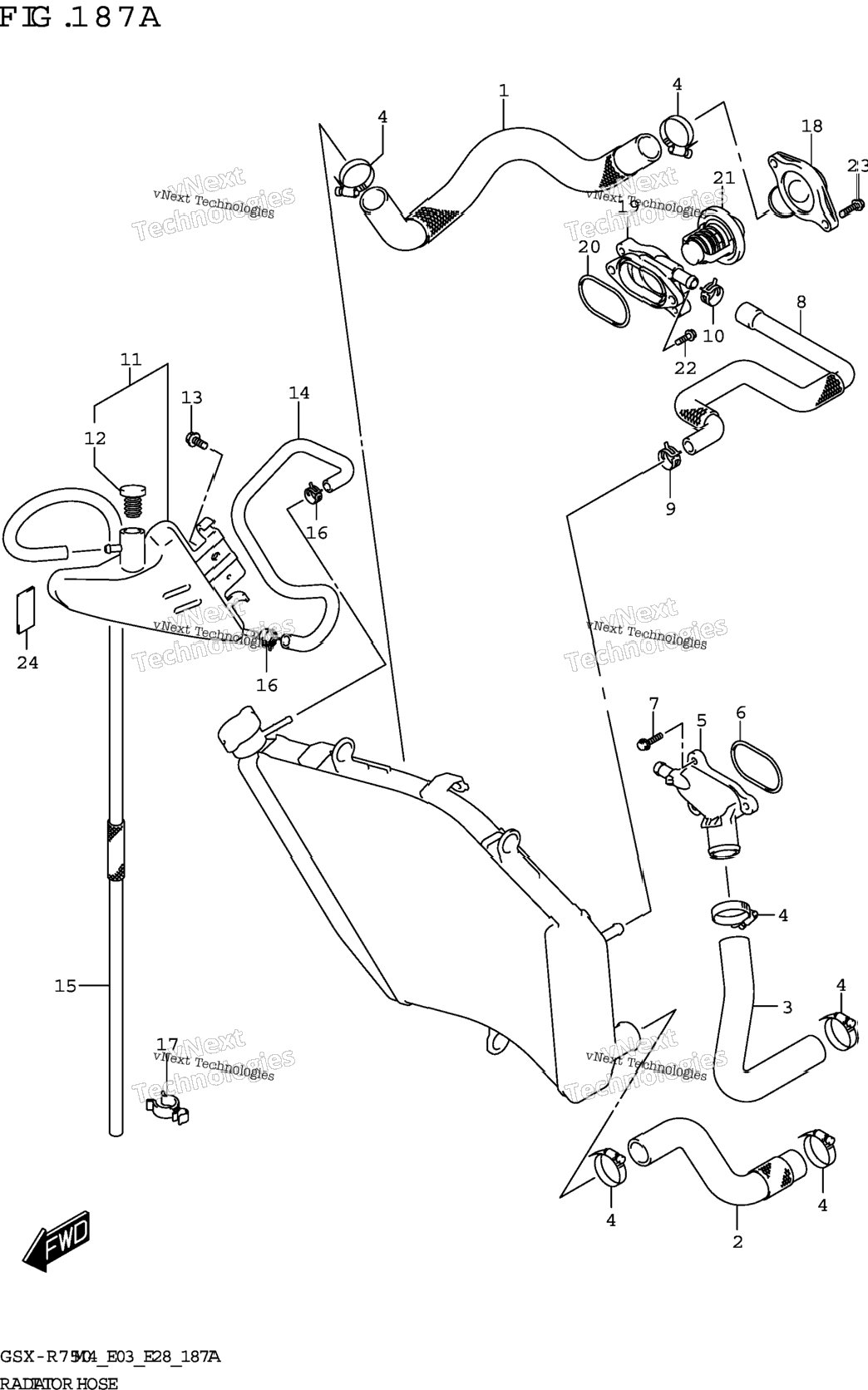

| 1 | 17851-14J00 | HOSE,RADIATOR INLET | 1 шт. | — | |
|
| 2 | 17852-14J00 | HOSE,RADIATOR OUTLET | 1 шт. | — | |
|
| 3 | 17853-14J00 | HOSE,CYLINDER INLET | 1 шт. | — | |
|
| 4 | 09402-35501 | CLAMP | 6 шт. | — | |
|
| 5 | 17861-01H00 | CONNECTOR,CYL WATER INLET | 1 шт. | — | |
|
| 6 | 17863-01H00 | O RING,CYL WATER CONNECTOR | 1 шт. | — | |
|
| 7 | 01547-0620A | BOLT | 2 шт. | — | |
|
| 8 | 17854-14J00 | HOSE,WATER BYPASS | 1 шт. | — | |
|
| 9 | 09401-12414 | CLAMP | 1 шт. | — | |
|
| 10 | 09401-14403 | CLIP | 1 шт. | — | |
|
| 11 | 17910-14J00 | TANK ASSY,RESERVOIR | 1 шт. | — | |
|
| 12 | 17931-02FA0 | .CAP, RESERVOIR TANK | 1 шт. | — | |
|
| 13 | 09111-06085 | BOLT (6X12) | 1 шт. | — | |
|
| 14 | 17981-18G00 | HOSE,RESERVOIR TANK INLET | 1 шт. | — | |
|
| 15 | 17982-37H00 | HOSE,RESERVOIR TANK OVER FLOW | 1 шт. | — | |
|
| 16 | 09401-08411 | CLIP (ID:8.6) | 2 шт. | — | |
|
| 17 | 09404-06429 | CLAMP (L:45) | 1 шт. | — | |
|
| 18 | 17661-37H00 | COVER,THERMOSTAT | 1 шт. | — | |
|
| 19 | 17662-01H00 | CONNECTOR,THERMOSTAT | 1 шт. | — | |
|
| 20 | 17663-01H00 | O RING,THERMOSTAT CONNECTOR | 1 шт. | — | |
|
| 21 | 17670-76G00 | THERMOSTAT,WTR (82<-C) | 1 шт. | — | |
|
| 22 | 01547-0620A | BOLT | 3 шт. | — | |
|
| 23 | 01550-0625A | BOLT | 2 шт. | — | |
|
| 24 | 46312-31D11 | CUSHION,FRONT CUT AS REQUIRED | 1 шт. | — | |
|
