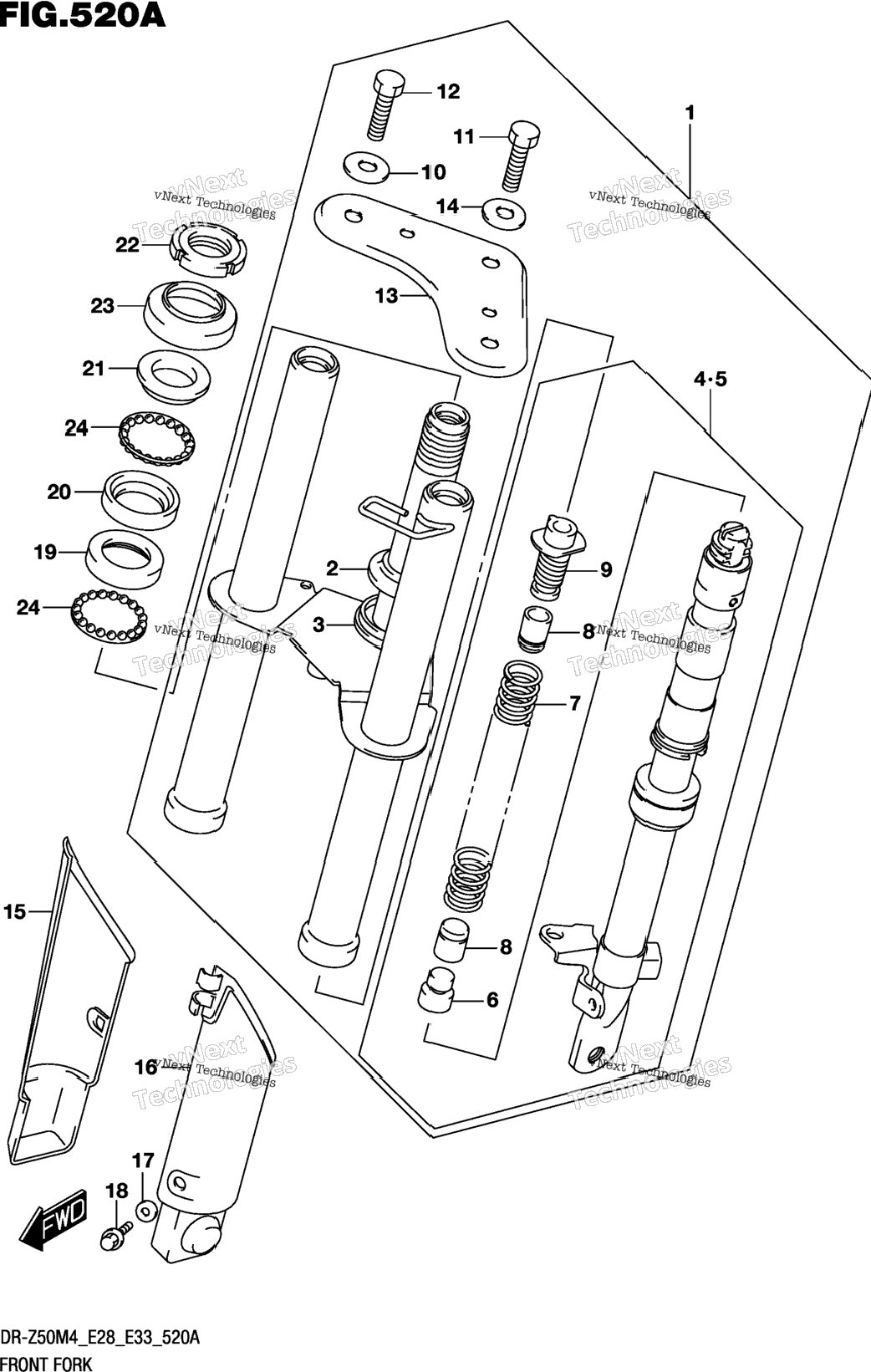

| 1 | 51100-14831 | FORK SET,FRONT | 1 шт. | — | |
|
| 2 | 51622-14H00 | .RACE,STEERING OUTER LOWER | 0 шт. | — | |
|
| 3 | 51644-14H01 | .SEAL,STEERING LWR | 1 шт. | — | |
|
| 4 | 51110-14H00 | .TUBE ASSY,FRONT FORK LOWER,R | 1 шт. | — | |
|
| 5 | 51120-14H00 | .TUBE ASSY,FRONT FORK LOWER,L | 1 шт. | — | |
|
| 6 | 51116-14H00 | ..STOPPER | 2 шт. | — | |
|
| 7 | 51171-14H00 | ..SPRING | 2 шт. | — | |
|
| 8 | 51292-14H00 | ..STOPPER RUBBER | 4 шт. | — | |
|
| 9 | 51422-14H00 | ..SPRING,JOINT B | 0 шт. | — | |
|
| 10 | 09160-10144 | .WASHER (10X30X2.5) | 2 шт. | — | |
|
| 12 | 01550-1035A | .BOLT | 1 шт. | — | |
|
| 12 | 01550-1035A | .BOLT | 2 шт. | — | |
|
| 13 | 51310-14H00 | .BRACKET,UPPER | 1 шт. | — | |
|
| 14 | 09160-10128-XC0 | WASHER (10.5X25X3.2) | 1 шт. | — | |
|
| 15 | 51501-14H00-019 | PROTECTOR,FR FORK,R (BLACK) | 1 шт. | — | |
|
| 16 | 51511-14H00-019 | PROTECTOR,FR FORK,L (BLACK) | 1 шт. | — | |
|
| 17 | 09169-06032 | WASHER | 4 шт. | — | |
|
| 18 | 01547-0612A | BOLT | 4 шт. | — | |
|
| 19 | 51611-14H00 | RACE,STEERING INNER LOWER | 1 шт. | — | |
|
| 20 | 51611-20002 | RACE,STEERING INNER UPPER | 1 шт. | — | |
|
| 21 | 51621-28000 | RACE,STEERING OUTER UPPER | 1 шт. | — | |
|
| 22 | 51631-28000 | NUT,STEERING STEM (25X44X10) | 1 шт. | — | |
|
| 23 | 51643-25001 | DUST SEAL,STEERING UPPER | 1 шт. | — | |
|
| 24 | 09269-27001 | BEARING,27X40.5X5 (27X40.5X5) | 2 шт. | — | |
|
