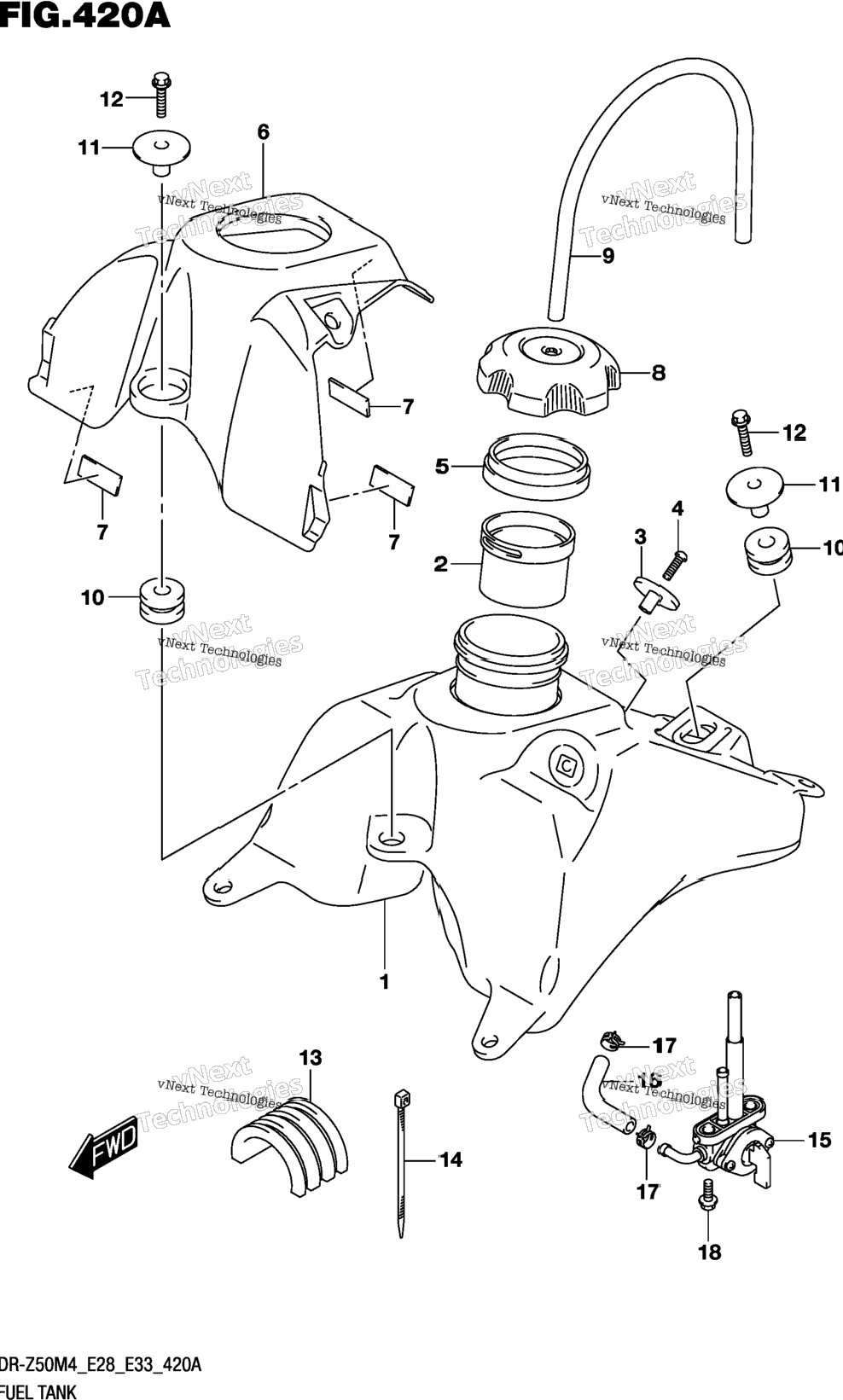

| 1-1 | 44100-14H00 | TANK ASSY,FUEL TAKAGI SEIKO | 0 шт. | — | |
|
| 1-2 | 44100-14HB0 | TANK ASSY,FUEL YAZAKI | 1 шт. | — | |
|
| 2 | 44199-19A00 | TUBE FILLER, INLET | 1 шт. | — | |
|
| 3 | 44132-27C01 | HOOK,SEAT FRONT | 1 шт. | — | |
|
| 4 | 09139-06148 | BOLT (6X20) | 1 шт. | — | |
|
| 5 | 44261-14H01 | RUBBER, FUEL TANK INLET | 1 шт. | — | |
|
| 6 | 44291-14H00 | COVER,FUEL TANK UPPER | 1 шт. | — | |
|
| 7 | 44294-14H00 | .CUSHION (20X40X3) | 3 шт. | — | |
|
| 8 | 44200-29F01 | CAP ASSY,FUEL TANK FILLER | 1 шт. | — | |
|
| 9 | 09352-50005-360 | HOSE (5X8.2X360) | 1 шт. | — | |
|
| 10 | 44511-10G11 | CUSHION,FUEL TANK RR | 2 шт. | — | |
|
| 11 | 44512-10G00 | WASHER,FUEL TANK | 0 шт. | — | |
|
| 12 | 01547-0625A | BOLT | 2 шт. | — | |
|
| 13 | 44541-13E10 | CUSHION, FUEL TANK | 1 шт. | — | |
|
| 14 | 09407-30402 | CLAMP (L:300) | 1 шт. | — | |
|
| 15 | 44300-14H00 | COCK ASSY,FUEL | 1 шт. | — | |
|
| 16 | 44421-14H20 | HOSE,FUEL | 1 шт. | — | |
|
| 17 | 09401-09403 | CLIP | 2 шт. | — | |
|
| 18 | 01547-0616A | BOLT | 2 шт. | — | |
|
