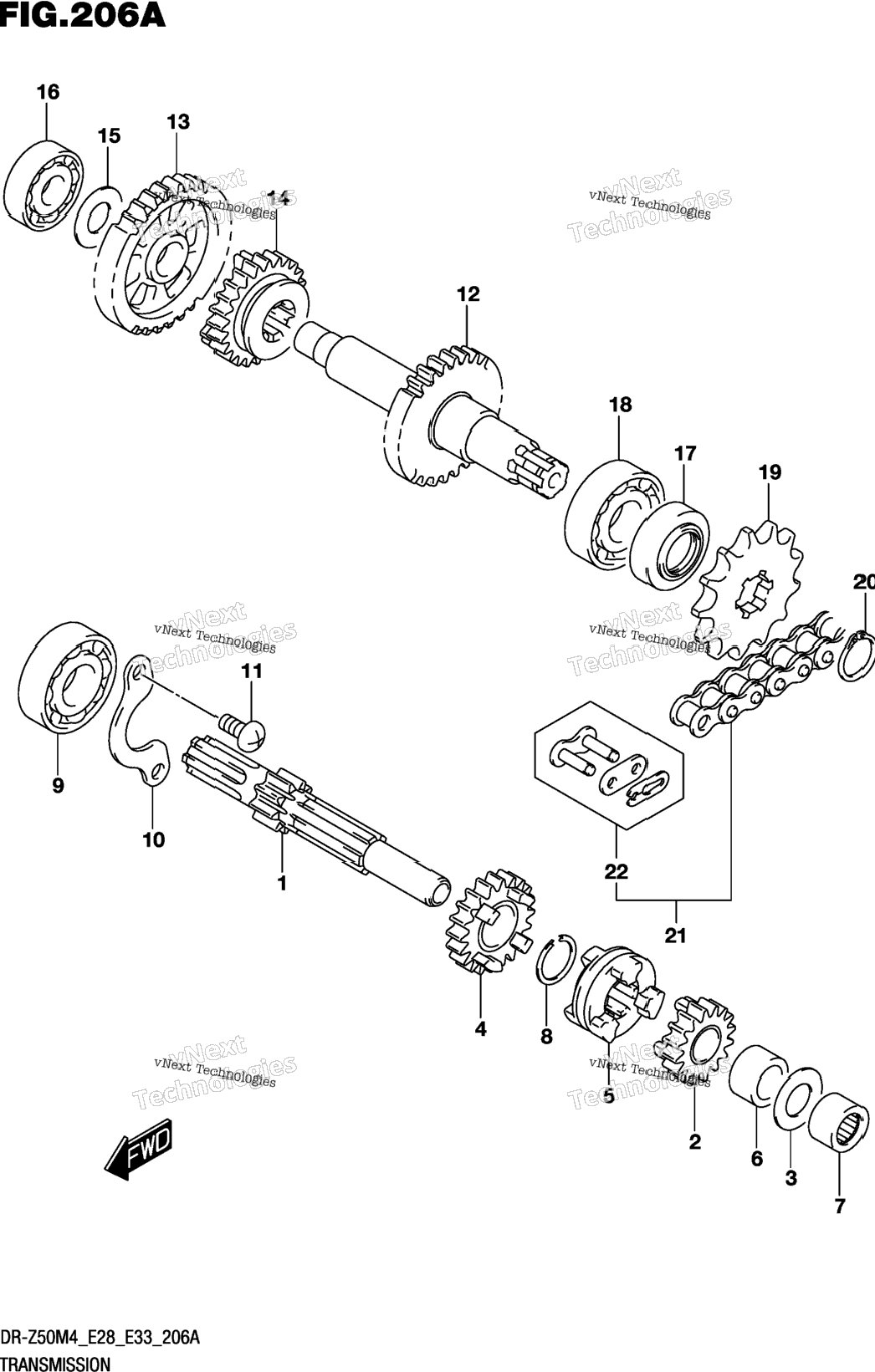

| 1 | 24121-02A02 | SHAFT,COUNTER,NT:10 (NT:10) | 0 шт. | — | |
|
| 2 | 24220-02A01 | GEAR,2ND DRIVE,NT:16 (NT:16) | 0 шт. | — | |
|
| 3 | 09160-13006 | WASHER (13X24X1.0) | 0 шт. | — | |
|
| 4 | 24231-35404 | GEAR,3RD DRIVE,NT:20 (NT:20) | 0 шт. | — | |
|
| 5 | 24421-14H00 | WHEEL,SLIDING DOG | 0 шт. | — | |
|
| 6 | 09180-13008 | SPACER,13X19X12.5 (13X19X12.5 | 0 шт. | — | |
|
| 7 | 09263-13002 | BEARING,13X19X12 (13X19X12) | 1 шт. | — | |
|
| 8 | 09380-17007 | CIRCLIP | 0 шт. | — | |
|
| 9 | 08110-62030 | BEARING | 1 шт. | — | |
|
| 10 | 24741-09401 | RETAINER,BEARING | 0 шт. | — | |
|
| 11 | 09125-06122 | SCREW (6X12) | 2 шт. | — | |
|
| 12 | 24130-02A00 | SHAFT,DRIVE,NT:29 (NT:29) | 0 шт. | — | |
|
| 13 | 24310-30A01 | GEAR,1ST DRIVEN,NT:34 (NT:34) | 1 шт. | — | |
|
| 14 | 24331-02A01 | GEAR,3RD DRIVEN,NT:24 (NT:24) | 0 шт. | — | |
|
| 15 | 08211-12241 | WASHER | 1 шт. | — | |
|
| 16 | 08113-6201B | BEARING | 1 шт. | — | |
|
| 17 | 09283-17025 | SEAL,OIL,17X30X7 (17X30X7) | 1 шт. | — | |
|
| 18 | 08110-62030 | BEARING | 1 шт. | — | |
|
| 19 | 27511-46700 | SPROCKET, ENGINE | 1 шт. | — | |
|
| 20 | 08331-31169 | CIRCLIP | 1 шт. | — | |
|
| 21 | 27600-20911-078 | CHAIN ASSY, DRIVE (DID428,RED | 1 шт. | — | |
|
| 22 | 27620-20911 | .JOINT SET | 1 шт. | — | |
|
