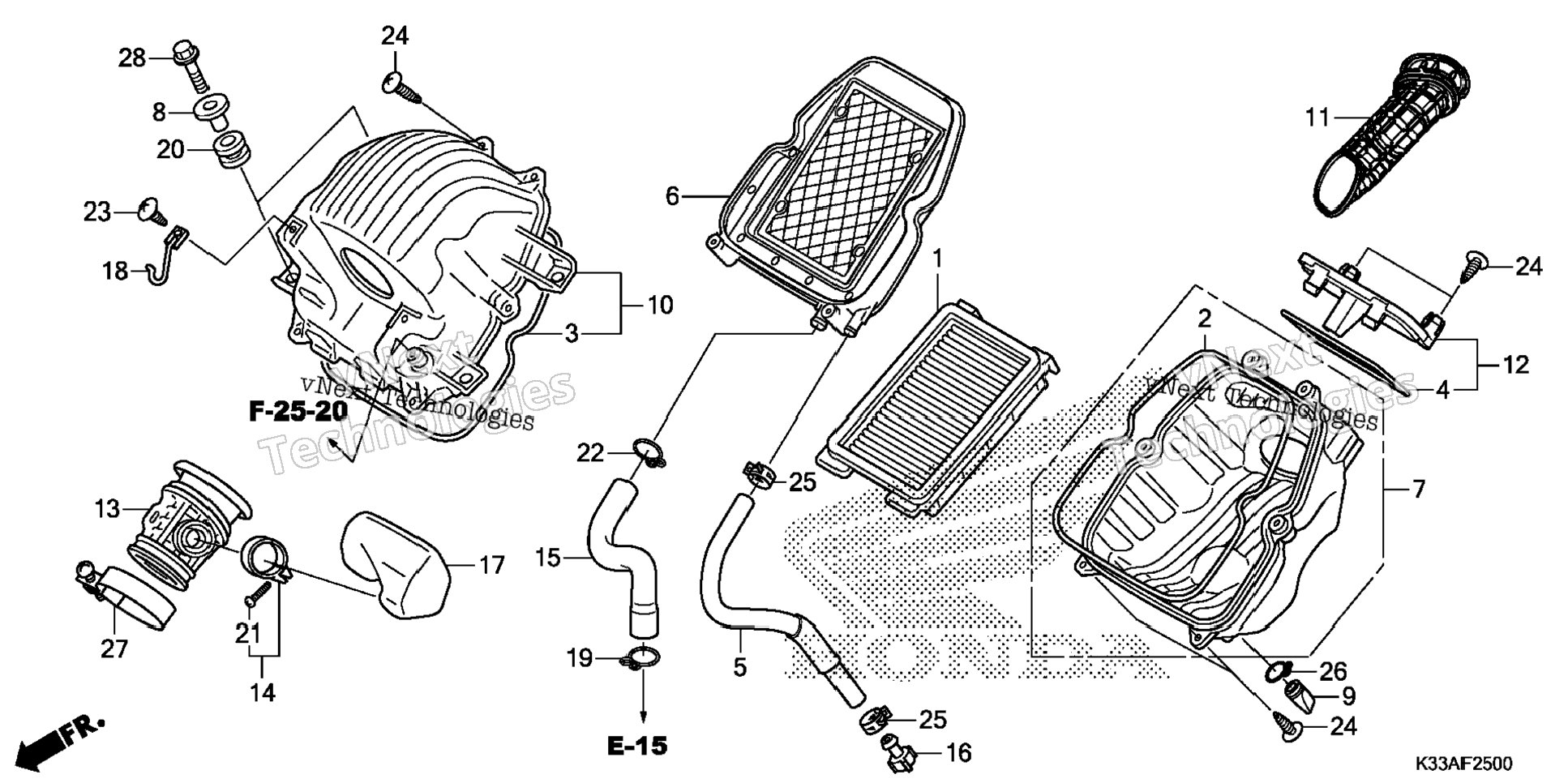

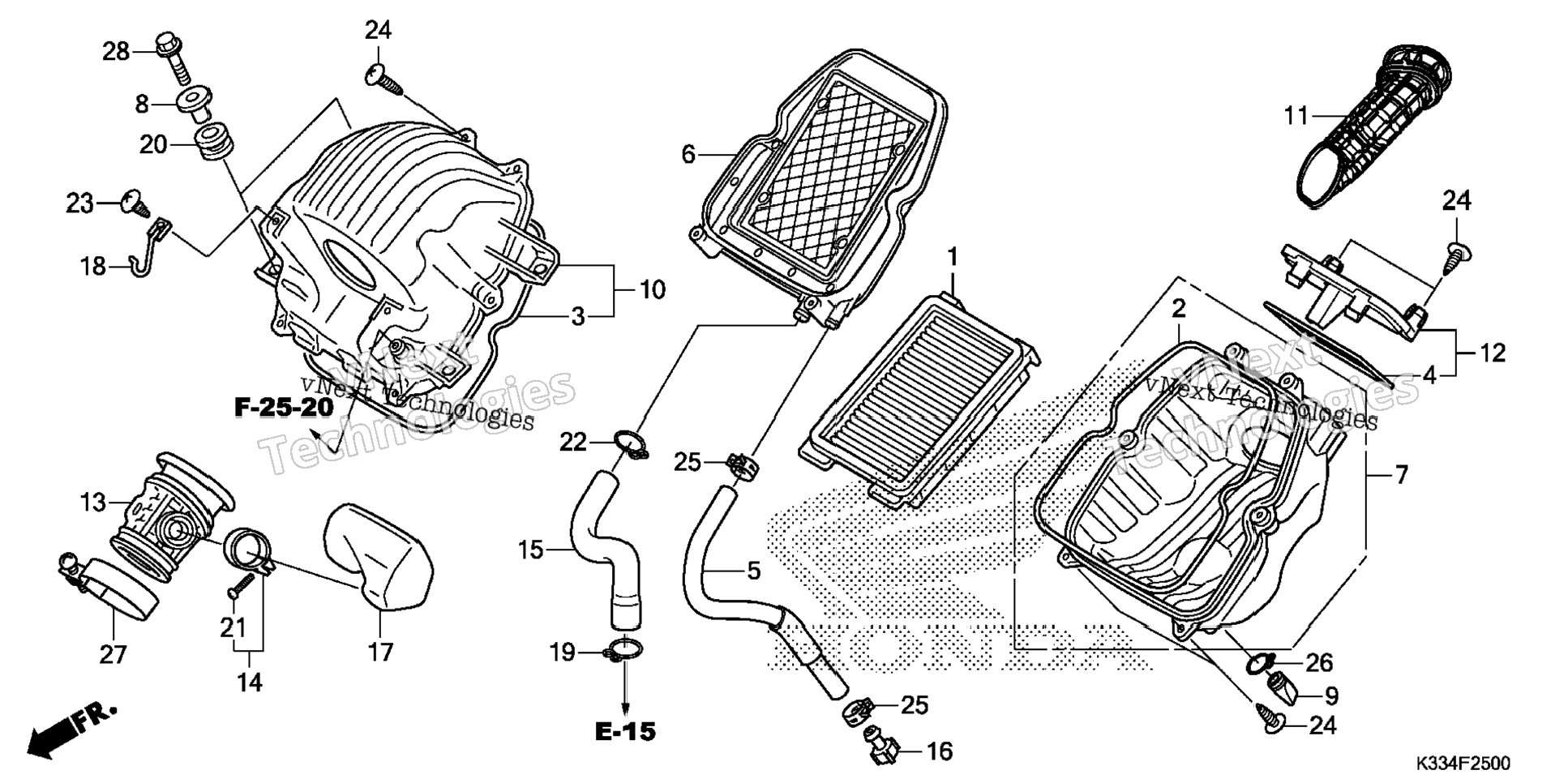

| 1 | 17211-KYJ-900 | ELEMENT, AIR CLEANER | 1 шт. | — | |
|
| 2 | 17213-KYJ-900 | SEAL, AIR CLEANER | 1 шт. | — | |
|
| 3 | 17213-KYJ-900 | SEAL, AIR CLEANER | 1 шт. | — | |
|
| 4 | 17214-KYJ-900 | SEAL, LID | 1 шт. | — | |
|
| 5 | 17215-KYJ-901 | TUBE, AIR CLEANER DRAIN | 1 шт. | — | |
|
| 6 | 17220-KYJ-900 | HOLDER, ELEMENT | 1 шт. | — | |
|
| 7 | 17225-KYJ-900 | CASE SUB-ASSY., AIR CLEANER | 1 шт. | — | |
|
| 8 | 17232-KYJ-900 | COLLAR, AIR CLEANER MOUNTING | 4 шт. | — | |
|
| 9 | 17234-KCW-871 | TUBE, AIR CLEANER DRAIN | 1 шт. | — | |
|
| 10 | 17235-KYJ-900 | COVER SUB-ASSY., AIR CLEANER | 1 шт. | — | |
|
| 11 | 17240-K33-D00 | DUCT, INLET | 1 шт. | — | |
|
| 12 | 17245-KYJ-901 | LID SUB-ASSY., AIR CLEANER | 1 шт. | — | |
|
| 13 | 17253-K33-D00 | TUBE, AIR CLEANER CONNECTING | 1 шт. | — | |
|
| 14 | 17255-MCG-000 | BAND, RESONATOR (28) | 1 шт. | — | |
|
| 15 | 17265-KYJ-900 | TUBE, BREATHER | 1 шт. | — | |
|
| 16 | 17370-419-700 | PLUG, BREATHER TUBE | 1 шт. | — | |
|
| 17 | 17410-KYJ-900 | RESONATOR | 1 шт. | — | |
|
| 18 | 17724-102-700 | CLIP, SUB-TANK HOSE | 1 шт. | — | |
|
| 19 | 83545-KCJ-690 | RUBBER, SIDE COVER | 4 шт. | — | |
|
| 20 | 93500-05025-0G | SCREW, PAN (5X25) | 1 шт. | — | |
|
| 21 | 90646-657-000 | CLIP, AIR HOSE (16MM) | 1 шт. | — | |
|
| 22 | 93903-25480 | SCREW, TAPPING (5X20) | 10 шт. | — | |
|
| 23 | 95002-41200-00 | CLIP, TUBE (D12.0) | 2 шт. | — | |
|
| 24 | 95002-80000 | CLIP, TUBE (C12) | 1 шт. | — | |
|
| 25 | 95018-56250 | BAND, AIR CLEANER CONNECTING TUBE (56) | 1 шт. | — | |
|
| 26 | 95701-06020-08 | BOLT, FLANGE (6X20) | 4 шт. | — | |
|
