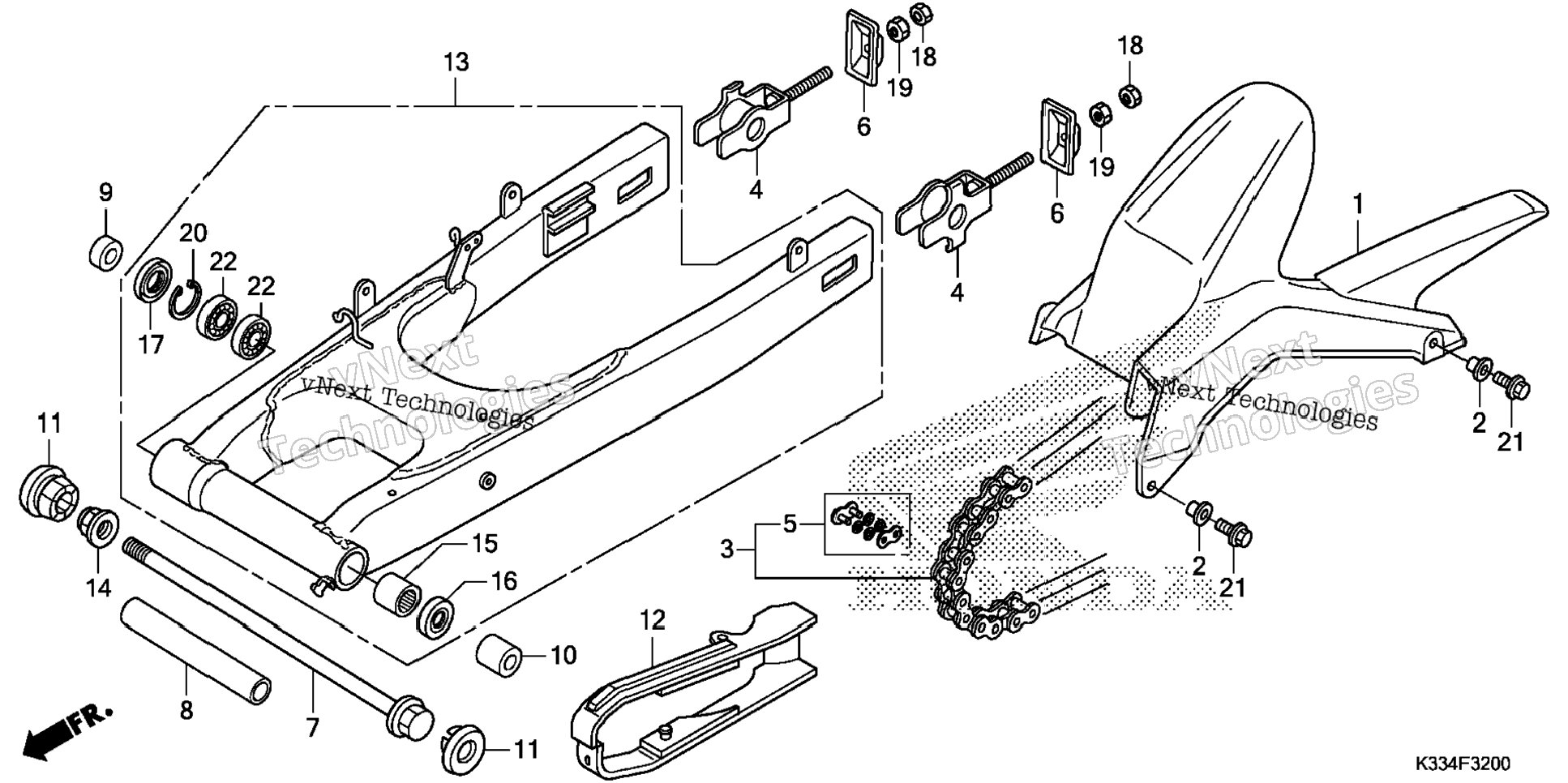

| 1 | 40510-KYJ-900 | CASE, DRIVE CHAIN | 1 шт. | — | |
|
| 2 | 40511-KYJ-900 | COLLAR | 4 шт. | — | |
|
| 3 | 40540-KYJ-901 | CHAIN, DRIVE (RK520KLO-120LJFZ) (RK EXCEL) (STANDARD LINK 108L) | 1 шт. | — | |
|
| 4 | 40540-KYJ-902 | CHAIN, DRIVE (DID520VF-120ZB) (DAIDO) (STANDARD LINK 108L) | 1 шт. | — | |
|
| 5 | 40543-KYJ-900 | ADJUSTER, CHAIN | 2 шт. | — | |
|
| 6 | 40545-KYJ-901 | MASTER LINK (RK EXCEL) | 1 шт. | — | |
|
| 7 | 40545-KYJ-902 | MASTER LINK (DAIDO) | 1 шт. | — | |
|
| 8 | 40546-KYJ-900 | CAP, SWINGARM END | 2 шт. | — | |
|
| 9 | 52101-KYJ-900 | BOLT, SWINGARM PIVOT | 1 шт. | — | |
|
| 10 | 52102-ML4-000 | COLLAR, PIVOT DISTANCE | 1 шт. | — | |
|
| 11 | 52105-MJ0-000 | COLLAR B, RR. SWINGARM PIVOT | 1 шт. | — | |
|
| 12 | 52106-KYJ-900 | COLLAR, PIVOT | 1 шт. | — | |
|
| 13 | 52161-KYJ-900 | CAP, SWINGARM PIVOT | 2 шт. | — | |
|
| 14 | 52170-KYJ-900 | SLIDER, CHAIN | 1 шт. | — | |
|
| 15 | 52200-KYJ-900 | SWINGARM SUB-ASSY., RR. | 1 шт. | — | |
|
| 16 | 90305-KCJ-951 | NUT, U (14MM) (FUJI SEIMITSU) | 1 шт. | — | |
|
| 17 | 91071-MJ0-003 | BEARING, NEEDLE (22X29X30) (NTN) | 1 шт. | — | |
|
| 18 | 91071-MJ0-004 | BEARING, NEEDLE (THOMPSON) | 1 шт. | — | |
|
| 19 | 91205-965-003 | OIL SEAL (22X31X5) (ARAI) | 1 шт. | — | |
|
| 20 | 91213-MB2-003 | DUST SEAL (22X35X7) (ARAI) | 1 шт. | — | |
|
| 21 | 91213-MB2-006 | DUST SEAL (22X35X7) (NOK) | 1 шт. | — | |
|
| 22 | 94002-080000S | NUT,HEX 8MM | 2 шт. | — | |
|
| 23 | 94031-08000 | NUT, HEX. (8MM) NUT, FLANGE (10MM) | 2 шт. | — | |
|
| 24 | 94520-35000 | CIRCLIP (INNER) (35MM) | 1 шт. | — | |
|
| 25 | 95701-06012-07 | BOLT, FLANGE (6X12) | 4 шт. | — | |
|
| 26 | 96100-62020-10 | BEARING, RADIAL BALL (6202) | 2 шт. | — | |
|
