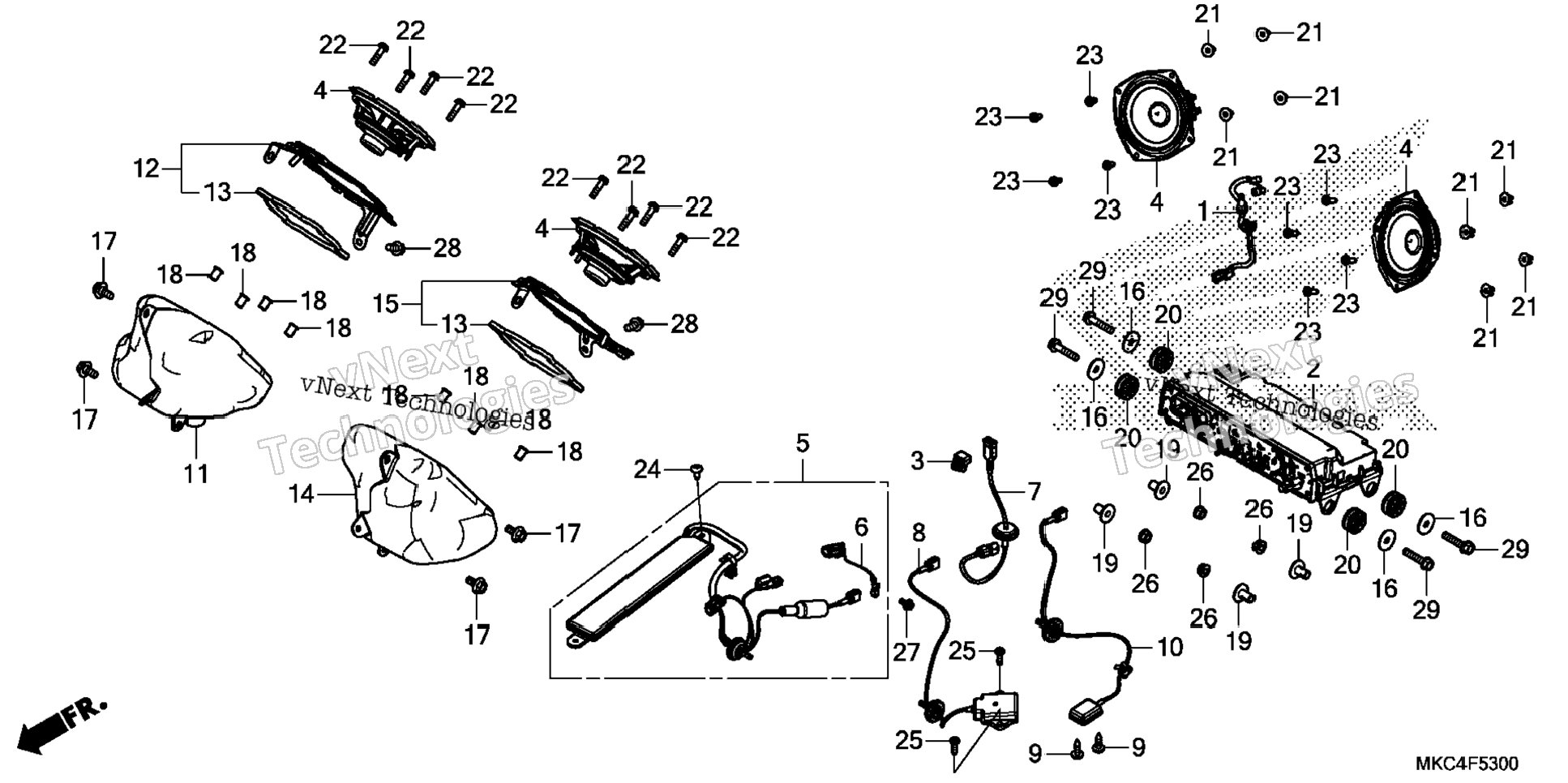

| 1 | 32145-MKC-A00 | SUB-HARNESS, SPEAKER | 1 шт. | — | |
|
| 2 | 39110-MKC-A31 | AUDIO UNIT | 1 шт. | — | |
|
| 3 | 39115-TK6-003 | CLIP, USB CONNECTOR HOLDER (A) (L. SIDE ONLY) | 1 шт. | — | |
|
| 4 | 39130-MKC-A01 | SPEAKER UNIT | 4 шт. | — | |
|
| 5 | 39150-MKC-A01 | ANTENNA ASSY., RADIO | 1 шт. | — | |
|
| 6 | 39151-MKC-A01 | SUB-HARNESS, RADIO ANTENNA GROUND | 1 шт. | — | |
|
| 7 | 39213-MKC-A01 | ANTENNA ASSY., BLUETOOTH (RR) | 1 шт. | — | |
|
| 8 | 39221-MCA-S51 | SCREW, PAN (3X6) | 2 шт. | — | |
|
| 9 | 39230-MKC-A01 | ANTENNA ASSY., GPS | 1 шт. | — | |
|
| 10 | 64181-MKC-A00 | BOX, R. SPEAKER | 1 шт. | — | |
|
| 11 | 64183-MKC-A00 | PLATE, R. SPEAKER BOX | 1 шт. | — | |
|
| 12 | 64184-MKC-A00 | CUSHION, SPEAKER | 2 шт. | — | |
|
| 13 | 64191-MKC-A00 | BOX, L. SPEAKER | 1 шт. | — | |
|
| 14 | 64193-MKC-A00 | PLATE, L. SPEAKER BOX | 1 шт. | — | |
|
| 15 | 77302-124-000 | WASHER, SEAT MOUNTING | 4 шт. | — | |
|
| 16 | 90111-162-000 | BOLT, FLANGE (6MM) | 4 шт. | — | |
|
| 17 | 90111-KW3-003 | NUT, COWL SETTING (5MM) | 8 шт. | — | |
|
| 18 | 90503-MKC-A00 | COLLAR (6.3X14) | 4 шт. | — | |
|
| 19 | 90505-MKC-A00 | RUBBER, AUDIO MOUNT | 4 шт. | — | |
|
| 20 | 90661-SJ8-000 | GROMMET, SCREW (5MM) | 8 шт. | — | |
|
| 21 | 93892-05020-07 | SCREW-WASHER (5X20) | 8 шт. | — | |
|
| 22 | 93901-25280 | SCREW, TAPPING (5X12) | 8 шт. | — | |
|
| 23 | 93903-25210 | SCREW, TAPPING (5X12) | 1 шт. | — | |
|
| 24 | 93903-25310 | SCREW, TAPPING (5X16) | 2 шт. | — | |
|
| 25 | 94050-06000 | NUT, FLANGE (6MM) | 4 шт. | — | |
|
| 26 | 95701-06010-00 | BOLT, FLANGE (6X10) BOLT, FLANGE (6X12) | 1 шт. | — | |
|
| 27 | 95701-06012-08 | BOLT, FLANGE (6X12) | 2 шт. | — | |
|
| 28 | 95801-06030-00 | BOLT, FLANGE (6X30) | 4 шт. | — | |
|
