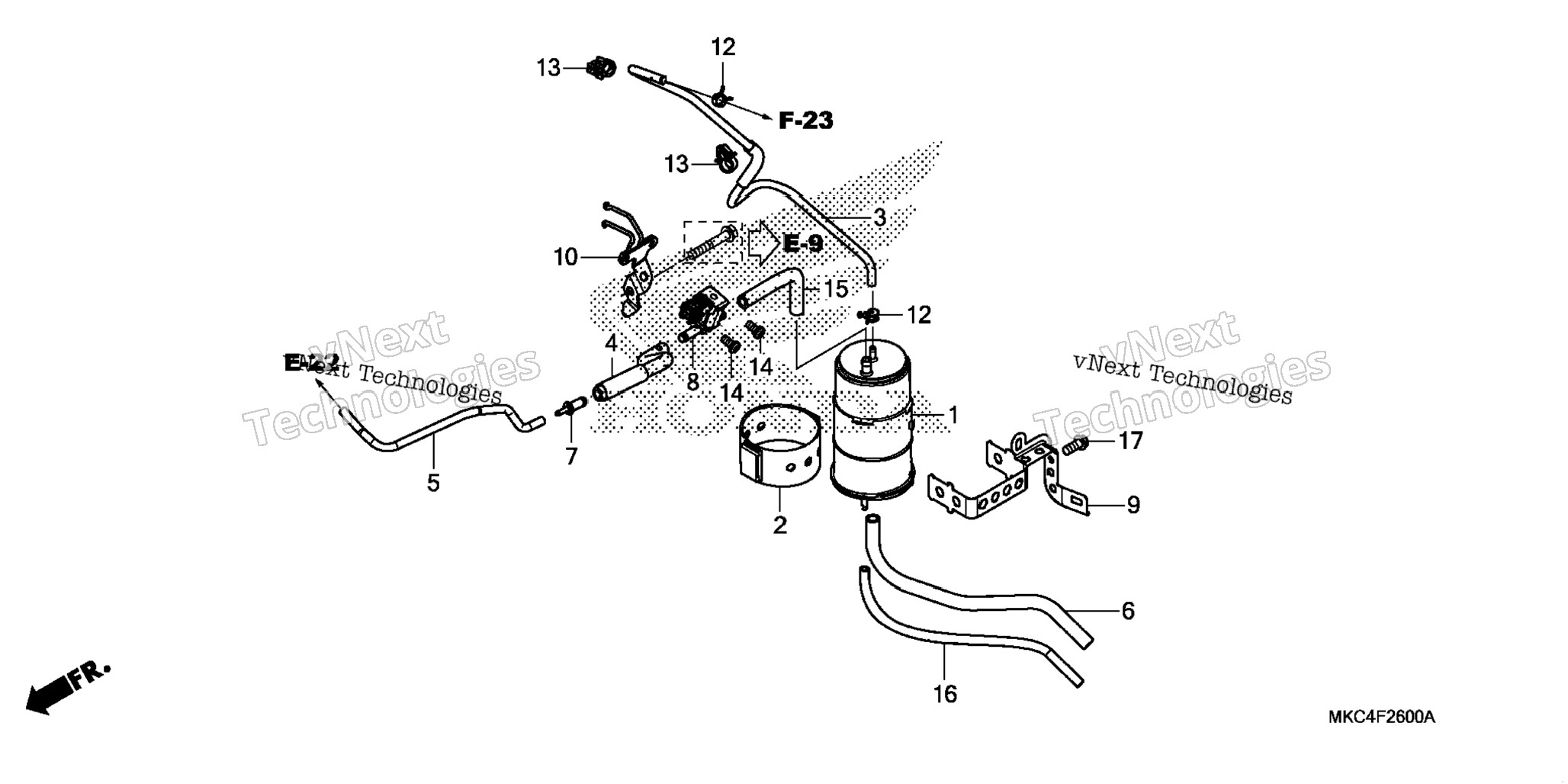

| 1 | 17310-MGS-T71 | CANISTER | 1 шт. | — | |
|
| 2 | 17311-MGS-T70 | RUBBER, CANISTER | 1 шт. | — | |
|
| 3 | 17412-MKC-A00 | TUBE (FKM)(JOINT-CANISTER) | 1 шт. | — | |
|
| 4 | 17414-MKC-A00 | TUBE, PURGE CONTROL SOLENOID JOINT | 1 шт. | — | |
|
| 5 | 17415-MKC-A00 | TUBE (JOINT-THROTTLE BODY) | 1 шт. | — | |
|
| 6 | 17416-MKC-A00 | TUBE, OPEN AIR | 1 шт. | — | |
|
| 7 | 19126-KM1-010 | JOINT, TUBE | 1 шт. | — | |
|
| 8 | 36162-KZL-931 | VALVE, PURGE CONTROL SOLENOID | 1 шт. | — | |
|
| 9 | 50161-MKC-A00 | STAY, CANISTER | 1 шт. | — | |
|
| 10 | 50162-MKC-A00 | STAY, PURGE CONTROL SOLENOID VALVE | 1 шт. | — | |
|
| 11 | 90652-HL4-A01 | CLIP | 1 шт. | — | |
|
| 12 | 90652-KSJ-A21 | CLAMP, TUBE (8.0) | 2 шт. | — | |
|
| 13 | 90682-MKE-A01 | CLIP, CABLE | 2 шт. | — | |
|
| 14 | 93500-05010-0A | SCREW, PAN (5X10) | 2 шт. | — | |
|
| 15 | 95001-75008-60M | BULK HOSE, FUEL (7.5X8000) (7.3X350) (BULK HOSE: 95001-75008-40M) | 1 шт. | — | |
|
| 16 | 95005-45001-20M | BULK HOSE, VACUUM (4.5X1000) (4.5X130) (BULK HOSE: 95005-45001-20M) | 1 шт. | — | |
|
| 17 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 1 шт. | — | |
|
