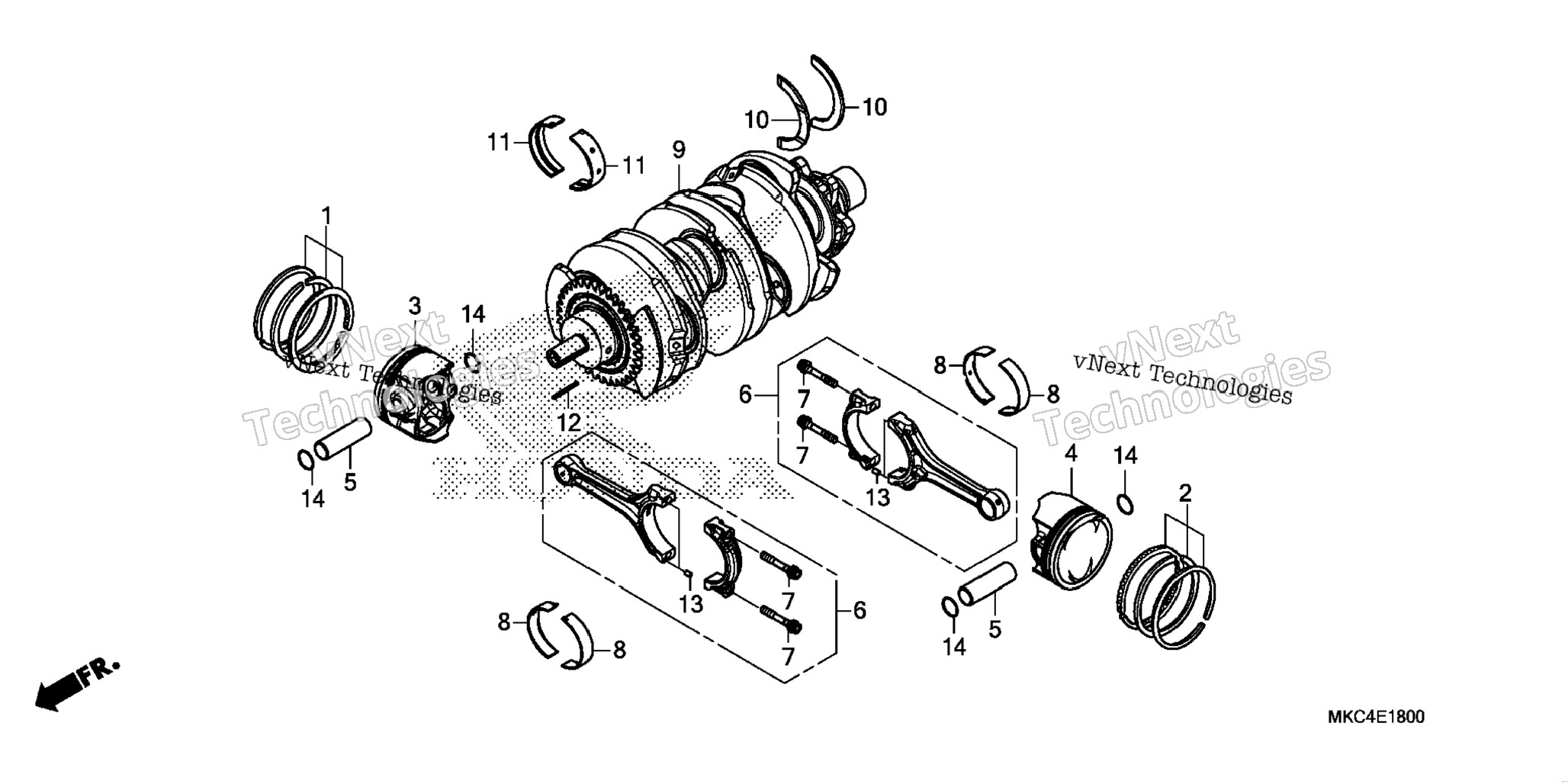

| 1 | 13011-MKC-A00 | RING SET, R. PISTON (0.25) (Optional). | 3 шт. | — | |
|
| 1 | 13010-MKC-A00 | RING SET, R. PISTON (STD) | 3 шт. | — | |
|
| 2 | 13016-MKC-A00 | RING SET, L. PISTON (0.25) (Optional). | 3 шт. | — | |
|
| 2 | 13015-MKC-A00 | RING SET, L. PISTON (STD) | 3 шт. | — | |
|
| 3 | 13103-MKC-305 | PISTON, R. (0.25) (Optional). | 3 шт. | — | |
|
| 3 | 13101-MKC-A00 | PISTON, R. (STD) | 3 шт. | — | |
|
| 4 | 13107-MKC-305 | PISTON, L. (0.25) (Optional). | 3 шт. | — | |
|
| 4 | 13102-MKC-A00 | PISTON, L. (STD) | 3 шт. | — | |
|
| 5 | 13111-KCZ-000 | PIN, PISTON Use from Engine SN 6017830. | 6 шт. | — | |
|
| 5 | 13111-MKC-A00 | PIN, PISTON Use up to Engine SN 6017829. | 6 шт. | — | |
|
| 6 | 13210-MKC-A00 | ROD ASSY., CONNECTING | 6 шт. | — | |
|
| 7 | 13213-MKC-A01 | BOLT, CONNECTING ROD | 12 шт. | — | |
|
| 8 | 13214-MKC-A01 | BEARING A, CONNECTING ROD (BLUE) | 12 шт. | — | |
|
| 8 | 13215-MKC-A01 | BEARING B, CONNECTING ROD (BLACK) | 12 шт. | — | |
|
| 8 | 13216-MKC-A01 | BEARING C, CONNECTING ROD (BROWN) | 12 шт. | — | |
|
| 8 | 13217-MKC-A01 | BEARING D, CONNECTING ROD (GREEN) | 12 шт. | — | |
|
| 8 | 13218-MKC-A01 | BEARING E, CONNECTING ROD (YELLOW) | 12 шт. | — | |
|
| 9 | 13300-MKC-A00 | CRANKSHAFT ASSY. | 1 шт. | — | |
|
| 10 | 13312-MN5-003 | BEARING, THRUST | 2 шт. | — | |
|
| 11 | 13313-MKC-A01 | BEARING A, CRANKSHAFT (BLUE) | 8 шт. | — | |
|
| 11 | 13314-MKC-A01 | BEARING B, CRANKSHAFT (BLACK) | 8 шт. | — | |
|
| 11 | 13315-MKC-A01 | BEARING C, CRANKSHAFT (BROWN) | 8 шт. | — | |
|
| 11 | 13316-MKC-A01 | BEARING D, CRANKSHAFT (GREEN) | 8 шт. | — | |
|
| 11 | 13317-MKC-A01 | BEARING E, CRANKSHAFT (YELLOW) | 8 шт. | — | |
|
| 12 | 90701-MCA-010 | KEY (2X2X30) | 1 шт. | — | |
|
| 13 | 94303-03050 | PIN, DOWEL (3X5) | 12 шт. | — | |
|
| 14 | 94601-17000 | CLIP, PISTON PIN (17MM) | 12 шт. | — | |
|
