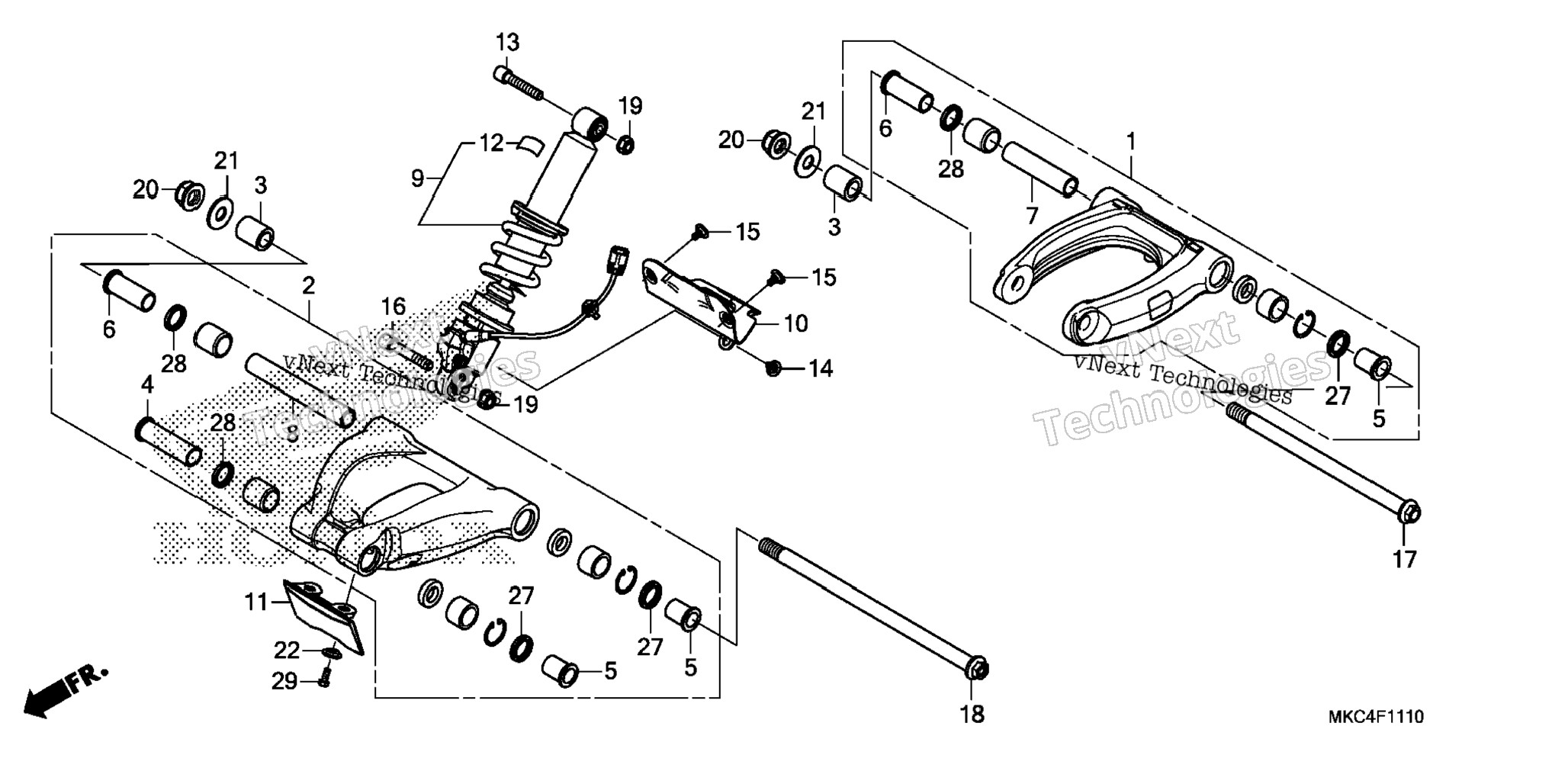

| 1 | 51350-MKC-A00ZB | ARM ASSY., FR. (UPPER) (TYPE1) | 1 шт. | — | |
|
| 2 | 51360-MKC-A00ZB | ARM ASSY., FR. (LOWER) (TYPE1) | 1 шт. | — | |
|
| 3 | 51363-MKC-A00 | BOLT, FR. PIVOT ADJUSTING | 2 шт. | — | |
|
| 4 | 51364-MKC-A00 | COLLAR A, R. PIVOT DISTANCE | 1 шт. | — | |
|
| 5 | 51365-MKC-A00 | COLLAR, L. PIVOT DISTANCE | 3 шт. | — | |
|
| 6 | 51366-MKC-A00 | COLLAR B, R. PIVOT DISTANCE | 2 шт. | — | |
|
| 7 | 51367-MKC-A00 | COLLAR, FR. ARM DISTANCE (UPPER) | 1 шт. | — | |
|
| 8 | 51368-MKC-A00 | COLLAR A, FR. ARM DISTANCE (LOWER) | 1 шт. | — | |
|
| 9 | 51400-MKC-A01 | CUSHION ASSY., FR. | 1 шт. | — | |
|
| 10 | 51405-MKC-A00 | COVER, ARM (LOWER) | 1 шт. | — | |
|
| 11 | 61115-MKC-A00 | FLAP, AIR GUIDE | 1 шт. | — | |
|
| 12 | 87516-KV6-610 | LABEL, RR. DAMPER CAUTION (ENGLISH) | 1 шт. | — | |
|
| 13 | 90110-ML7-000 | BOLT, SOCKET (10X55) | 1 шт. | — | |
|
| 14 | 90114-MGE-000 | SCREW, SPECIAL (5X11) | 1 шт. | — | |
|
| 15 | 90114-MKC-A00 | SCREW, SPECIAL (5X15) | 2 шт. | — | |
|
| 16 | 90171-MKC-A00 | BOLT, SOCKET (10X58) | 1 шт. | — | |
|
| 17 | 90172-MKC-A00 | BOLT, FR. ARM PIVOT (UPPER) | 1 шт. | — | |
|
| 18 | 90173-MKC-A00 | BOLT, FR. ARM PIVOT (LOWER) | 1 шт. | — | |
|
| 19 | 90304-GE8-003 | NUT, U (10MM) NUT, SELF-LOCK (10MM) | 2 шт. | — | |
|
| 20 | 90305-MCB-610 | NUT, SPECIAL U (16MM) | 2 шт. | — | |
|
| 21 | 90501-MKC-A00 | WASHER, ARM PIVOT | 2 шт. | — | |
|
| 22 | 90554-MBT-610 | WASHER, KNUCKLE | 2 шт. | — | |
|
| 27 | 91253-HL1-A01 | OIL SEAL (22X30X5) | 3 шт. | — | |
|
| 28 | 91283-ML7-003 | DUST SEAL (22X29X4) (ARAI) | 3 шт. | — | |
|
| 29 | 92101-05012-0G | BOLT, HEX. (5X12) | 2 шт. | — | |
|
| 29 | 92101-05012-0A | BOLT, HEX. (5X12) | 2 шт. | — | |
|
