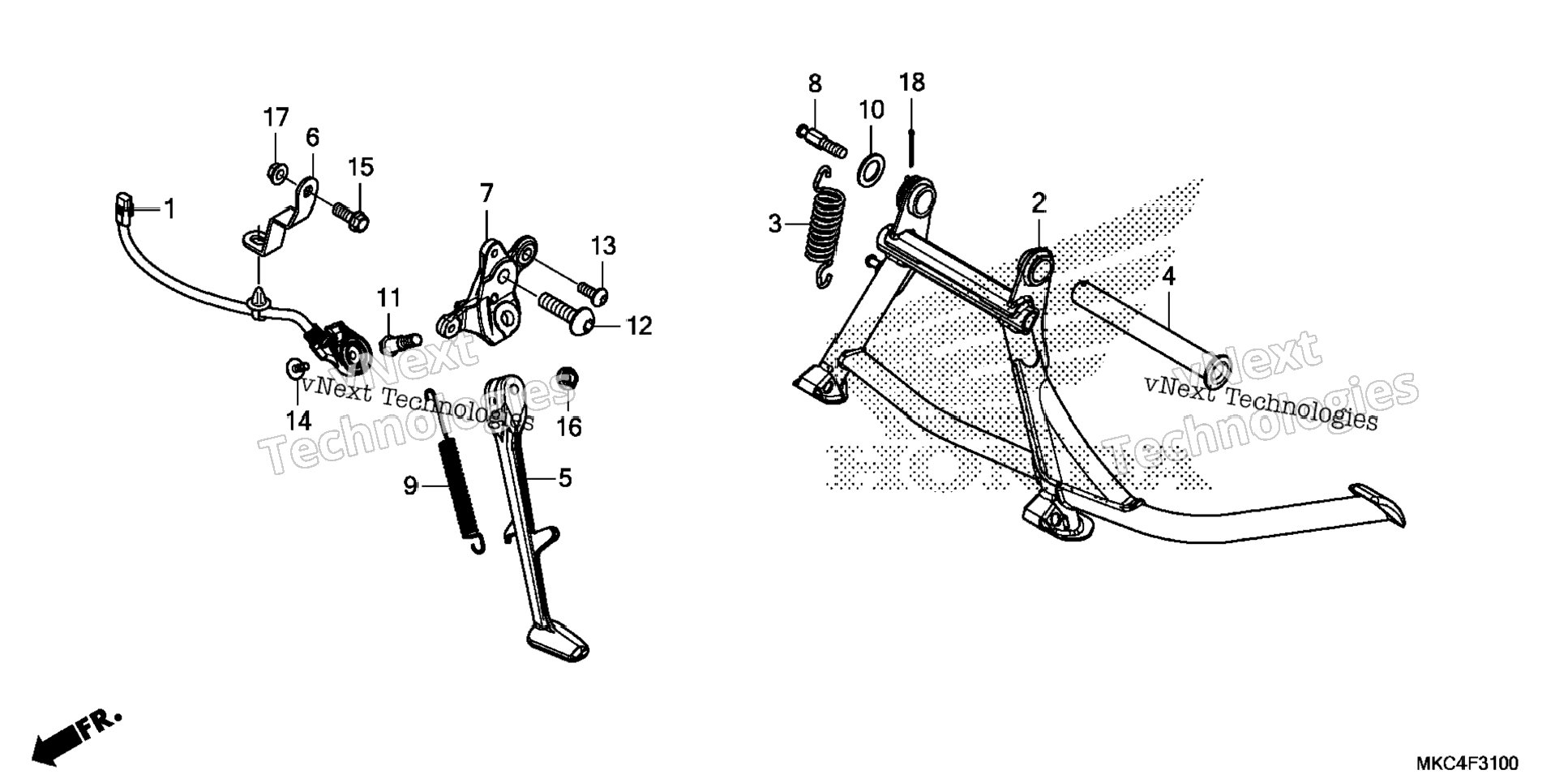

| 1 | 35700-MKC-A01 | SWITCH ASSY., SIDE STAND (DCT) | 1 шт. | — | |
|
| 2 | 50500-MKC-A00 | STAND, MAIN | 1 шт. | — | |
|
| 3 | 50525-MKC-A00 | SPRING, MAIN STAND | 1 шт. | — | |
|
| 4 | 50526-MKC-A00 | PIPE, MAIN STAND PIVOT | 1 шт. | — | |
|
| 5 | 50530-MKC-A00 | BAR, SIDE STAND | 1 шт. | — | |
|
| 6 | 50533-MKC-A00 | STAY, SIDE STAND SWITCH HARNESS | 1 шт. | — | |
|
| 7 | 50535-MKC-A00 | BRACKET, SIDE STAND | 1 шт. | — | |
|
| 8 | 50538-MCA-000 | HOOK, MAIN STAND SPRING | 1 шт. | — | |
|
| 9 | 50540-MFL-000 | SPRING, SIDE STAND | 1 шт. | — | |
|
| 10 | 50712-405-000 | WASHER, PILLION FOOTPEG | 1 шт. | — | |
|
| 11 | 90108-MKC-A00 | BOLT, SIDE STAND PIVOT | 1 шт. | — | |
|
| 12 | 90126-MKC-A00 | BOLT, SOCKET (12X45) Use up to Frame SN JK101499. | 1 шт. | — | |
|
| 13 | 90126-MKC-A01 | BOLT, SOCKET (12X45) Use from Frame SN JK101500. | 1 шт. | — | |
|
| 14 | 90128-KET-900 | BOLT, SOCKET (8X22) | 1 шт. | — | |
|
| 15 | 90147-MCE-950 | BOLT, SPECIAL (6X16) | 1 шт. | — | |
|
| 16 | 90163-GHB-660 | BOLT, FLANGE (8X22) | 1 шт. | — | |
|
| 17 | 90303-MKC-A00 | NUT, SIDE STAND | 1 шт. | — | |
|
| 18 | 94050-08070 | NUT, FLANGE (8MM) | 1 шт. | — | |
|
| 19 | 94201-25300 | PIN, COTTER (2.5MM) | 1 шт. | — | |
|
