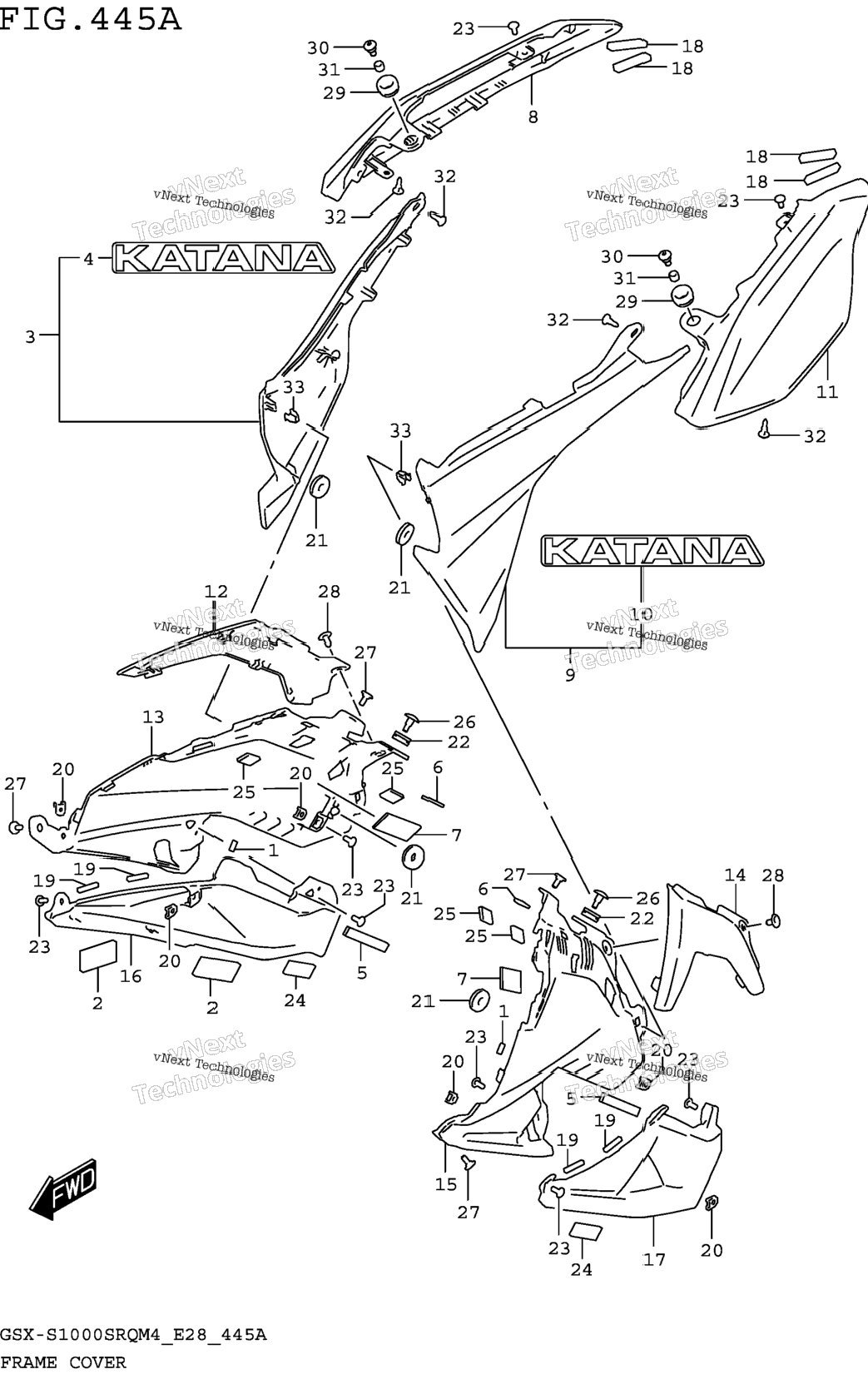

| 1 | 44292-07L00 | CUSHION,FUEL TANK COVER | 2 шт. | — | |
|
| 2 | 44294-14H00 | .CUSHION (20X40X3) | 2 шт. | — | |
|
| 3 | 47110-07L00-YKV | COVER,FRAME,R (BLACK) | 1 шт. | — | |
|
| 5 | 47114-07L00 | CUSHION,FRAME COVER LWR | 2 шт. | — | |
|
| 6 | 47115-07L00 | CUSHION,FRAME COVER CTR | 2 шт. | — | |
|
| 7 | 47116-07L00 | CUSHION,FRAME COVER | 2 шт. | — | |
|
| 8-1 | 47121-07L01-YUA | COVER,FRAME REAR,R (BLUE) FOR YUA | 0 шт. | — | |
|
| 8-2 | 47121-07L01-YUD | COVER,FRAME REAR,R (GRAY) FOR YUD | 1 шт. | — | |
|
| 8-3 | 47121-07L01-YVB | COVER,FRAME REAR,R (BLACK) FOR BCX | 1 шт. | — | |
|
| 9 | 47210-07L00-YKV | COVER,FRAME,L (BLACK) | 1 шт. | — | |
|
| 10 | 68161-07L00-CTY | .EMBLEM,FRAME COVER (SILVER,B (SILVER/BLACK) | 1 шт. | — | |
|
| 10 | 68161-07L00-CTY | .EMBLEM,FRAME COVER (SILVER,B (SILVER/BLACK) | 1 шт. | — | |
|
| 11-1 | 47221-07L01-YUA | COVER,FRAME REAR,L (BLUE) FOR YUA | 0 шт. | — | |
|
| 11-2 | 47221-07L01-YUD | COVER,FRAME REAR,L (GRAY) FOR YUD | 1 шт. | — | |
|
| 11-3 | 47221-07L01-YVB | COVER,FRAME REAR,L (BLACK) FOR BCX | 1 шт. | — | |
|
| 12 | 47311-07L01-YVB | COVER,FRAME FRONT UPPER,R (BL (BLACK) | 1 шт. | — | |
|
| 13-1 | 47312-07L00-YMD | COVER,FRAME FR CTR,R (SILVER) (SILVER) FOR BCX | 1 шт. | — | |
|
| 13-2 | 47312-07L00-YUA | COVER,FRAME FR CTR,R (BLUE) FOR YUA | 0 шт. | — | |
|
| 13-3 | 47312-07L00-YUD | COVER,FRAME FR CTR,R (GRAY) FOR YUD | 1 шт. | — | |
|
| 14 | 47321-07L01-YVB | COVER,FRAME FRONT UPPER,L (BL (BLACK) | 1 шт. | — | |
|
| 15-1 | 47322-07L00-YMD | COVER,FRAME FRONT CENTER,L (S (SILVER) FOR BCX | 1 шт. | — | |
|
| 15-2 | 47322-07L00-YUA | COVER,FRAME FRONT CENTER,L (B (BLUE) FOR YUA | 0 шт. | — | |
|
| 15-3 | 47322-07L00-YUD | COVER,FRAME FRONT CENTER,L (G (GRAY) FOR YUD | 1 шт. | — | |
|
| 16 | 47411-07L00 | COVER,FRAME FR LWR,R | 1 шт. | — | |
|
| 17 | 47511-07L00 | COVER,FRAME FR LWR,L | 1 шт. | — | |
|
| 18 | 94412-31F00 | CUSHION (12X50X10) | 4 шт. | — | |
|
| 19 | 94443-06G00 | TAPE (6X25X0.13) | 4 шт. | — | |
|
| 20 | 09148-05045 | NUT (M5) | 6 шт. | — | |
|
| 21 | 09320-08018 | CUSHION (8X26X7) | 4 шт. | — | |
|
| 22 | 09320-08510 | CUSHION (8.5X20X8) | 2 шт. | — | |
|
| 23 | 03541-0512A | SCREW | 8 шт. | — | |
|
| 24 | 47163-10FA0 | CUSHION (15X23X4) | 2 шт. | — | |
|
| 25 | 47912-37H00 | FASTENER,FRAME COVER (15X25) | 4 шт. | — | |
|
| 26 | 09139-05078 | SCREW (5X16.4) | 2 шт. | — | |
|
| 27 | 09139-05091 | SCREW (5X13) | 4 шт. | — | |
|
| 28 | 09409-06328 | CLIP | 2 шт. | — | |
|
| 29 | 47312-37H10 | CUSHION (10X24X13) | 2 шт. | — | |
|
| 30 | 09139-06030 | SCREW (6X16) | 2 шт. | — | |
|
| 31 | 09180-06283 | SPACER (6.5X10X7) | 2 шт. | — | |
|
| 32 | 09409-06314 | CLIP (5.9X20.5) | 4 шт. | — | |
|
| 33 | 09409-08326 | CLIP (10.5X14.3) | 2 шт. | — | |
|
