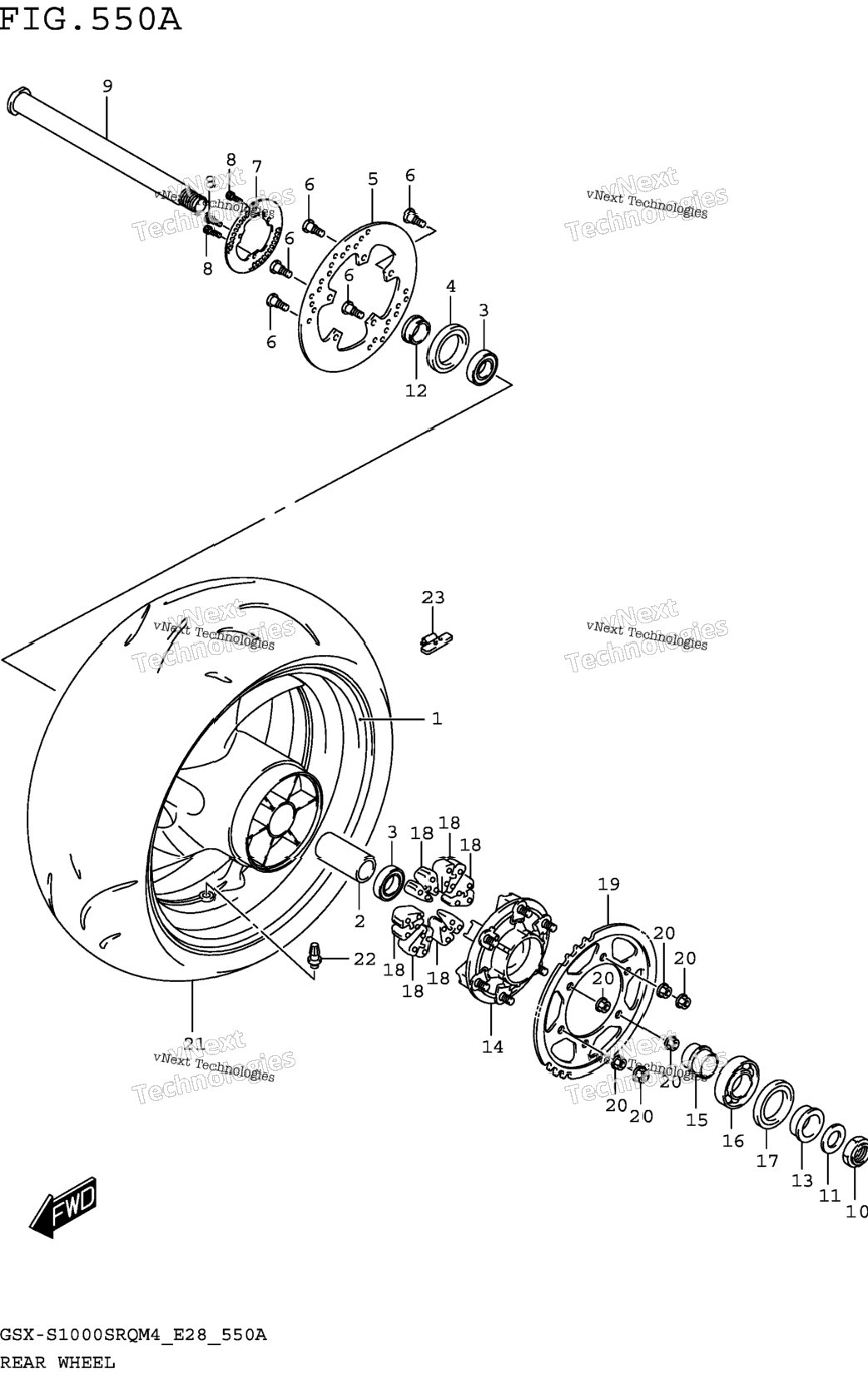

| 1 | 64111-04K30-QGY | WHEEL,REAR (17M/CXMT6.00,RED) (RED) FOR YUD | 0 шт. | — | |
|
| 2 | 64111-04K30-YMY | WHEEL, REAR (17M/CXMT6.00) (SILVER) FOR BCX | 1 шт. | — | |
|
| 3 | 64111-04K30-YPU | WHEEL,REAR (17M/CXMT6.00,GOLD (GOLD) FOR YUA | 1 шт. | — | |
|
| 4 | 64731-35F10 | SPACER,RR HUB BEARING | 1 шт. | — | |
|
| 5 | 09262-28062 | BEARING (28X52X12) | 2 шт. | — | |
|
| 6 | 09284-37002 | SEAL,OIL (37X52X8) | 1 шт. | — | |
|
| 7 | 69211-04K00 | DISC, REAR BRAKE | 1 шт. | — | |
|
| 8 | 09106-08160 | BOLT (8X21) | 5 шт. | — | |
|
| 9 | 64162-04K10 | RING,SPEED SENSOR RR (50T) | 0 шт. | — | |
|
| 10 | 07130-0512A | BOLT | 3 шт. | — | |
|
| 11 | 64711-49G30 | AXLE, RR | 1 шт. | — | |
|
| 12 | 64721-17K00 | NUT,REAR AXLE | 1 шт. | — | |
|
| 13 | 09160-25070 | WASHER (25.2X42X3.2) | 1 шт. | — | |
|
| 14 | 64741-35F10 | SPACER,REAR AXLE,R | 1 шт. | — | |
|
| 15 | 64751-47H10 | SPACER,REAR AXLE,L | 1 шт. | — | |
|
| 16 | 64610-04K00 | DRUM,REAR SPROCKET | 1 шт. | — | |
|
| 17 | 64733-35F00 | RETAINER,RR SPROCKET DRUM | 1 шт. | — | |
|
| 18 | 09262-32024 | BEARING (32X65X17) | 1 шт. | — | |
|
| 19 | 09285-39001 | OIL SEAL (39X65X7) | 1 шт. | — | |
|
| 20 | 64651-47H10 | ABSORBER,RR HUB SHOCK | 6 шт. | — | |
|
| 21 | 64511-04K00 | SPROCKET, REAR (NT:44) | 1 шт. | — | |
|
| 22 | 08319-3110A | NUT | 6 шт. | — | |
|
| 23 | 65110-07L11 | TIRE, REAR (190/50ZR17M/C (73W)) SPORTMAX ROADSPORT2 M,DUNLOP | 0 шт. | — | |
|
| 24 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
|
| 25 | 55411-22H00 | BALANCER,WHEEL (10G) | 1 шт. | — | |
|
| 26 | 55412-22H00 | BALANCER,WHEEL (20G) | 1 шт. | — | |
|
| 27 | 55413-22H00 | BALANCER,WHEEL (30G) | 1 шт. | — | |
|
