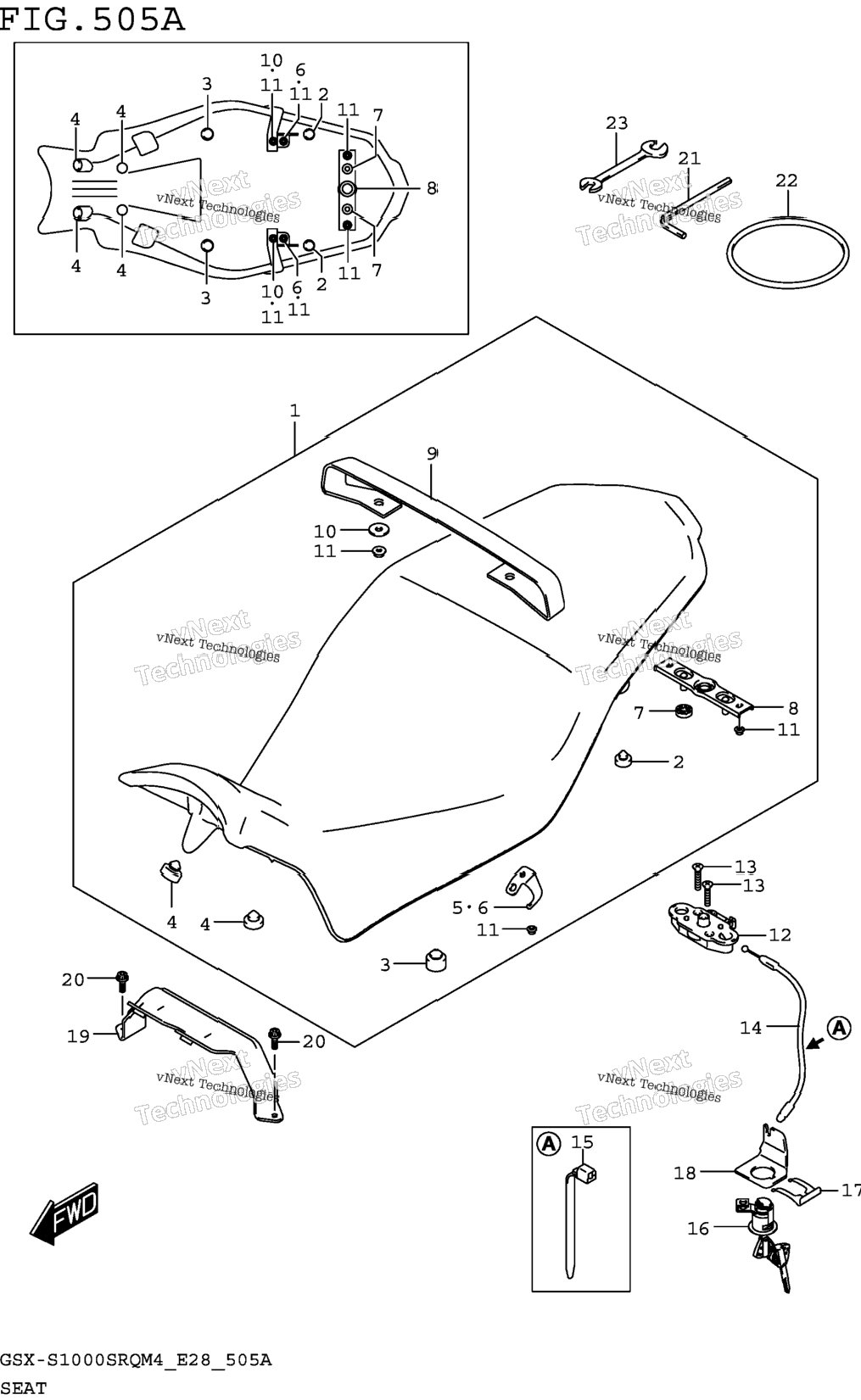

| 1 | 45100-07L02-CCS | SEAT ASSY (BLACK,GLAY,GRAY) | 0 шт. | — | |
|
| 2 | 09321-10011 | .CUSHION | 2 шт. | — | |
|
| 3 | 45148-07L00 | .CUSHION | 2 шт. | — | |
|
| 4 | 45148-23J00 | .CUSHION,SEAT MOUNT | 4 шт. | — | |
|
| 5 | 45116-07L00 | .PLATE,SEAT HOOK,R | 1 шт. | — | |
|
| 6 | 45117-07L00 | .PLATE,SEAT HOOK,L | 1 шт. | — | |
|
| 7 | 33652-21G00 | CUSHION (10X20X5) | 2 шт. | — | |
|
| 8 | 45215-26F00 | .STRIKER,SEAT LOCK | 1 шт. | — | |
|
| 9 | 45380-07L01 | .BAND,SEAT | 1 шт. | — | |
|
| 10 | 09160-06088 | WASHER (6.5X20X1.6) | 2 шт. | — | |
|
| 11 | 08316-1006A | NUT (6X12) | 6 шт. | — | |
|
| 12 | 45220-47H00 | BRACKET,SEAT SUPPORT | 1 шт. | — | |
|
| 13 | 02122-0630A | SCREW | 2 шт. | — | |
|
| 14 | 45280-07L00 | CABLE,SEAT LOCK | 1 шт. | — | |
|
| 15 | 09407-14403 | CLAMP (L:125) | 1 шт. | — | |
|
| 16 | 95700-14810 | LOCK SET,SEAT | 1 шт. | — | |
|
| 17 | 45289-11F00 | PLATE,SEAT LOCK ASSY | 1 шт. | — | |
|
| 18 | 45288-14F00 | GUIDE,SEAT LOCK CABLE | 1 шт. | — | |
|
| 19 | 45130-07L00 | BRACKET,SEAT | 1 шт. | — | |
|
| 20 | 07120-0612A | BOLT | 2 шт. | — | |
|
| 21 | 96514-17K00 | SPANNER,HEXAGON (5) | 1 шт. | — | |
|
| 22 | 09280-57003 | O-RING (D:3.5,ID:56.5) | 0 шт. | — | |
|
| 23 | 09813-00031 | SPANNER (14X17) | 0 шт. | — | |
|
