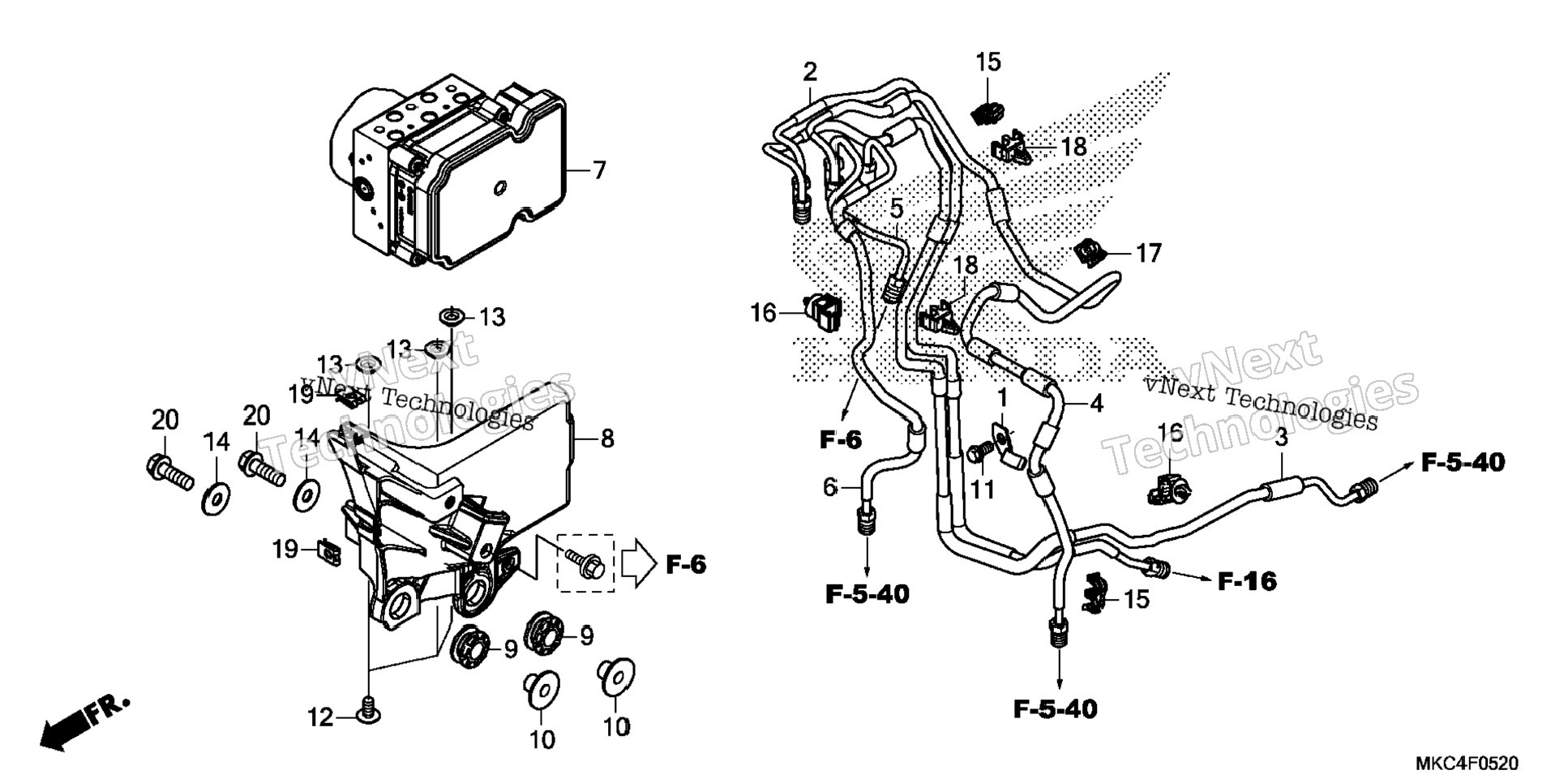

| 1 | 43165-MKC-A00 | CLAMP C, BRAKE SUB | 1 шт. | — | |
|
| 2 | 43311-MKC-A00 | PIPE A, RR. BRAKE | 1 шт. | — | |
|
| 3 | 43312-MKC-A00 | PIPE B, RR. BRAKE | 1 шт. | — | |
|
| 4 | 43321-MKC-A00 | PIPE B, SUB-BRAKE | 1 шт. | — | |
|
| 5 | 45124-MKC-A00 | PIPE A, FR. BRAKE | 1 шт. | — | |
|
| 6 | 45125-MKC-A00 | PIPE B, FR. BRAKE | 1 шт. | — | |
|
| 7 | 57110-MKC-A21 | MODULATOR ASSY. | 1 шт. | — | |
|
| 8 | 57150-MKC-A00 | STAY, ABS MODULATOR | 1 шт. | — | |
|
| 9 | 57156-MGE-000 | CUSHION, RUBBER | 2 шт. | — | |
|
| 10 | 77216-KG1-920 | COLLAR, SEAT MOUNTING | 2 шт. | — | |
|
| 11 | 90013-GHB-610 | BOLT, FLANGE (6X12) (L. SIDE ONLY) | 1 шт. | — | |
|
| 12 | 90106-MAV-000 | SCREW, PAN (6X12) | 3 шт. | — | |
|
| 13 | 90522-170-700 | COLLAR, GEARSHIFT LEVER SETTING | 3 шт. | — | |
|
| 14 | 90524-030-000 | WASHER A, HANDLE HOLDER SETTING | 2 шт. | — | |
|
| 15 | 90661-MCA-003 | CLAMP, BRAKE PIPE | 2 шт. | — | |
|
| 16 | 90661-MGS-D71 | CLAMP, BRAKE PIPE (7.0) | 2 шт. | — | |
|
| 17 | 90663-MCA-971 | CLAMP, BRAKE PIPE (6.8) | 1 шт. | — | |
|
| 18 | 90664-MCA-003 | CLAMP, BRAKE PIPE (7.0X2) | 2 шт. | — | |
|
| 19 | 90677-KAN-961 | NUT, CLIP (5MM) | 2 шт. | — | |
|
| 20 | 95701-08025-00 | BOLT, FLANGE (8X25) | 2 шт. | — | |
|
