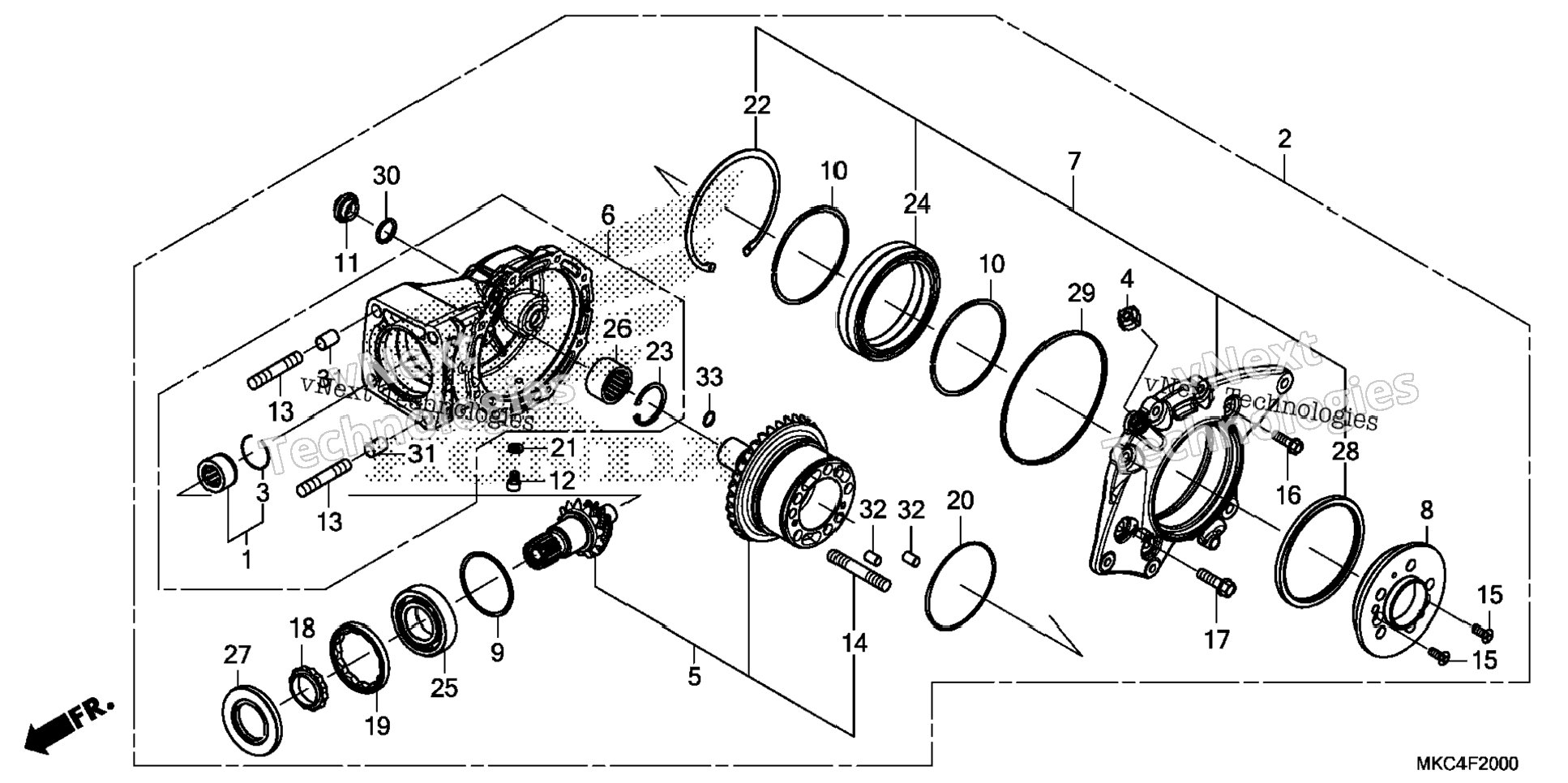

| 1 | 06910-MCA-000 | BEARING SET, NEEDLE | 1 шт. | — | |
|
| 2 | 41300-MKC-A20 | GEAR ASSY., FINAL | 1 шт. | — | |
|
| 3 | 41305-MB4-770 | RING, STOPPER | 1 шт. | — | |
|
| 4 | 41306-MKC-A00 | CAP, BREATHER | 1 шт. | — | |
|
| 5 | 41310-MKC-A00 | GEAR SET, FINAL | 1 шт. | — | |
|
| 6 | 41311-MKC-A00 | CASE SUB-ASSY., FINAL GEAR | 1 шт. | — | |
|
| 7 | 41320-MKC-A20 | COVER SUB-ASSY., FINAL GEAR | 1 шт. | — | |
|
| 8 | 41441-MKC-A00 | FLANGE, FINAL GEAR SIDE | 1 шт. | — | |
|
| 9 | 41450-MGE-000 | SHIM A, PINION GEAR (1.32) | 1 шт. | — | |
|
| 10 | 41451-MGE-000 | SHIM B, PINION GEAR (1.38) | 1 шт. | — | |
|
| 11 | 41452-MGE-000 | SHIM C, PINION GEAR (1.44) | 1 шт. | — | |
|
| 12 | 41453-MGE-000 | SHIM D, PINION GEAR (1.50) | 1 шт. | — | |
|
| 13 | 41454-MGE-000 | SHIM E, PINION GEAR (1.56) | 1 шт. | — | |
|
| 14 | 41455-MGE-000 | SHIM F, PINION GEAR (1.62) | 1 шт. | — | |
|
| 15 | 41456-MGE-000 | SHIM G, PINION GEAR (1.68) | 1 шт. | — | |
|
| 16 | 41530-MCA-000 | SHIM A, RING GEAR (1.82) | 2 шт. | — | |
|
| 17 | 41531-MCA-000 | SHIM B, RING GEAR (1.88) | 2 шт. | — | |
|
| 18 | 41532-MCA-000 | SHIM C, RING GEAR (1.94) | 2 шт. | — | |
|
| 19 | 41533-MCA-000 | SHIM D, RING GEAR (2.00) | 2 шт. | — | |
|
| 20 | 41534-MCA-000 | SHIM E, RING GEAR (2.06) | 2 шт. | — | |
|
| 21 | 41535-MCA-000 | SHIM F, RING GEAR (2.12) | 2 шт. | — | |
|
| 22 | 41536-MCA-000 | SHIM G, RING GEAR (2.18) | 2 шт. | — | |
|
| 23 | 41537-MCA-000 | SHIM H, RING GEAR (2.24) | 2 шт. | — | |
|
| 24 | 41538-MCA-000 | SHIM I, RING GEAR (2.30) | 2 шт. | — | |
|
| 25 | 41539-MCA-000 | SHIM J, RING GEAR (2.36) | 2 шт. | — | |
|
| 26 | 41540-MCA-000 | SHIM K, RING GEAR (2.42) | 2 шт. | — | |
|
| 27 | 41541-MCA-000 | SHIM L, RING GEAR (2.48) | 2 шт. | — | |
|
| 28 | 41547-MCA-000 | SHIM S, RING GEAR (1.76) | 2 шт. | — | |
|
| 29 | 41530-MGE-000 | CAP, FINAL GEAR CASE HOLE | 1 шт. | — | |
|
| 30 | 90109-ME5-770 | BOLT, SOCKET (8X11) | 1 шт. | — | |
|
| 31 | 90124-MGE-300 | BOLT, STUD (12X48) | 4 шт. | — | |
|
| 32 | 90125-MKC-A00 | BOLT, STUD (12X51) | 5 шт. | — | |
|
| 33 | 90132-MCA-000 | SCREW, FLAT (6X16) | 2 шт. | — | |
|
| 34 | 90132-MKC-A00 | BOLT, FLANGE (8X28) | 6 шт. | — | |
|
| 35 | 90134-MGE-000 | BOLT, FLANGE (10X35) | 2 шт. | — | |
|
| 36 | 90241-MCH-000 | NUT, LOCK (35MM) | 1 шт. | — | |
|
| 37 | 90242-MCH-000 | NUT, LOCK (75MM) | 1 шт. | — | |
|
| 38 | 90351-MCA-003 | O-RING | 1 шт. | — | |
|
| 39 | 90471-580-000 | WASHER (8MM) | 1 шт. | — | |
|
| 40 | 90653-MCA-000 | CIRCLIP (INNER) (125MM) | 1 шт. | — | |
|
| 41 | 90654-MKC-A01 | CIRCLIP (INNER) (42) | 1 шт. | — | |
|
| 42 | 91051-MCA-003 | BEARING, RADIAL BALL (100X125X26) | 1 шт. | — | |
|
| 43 | 91054-MKC-A01 | BEARING, BALL SPECIAL (35X72X17) | 1 шт. | — | |
|
| 44 | 91057-MKC-A01 | BEARING, NEEDLE (30X42X23) | 1 шт. | — | |
|
| 45 | 91254-MKC-A01 | OIL SEAL (42X76X8) | 1 шт. | — | |
|
| 46 | 91265-MCA-003 | OIL SEAL (110X125X7) | 1 шт. | — | |
|
| 47 | 91351-MKC-A00 | O-RING, FINAL GEAR CASE | 1 шт. | — | |
|
| 48 | 91352-MGE-003 | O-RING (21.5X2.9) | 1 шт. | — | |
|
| 49 | 94301-14200 | PIN A, DOWEL (14X20) | 2 шт. | — | |
|
| 50 | 94303-10160 | PIN, DOWEL (10X16) | 2 шт. | — | |
|
| 51 | 91355-MGE-700 | O-RING (12X1.5) | 1 шт. | — | |
|
