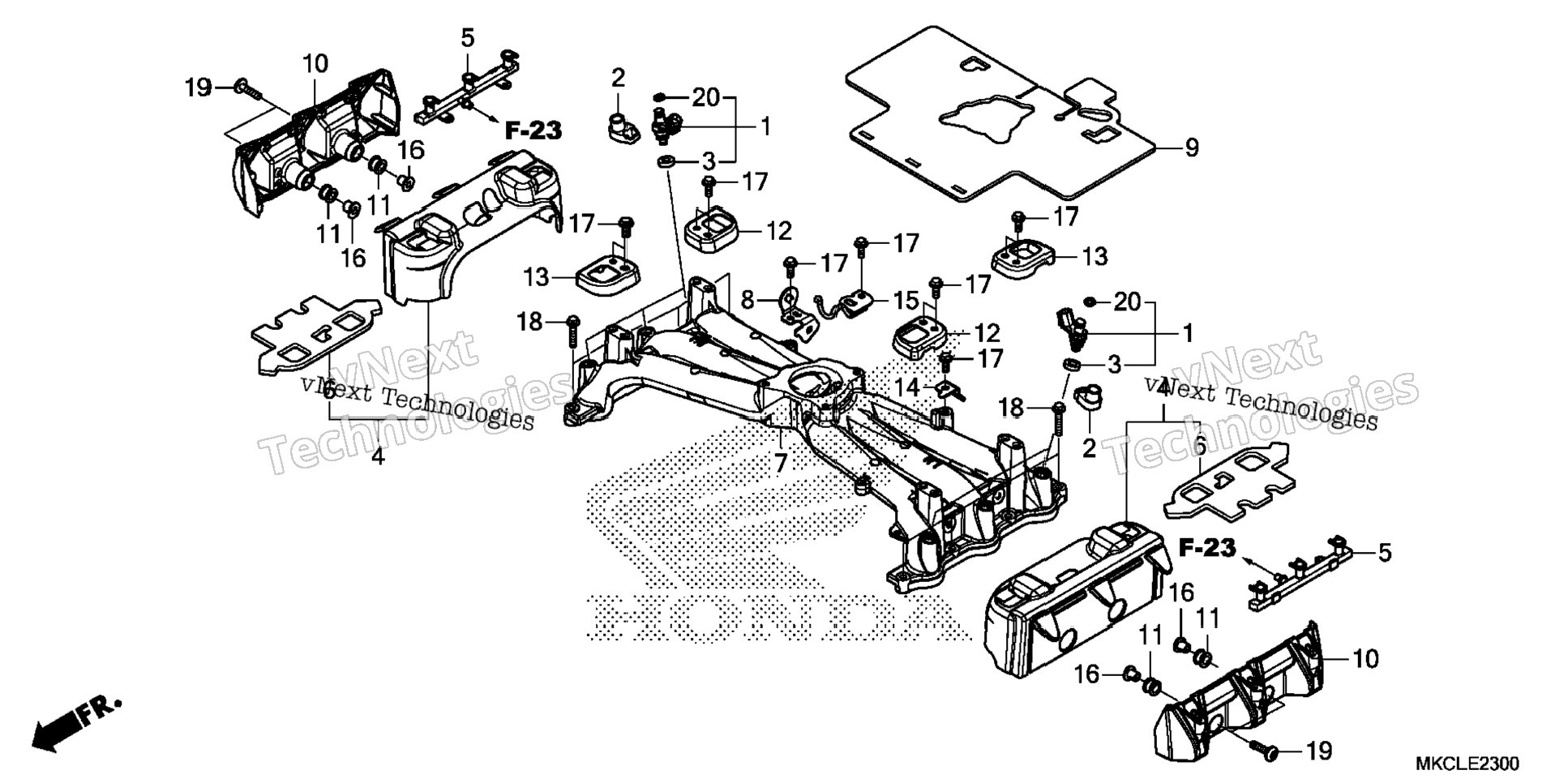

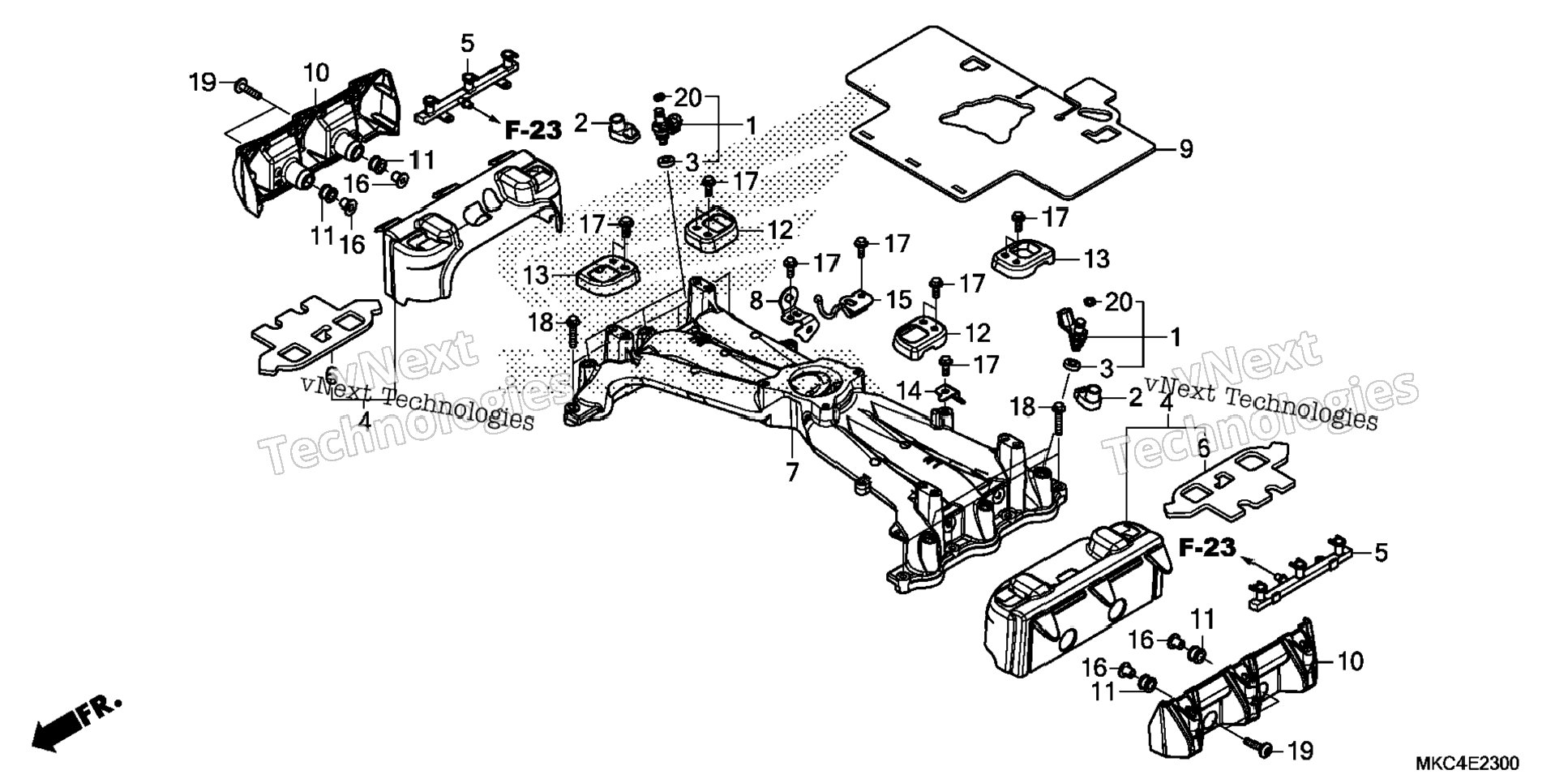

| 1 | 16450-K64-N01 | INJECTOR ASSY., FUEL | 6 шт. | — | |
|
| 2 | 16459-MKC-A00 | COVER, INJECTOR | 6 шт. | — | |
|
| 3 | 16472-KPC-D50 | RING, SEAL (Honda Code 8954000) | 6 шт. | — | |
|
| 4 | 16600-MKC-A00 | COVER ASSY., FUEL PIPE | 2 шт. | — | |
|
| 5 | 16610-MKC-A00 | PIPE, FUEL | 2 шт. | — | |
|
| 6 | 16616-MKC-A00 | MAT, IN. MANIFOLD | 2 шт. | — | |
|
| 7 | 17110-MKC-A00 | MANIFOLD, IN. | 1 шт. | — | |
|
| 8 | 17120-MKC-A00 | STAY, FUEL HOSE | 1 шт. | — | |
|
| 9 | 17140-MKC-A01 | SHEET, IN. MANIFOLD | 1 шт. | — | |
|
| 10 | 17150-MKC-A00 | COVER, IN. MANIFOLD | 2 шт. | — | |
|
| 11 | 17151-MKC-A00 | RUBBER A, IN. COVER | 4 шт. | — | |
|
| 12 | 17160-MKC-A00 | PLATE A, FUEL PIPE | 2 шт. | — | |
|
| 13 | 17170-MKC-A00 | PLATE B, FUEL PIPE | 2 шт. | — | |
|
| 14 | 19317-GET-000 | STAY, HARNESS CLIP | 1 шт. | — | |
|
| 15 | 32152-MKC-A00 | STAY B, CLIP | 1 шт. | — | |
|
| 16 | 52157-GC5-000 | COLLAR, CHAIN GUARD | 4 шт. | — | |
|
| 17 | 90017-GHB-620 | BOLT, FLANGE (6X14) (NSHF) | 11 шт. | — | |
|
| 18 | 90017-GHB-680 | BOLT, FLANGE (6X28) (NSHF) | 8 шт. | — | |
|
| 19 | 90115-MKC-A00 | BOLT, SPECIAL (6X25) | 4 шт. | — | |
|
| 20 | 91301-GGL-J01 | O-RING (6.3X2.2) | 6 шт. | — | |
|
