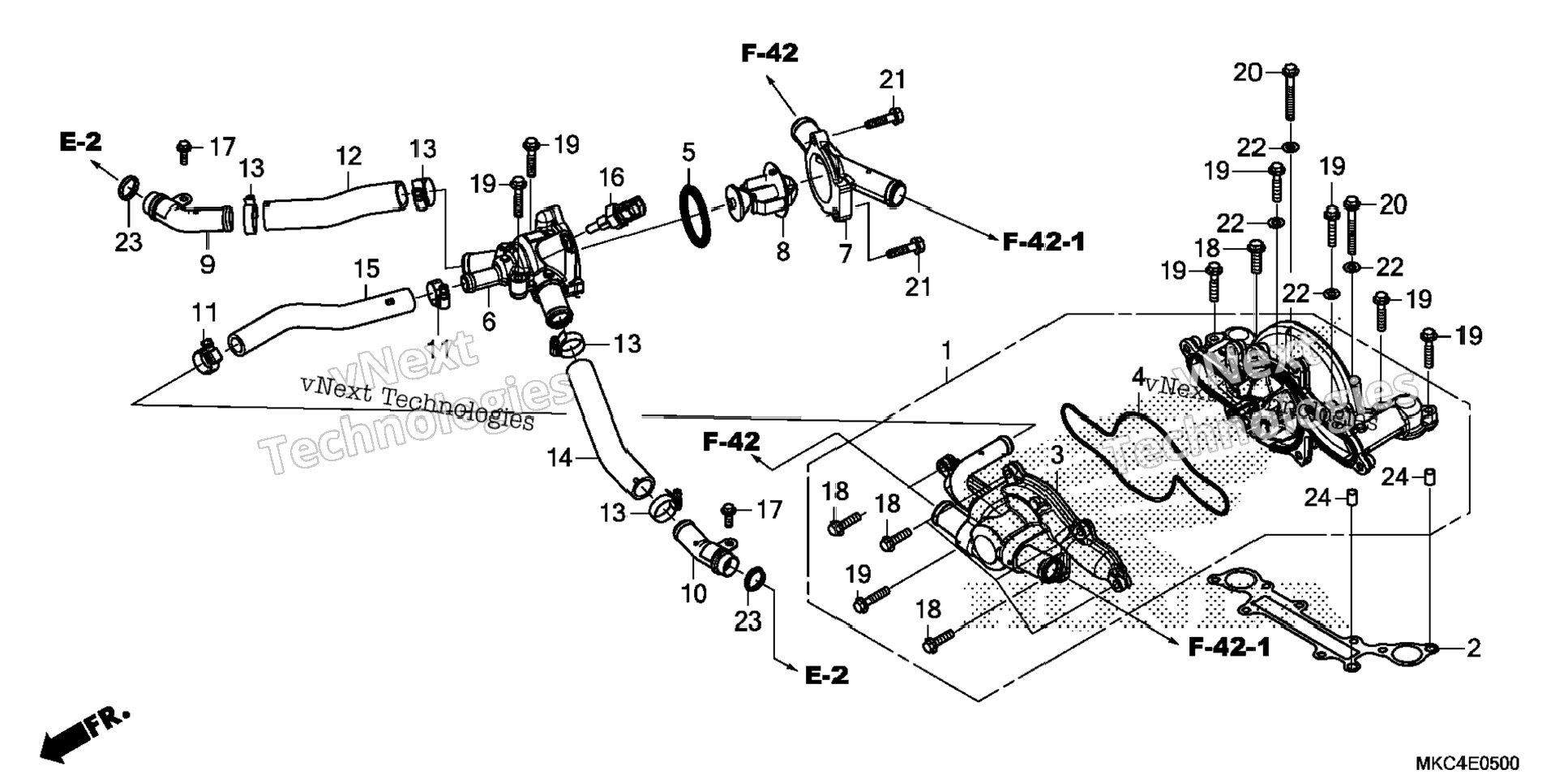

| 1 | 19200-MKC-305 | WATER PUMP ASSY. | 1 шт. | — | |
|
| 2 | 19216-MKC-A01 | GASKET, WATER PUMP BODY | 1 шт. | — | |
|
| 3 | 19220-MKC-A00 | COVER, WATER PUMP | 1 шт. | — | |
|
| 4 | 19226-MKC-A00 | GASKET, WATER PUMP COVER | 1 шт. | — | |
|
| 5 | 19305-KV3-010 | RUBBER, THERMOSTAT | 1 шт. | — | |
|
| 6 | 19310-MKC-305 | CASE, THERMOSTAT | 1 шт. | — | |
|
| 7 | 19315-MKC-A00 | COVER, THERMOSTAT | 1 шт. | — | |
|
| 8 | 19320-MKF-D41 | THERMOSTAT | 1 шт. | — | |
|
| 9 | 19411-MKC-A00 | PIPE, R. WATER | 1 шт. | — | |
|
| 10 | 19421-MKC-A00 | PIPE, L. WATER | 1 шт. | — | |
|
| 11 | 19505-KS6-700 | CLAMP, WATER HOSE (A) | 2 шт. | — | |
|
| 12 | 19505-MKC-A00 | HOSE, R. HEAD | 1 шт. | — | |
|
| 13 | 19506-KS6-700 | CLAMP B, WATER HOSE | 4 шт. | — | |
|
| 14 | 19506-MKC-A00 | HOSE, L. HEAD | 1 шт. | — | |
|
| 15 | 19507-MKC-A00 | HOSE, BYPASS (BOTTOM) | 1 шт. | — | |
|
| 16 | 37870-MGS-D31 | SENSOR ASSY., WATER TEMPERATURE | 1 шт. | — | |
|
| 17 | 90017-GHB-630 | BOLT, FLANGE (6X16) (NSHF) | 2 шт. | — | |
|
| 18 | 90017-GHB-660 | BOLT, FLANGE (6X22) (NSHF) | 6 шт. | — | |
|
| 19 | 90017-GHB-680 | BOLT, FLANGE (6X28) (NSHF) | 8 шт. | — | |
|
| 20 | 90017-GHB-720 | BOLT, FLANGE (6X45) (NSHF) | 2 шт. | — | |
|
| 21 | 90018-MKC-A00 | BOLT, FLANGE (6X23) (CT200) | 2 шт. | — | |
|
| 22 | 90488-425-000 | WASHER, SEALING (6MM) | 4 шт. | — | |
|
| 23 | 91316-MKC-A01 | SEAL, WATER PIPE (22.5MM) | 2 шт. | — | |
|
| 24 | 94301-08100 | PIN A, DOWEL (8X10) | 2 шт. | — | |
|
