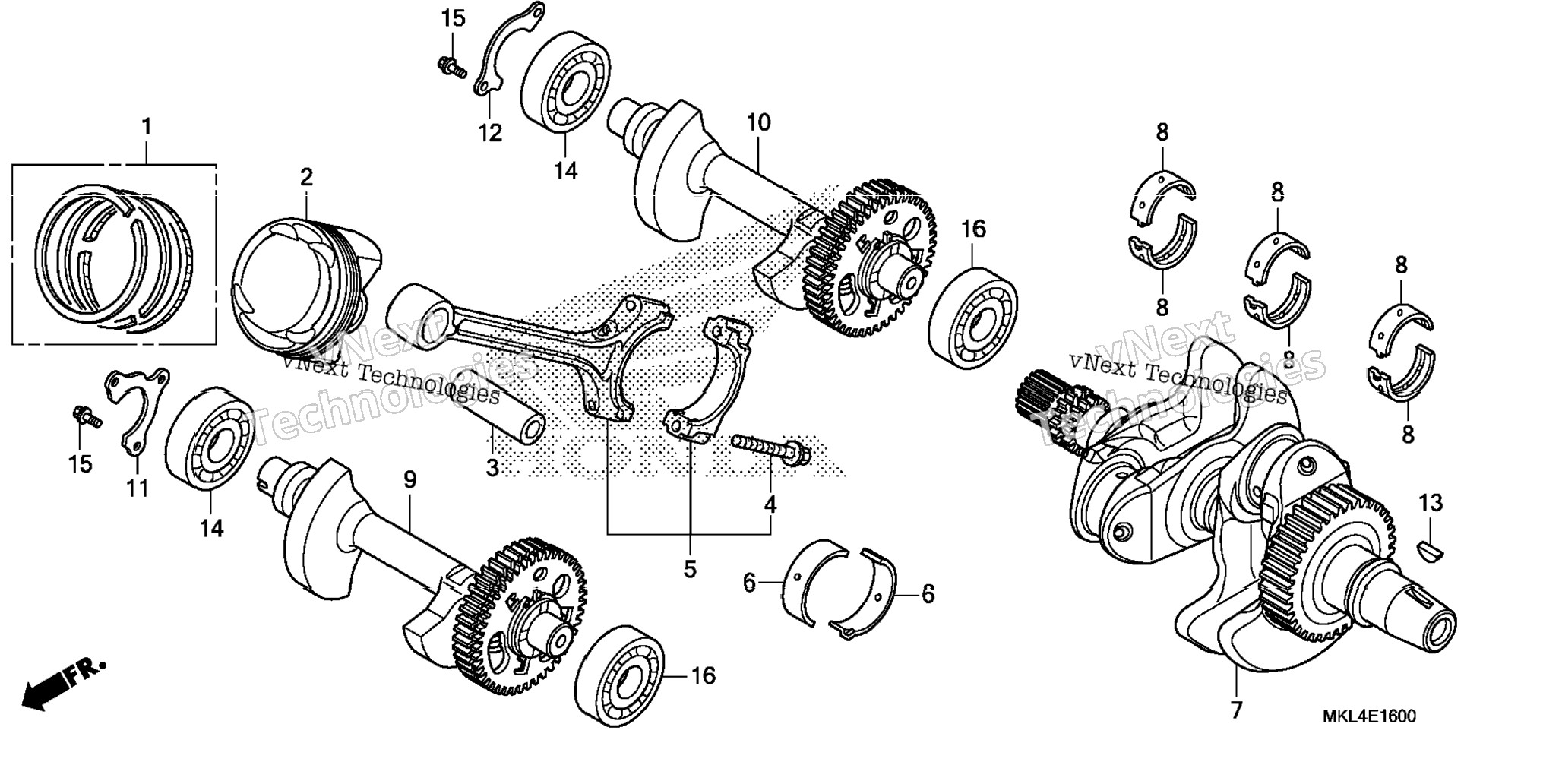

| 1 | 13021-MJL-D30 | RING SET (O.S. 0.25) (Optional). | 2 шт. | — | |
|
| 1 | 13011-MJH-305 | RING SET (STD) | 2 шт. | — | |
|
| 2 | 13101-MJH-Y00 | PISTON | 2 шт. | — | |
|
| 2 | 13102-MJL-D30 | PISTON (O.S. 0.25) (Optional). | 2 шт. | — | |
|
| 3 | 13111-PWA-000 | PIN, PISTON | 2 шт. | — | |
|
| 4 | 13204-PWA-003 | BOLT, CONNECTING ROD | 4 шт. | — | |
|
| 5 | 13210-RB0-000 | ROD, CONNECTING | 2 шт. | — | |
|
| 6 | 13211-PWA-003 | BEARING A, CONNECTING ROD (BLUE) (DAIDO) | 4 шт. | — | |
|
| 6 | 13212-PWA-003 | BEARING B, CONNECTING ROD (BLACK) (DAIDO) | 4 шт. | — | |
|
| 6 | 13213-PWA-003 | BEARING C, CONNECTING ROD (BROWN) (DAIDO) | 4 шт. | — | |
|
| 6 | 13214-PWA-003 | BEARING D, CONNECTING ROD (GREEN) (DAIDO) | 4 шт. | — | |
|
| 6 | 13215-PWA-003 | BEARING E, CONNECTING ROD (YELLOW) (DAIDO) | 4 шт. | — | |
|
| 6 | 13216-PWA-003 | BEARING F, CONNECTING ROD (PINK) (DAIDO) | 4 шт. | — | |
|
| 6 | 13217-PWA-003 | BEARING G, CONNECTING ROD (RED) (DAIDO) | 4 шт. | — | |
|
| 6 | 13218-PWA-003 | BEARING H, CONNECTING ROD (WHITE) (DAIDO) | 4 шт. | — | |
|
| 7 | 13300-MJL-D30 | CRANKSHAFT | 1 шт. | — | |
|
| 8 | 13313-MGS-D31 | BEARING A, CRANKSHAFT | 6 шт. | — | |
|
| 8 | 13314-MGS-D31 | BEARING B, CRANKSHAFT | 6 шт. | — | |
|
| 8 | 13315-MGS-D31 | BEARING C, CRANKSHAFT | 6 шт. | — | |
|
| 8 | 13316-MGS-D31 | BEARING D, CRANKSHAFT | 6 шт. | — | |
|
| 8 | 13317-MGS-D31 | BEARING E, CRANKSHAFT | 6 шт. | — | |
|
| 9 | 13410-MJL-D30 | SHAFT, FR. BALANCER | 1 шт. | — | |
|
| 10 | 13420-MJL-D30 | SHAFT, RR. BALANCER | 1 шт. | — | |
|
| 11 | 13481-MGS-D30 | PLATE, BALANCER BEARING SET | 1 шт. | — | |
|
| 12 | 13491-MJL-D30 | PLATE, BALANCER BEARING SET (RR) | 1 шт. | — | |
|
| 13 | 90741-413-000 | KEY, WOODRUFF KEY, SPECIAL WOODRUFF (25X18) | 1 шт. | — | |
|
| 14 | 91003-MGS-D31 | BEARING, RADIAL BALL (63/22) | 2 шт. | — | |
|
| 15 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 5 шт. | — | |
|
| 16 | 96100-62040-00 | BEARING, RADIAL BALL (6204) | 2 шт. | — | |
|
