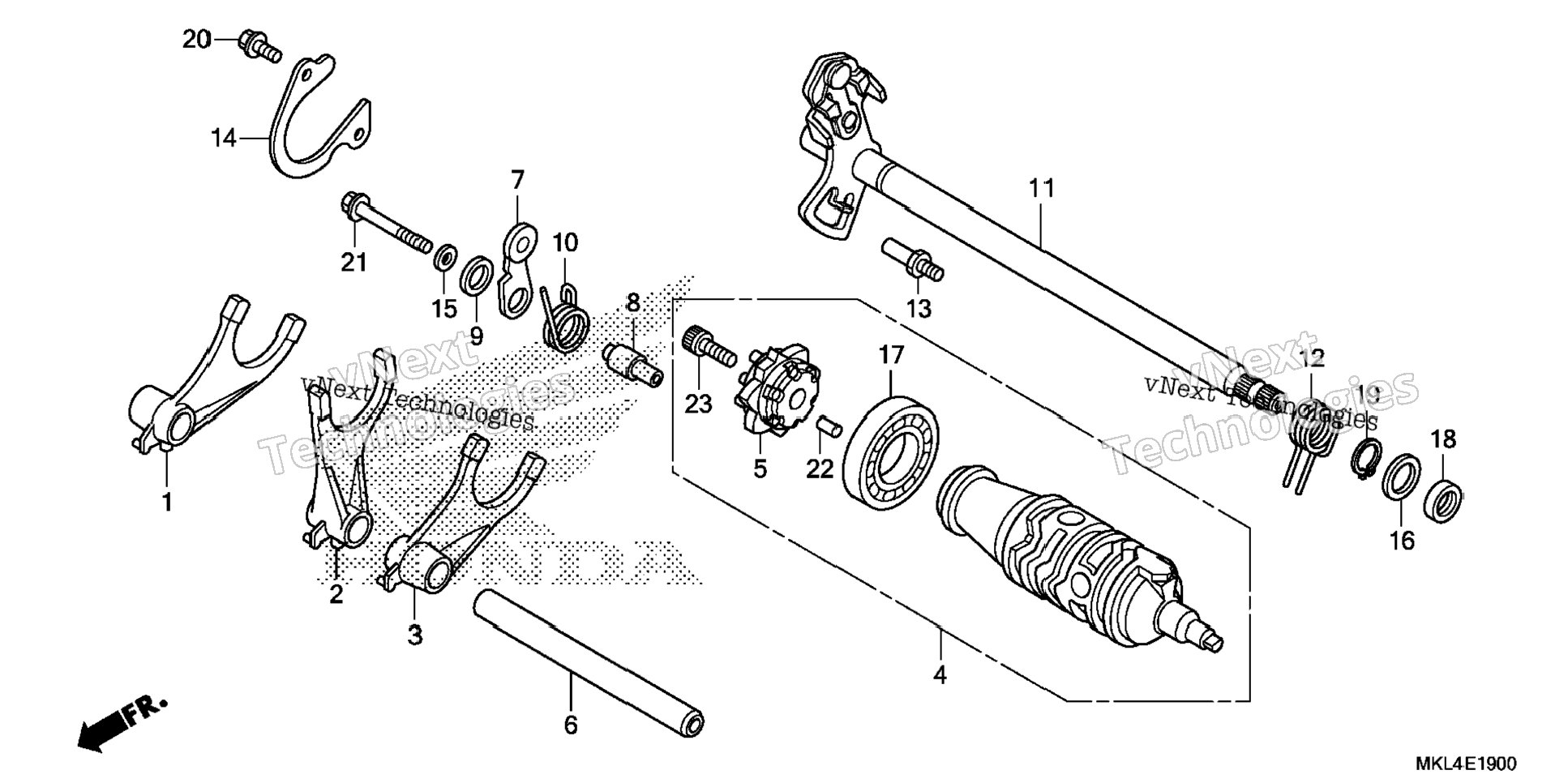

| 1 | 24211-MGS-D30 | FORK, R. GEARSHIFT | 1 шт. | — | |
|
| 2 | 24212-MGS-D30 | FORK, CENTER GEARSHIFT | 1 шт. | — | |
|
| 3 | 24213-MGS-D30 | FORK, L. GEARSHIFT | 1 шт. | — | |
|
| 4 | 24310-MJL-D30 | DRUM ASSY., GEARSHIFT | 1 шт. | — | |
|
| 5 | 24315-MAS-E00 | CENTER, SHIFT DRUM | 1 шт. | — | |
|
| 6 | 24321-MAS-000 | SHAFT, GEARSHIFT FORK | 1 шт. | — | |
|
| 7 | 24430-MGS-D30 | STOPPER, GEARSHIFT DRUM | 1 шт. | — | |
|
| 8 | 24434-MGS-D30 | COLLAR, SHIFT DRUM STOPPER PLATE | 1 шт. | — | |
|
| 9 | 24435-MGE-000 | COLLAR, DRUM STOPPER SIDE | 1 шт. | — | |
|
| 10 | 24435-MGS-D30 | SPRING, SHIFT DRUM STOPPER | 1 шт. | — | |
|
| 11 | 24610-MGS-D30 | SPINDLE, GEARSHIFT | 1 шт. | — | |
|
| 12 | 24651-MGS-D30 | SPRING, GEARSHIFT RETURN | 1 шт. | — | |
|
| 13 | 24652-HA0-000 | PIN, GEARSHIFT RETURN SPRING | 1 шт. | — | |
|
| 14 | 24655-MGS-D30 | PLATE, SHIFT DRUM BEARING SETTING | 1 шт. | — | |
|
| 15 | 90417-360-000 | WASHER, DRUM STOPPER | 1 шт. | — | |
|
| 16 | 90453-235-000 | WASHER, THRUST (16MM) | 1 шт. | — | |
|
| 17 | 91007-MGS-D21 | BEARING, RADIAL BALL (25X47X8) | 1 шт. | — | |
|
| 18 | 91201-MGS-D31 | OIL SEAL (16X24X5) | 1 шт. | — | |
|
| 19 | 94510-16000 | CIRCLIP (OUTER) (16MM) | 1 шт. | — | |
|
| 20 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 2 шт. | — | |
|
| 21 | 95701-06045-08 | BOLT, FLANGE (6X45) | 1 шт. | — | |
|
| 22 | 96220-40080 | ROLLER (4X8) | 1 шт. | — | |
|
| 23 | 96600-08020-10 | BOLT, SOCKET (8X20) | 1 шт. | — | |
|
